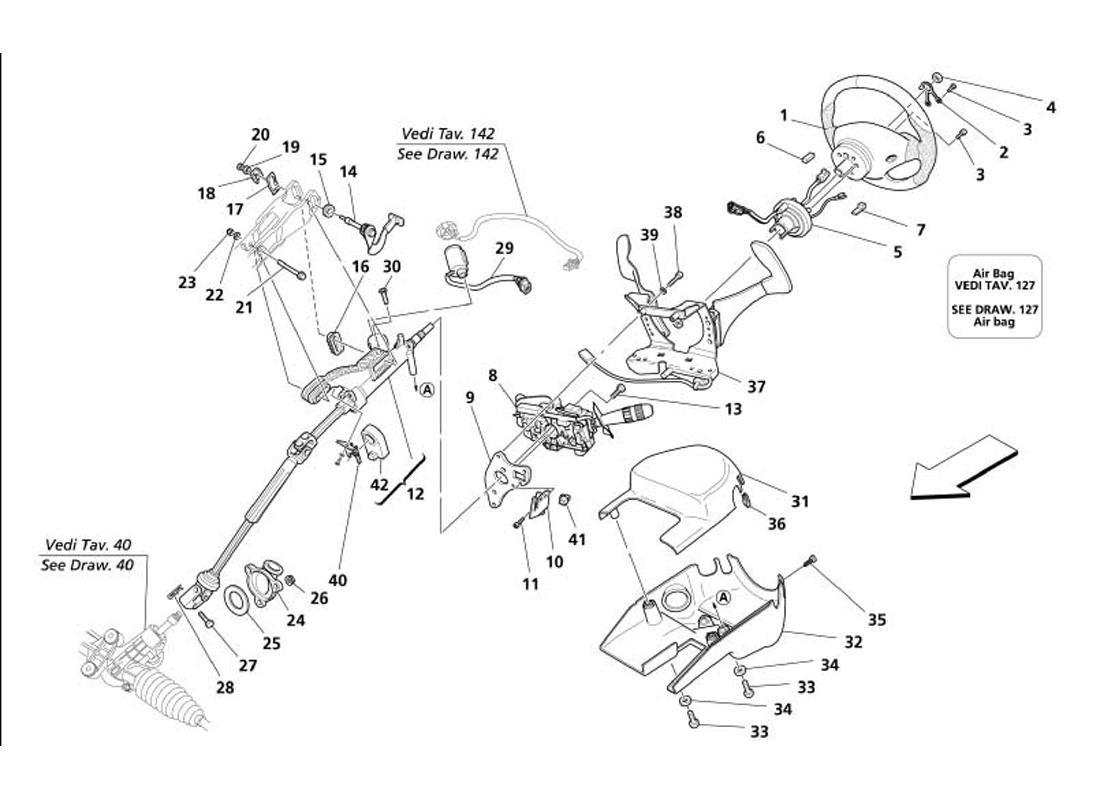

STEERING COLUMN

Go to Split View

STEERING COLUMN

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 207843 *Qty: 1 STEERING WHEEL
Standard - Black leather
$3,096.44
Location: 1 Prev | Next Part: 207843.. *Qty: 1 STEERING WHEEL
Optional - Coloured leather
Unavailable
Location: 2 Prev | Next Part: 373300338 *Qty: 1 SPRING $6.13
Location: 3 Prev | Next Part: 13271811 *Qty: 5 SCREW $0.90
Location: 4 Prev | Next Part: 56249 *Qty: 1 NUT $3.68
Location: 5 Prev | Next Part: 373301210 *Qty: 1 SPIRAL CONTACT $568.51
Location: 6 Prev | Next Part: 163816 *Qty: 1 RESISTOR FOR SPIRAL CONTACT $31.77
Location: 7 Prev | Next Part: 135355 *Qty: 1 CONNECTOR $0.90
Location: 8 Prev | Next Part: 185384 *Qty: 1 UNHOOK DEVIATION ASSEMBLY
Standard - Not for USA e CDN
$388.96
Location: 8 Prev | Next Part: 183025 *Qty: 1 UNHOOK DEVIATION ASSEMBLY
Optional - Cruise Control - Standard for cars USA and CDN
$497.27
Location: 9 Prev | Next Part: 186967 *Qty: 1 BRACKET $15.27
Location: 10 Prev | Next Part: 190997 *Qty: 1 CRUISE CONNECTORS FIXING BRACKET $15.27
Location: 11 Prev | Next Part: 13273911 *Qty: 2 SCREW $0.90
Location: 12 Prev | Next Part: 195590 *Qty: 1 COMPLETE STEERING COLUMN $1,555.85
Location: 13 Prev | Next Part: 14072510 *Qty: 2 SCREW $0.90
Location: 14 Prev | Next Part: 151119000 *Qty: 1 STEERING COLUMN LOCKING LEVER $77.65
Location: 15 Prev | Next Part: 60596509 *Qty: 2 SPACER $7.40
Location: 16 Prev | Next Part: 60605695 *Qty: 1 FIXED TENSION $3.88
Location: 17 Prev | Next Part: 60596513 *Qty: 1 SPRING $2.33
Location: 18 Prev | Next Part: 60605693 *Qty: 1 MOBILE GUIDE SHOE $3.88
Location: 19 Prev | Next Part: 60612341 *Qty: 1 SPECIAL NUT $6.13
Location: 20 Prev | Next Part: 387800325 *Qty: 1 NUT $1.55
Location: 21 Prev | Next Part: 18751924 *Qty: 1 SCREW $6.90
Location: 22 Prev | Next Part: 11193874 *Qty: 1 WASHER $0.90
Location: 23 Prev | Next Part: 16104421 *Qty: 1 NUT Superseded
Location: 24 Prev | Next Part: 387800437 *Qty: 1 BOOT SUPPORTING BODY $12.16
Location: 25 Prev | Next Part: 377800438 *Qty: 1 GASKET $4.57
Location: 26 Prev | Next Part: 14058411 *Qty: 3 NUT Superseded
Location: 27 Prev | Next Part: 387800431 *Qty: 1 SCREW $7.68
Location: 28 Prev | Next Part: 58841309 *Qty: 1 SAFETY CLIP $5.35
Location: 29 Prev | Next Part: 82484559 *Qty: 1 STEERING LOCK
Not for USA and CDN
$94.57
Location: 30 Prev | Next Part: 60811485 *Qty: 1 SPECIAL SCREW $7.68
Location: 31 Prev | Next Part: 66192300 *Qty: 1 STEERING COLUMN UPPER SHIELD $149.50
Location: 32 Prev | Next Part: 66192500 *Qty: 1 STEERING COLUMN LOWER SHIELD $160.16
Location: 33 Prev | Next Part: 13218027 *Qty: 5 SCREW $6.13
Location: 34 Prev | Next Part: 13577707 *Qty: 5 WASHER $0.90
Location: 35 Prev | Next Part: 15915877 *Qty: 2 SCREW $0.90
Location: 36 Prev | Next Part: 67110400 *Qty: 2 BRACKET $1.55
Location: 37 Prev | Next Part: 207613 *Qty: 1 GEARBOX CONTROL LEVERS ASSEMBLY Unavailable
Location: 38 Prev | Next Part: 13274611 *Qty: 3 SCREW $0.90
Location: 39 Prev | Next Part: 12601174 *Qty: 3 WASHER $0.90
Location: 40 Prev | Next Part: 197119 *Qty: 1 CLIP Unavailable
Location: 41 Prev | Next Part: 188535 *Qty: 1 CONNECTOR
Valid for standard unhook deviation
$3.02
Location: 42 Prev | Next Part: 190405 *Qty: 1 STEERING ANGLE SENSOR $533.35

* Quantity shown indicates the number of pieces used in the diagram.
