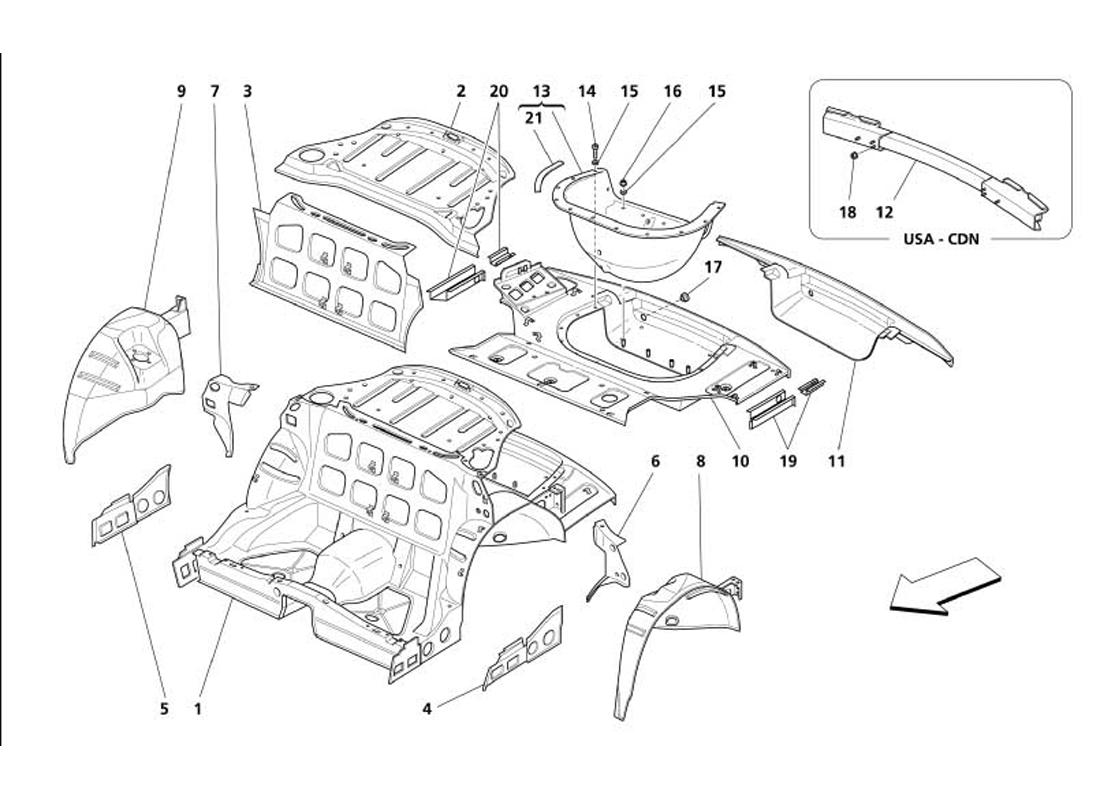

REAR STRUCTURE

Go to Split View

REAR STRUCTURE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 980138004 *Qty: 1 COMPLETE REAR FLOOR
Not for USA, CDN and AUS
$6,470.63
Location: 1 Prev | Next Part: 980138020 *Qty: 1 COMPLETE REAR FLOOR
Valid for USA, CDN and AUS
$6,660.43
Location: 2 Prev | Next Part: 980138002 *Qty: 1 COMPLETE REAR UNDER WINDOW PANEL
Not for USA, CDN and AUS
$179.37
Location: 2 Prev | Next Part: 980138019 *Qty: 1 COMPLETE REAR UNDER WINDOW PANEL
Valid for USA, CDN and AUS
$245.80
Location: 3 Prev | Next Part: 66313400 *Qty: 1 COMPLETE REAR PANEL $191.63
Location: 4 Prev | Next Part: 66608400 *Qty: 1 L.H. SPAR REAR DIAPHRAGM $29.72
Location: 5 Prev | Next Part: 66608300 *Qty: 1 R.H. SPAR REAR DIAPHRAGM $29.72
Location: 6 Prev | Next Part: 66413300 *Qty: 1 L.H. LATERAL INSERT FOR REAR PANEL $30.71
Location: 7 Prev | Next Part: 66245600 *Qty: 1 R.H. LATERAL INSERT FOR REAR PANEL $30.71
Location: 8 Prev | Next Part: 980138017 *Qty: 1 COMPLETE L.H. INNER REAR WHEEL HOUSE $534.30
Location: 9 Prev | Next Part: 980138018 *Qty: 1 COMPLETE R.H. INNER REAR WHEEL HOUSE $534.30
Location: 10 Prev | Next Part: 980138003 *Qty: 1 COMPLETE TRUNK FLOOR $952.48
Location: 11 Prev | Next Part: 980001060 *Qty: 1 COMPLETE REAR WALL $191.63
Location: 12 Prev | Next Part: 68361200 *Qty: 1 REAR BULL BAR
Valid for USA
$2,030.00
Location: 12 Prev | Next Part: 68364100 *Qty: 1 REAR BULL BAR
Valid for CDN
Call
Location: 13 Prev | Next Part: 67245900 *Qty: 1 COMPLETE WHEEL HOUSING $395.14
Location: 14 Prev | Next Part: 13274611 *Qty: 13 SCREW $0.90
Location: 15 Prev | Next Part: 12638170 *Qty: 17 WASHER $0.90
Location: 16 Prev | Next Part: 14058311 *Qty: 4 NUT $0.90
Location: 17 Prev | Next Part: 14506987 *Qty: 1 PLUG $3.90
Location: 18 Prev | Next Part: 14040715 *Qty: 6 NUT
Valid for USA and CDN
$0.90
Location: 19 Prev | Next Part: 980138023 *Qty: 1 COMPLETE L.H. SIDE RAIL $108.65
Location: 20 Prev | Next Part: 980138024 *Qty: 1 COMPLETE R.H. SIDE RAIL $114.33
Location: 21 Prev | Next Part: 66134100 *Qty: 1 WHEEL HOUSING GASKET $161.85

* Quantity shown indicates the number of pieces used in the diagram.
