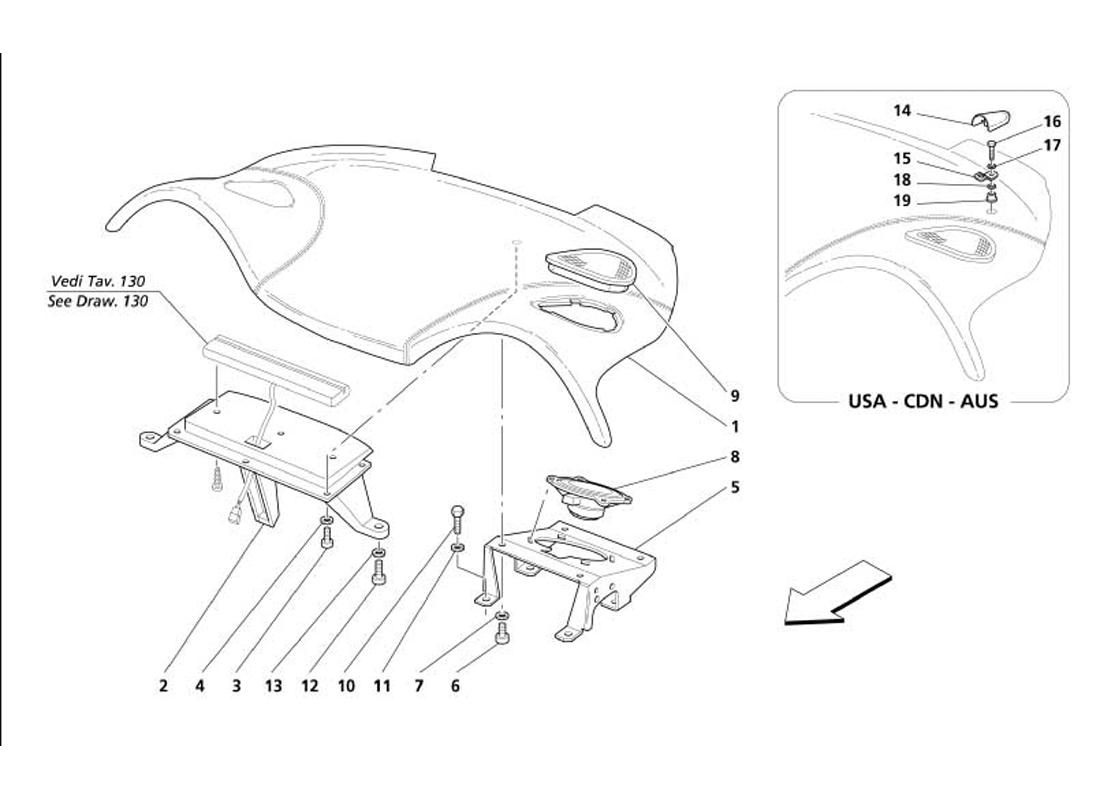

INNER COVERINGS - REAR UNDER WINDOW PANEL

Go to Split View

INNER COVERINGS - REAR UNDER WINDOW PANEL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 9810083.. *Qty: 1 REAR UNDER WINDOW PANEL
Not for USA, CDN and AUS
Call
Location: 1 Prev | Next Part: 9810084.. *Qty: 1 REAR UNDER WINDOW PANEL
Valid for USA, CDN and AUS
Call
Location: 2 Prev | Next Part: 9810085.. *Qty: 1 CENTRAL REAR LAMP SUPPORTING BRACKET Call
Location: 3 Prev | Next Part: 13273911 *Qty: 5 SCREW $0.90
Location: 4 Prev | Next Part: 12638121 *Qty: 5 WASHER Call
Location: 5 Prev | Next Part: 388300288 *Qty: 1 L.H. LOUD SPEAKER FIXING BRACKET $212.24
Location: 5 Prev | Next Part: 67707400 *Qty: 1 R.H. LOUD SPEAKER FIXING BRACKET Call
Location: 6 Prev | Next Part: 13273824 *Qty: 8 SCREW $0.90
Location: 7 Prev | Next Part: 12601174 *Qty: 8 WASHER $0.90
Location: 8 Prev | Next Part: 185974 *Qty: 2 LOUD SPEAKER WOOFER
Optional - HI FI system
$114.33
Location: 8 Prev | Next Part: 184106 *Qty: 2 LOUD SPEAKER WOOFER
Standard
Call
Location: 9 Prev | Next Part: 388300273 *Qty: 1 L.H. LOUD-SPEAKER PLATE $29.85
Location: 9 Prev | Next Part: 388300272 *Qty: 1 R.H. LOUD-SPEAKER PLATE $29.85
Location: 10 Prev | Next Part: 10902024 *Qty: 8 SCREW $0.90
Location: 11 Prev | Next Part: 12620474 *Qty: 8 WASHER $0.90
Location: 12 Prev | Next Part: 10977521 *Qty: 1 SCREW $0.21
Location: 12 Prev | Next Part: 13274011 *Qty: 2 SCREW $0.90
Location: 13 Prev | Next Part: 12624101 *Qty: 3 WASHER $0.90
Location: 14 Prev | Next Part: 67235400 *Qty: 2 UPPER COVER
Valid for USA, CDN and AUS
$8.71
Location: 15 Prev | Next Part: 66154400 *Qty: 2 BELT CONNECTION BRACKET
Valid for USA, CDN and AUS
$5.52
Location: 16 Prev | Next Part: 66535800 *Qty: 2 SCREW
Valid for USA, CDN and AUS
$1.16
Location: 17 Prev | Next Part: 12601374 *Qty: 2 WASHER
Valid for USA, CDN and AUS
$0.90
Location: 18 Prev | Next Part: 14496527 *Qty: 2 WASHER
Valid for USA, CDN and AUS
$1.26
Location: 19 Prev | Next Part: 67363400 *Qty: 2 SPACER
Valid for USA, CDN and AUS
Call

* Quantity shown indicates the number of pieces used in the diagram.
