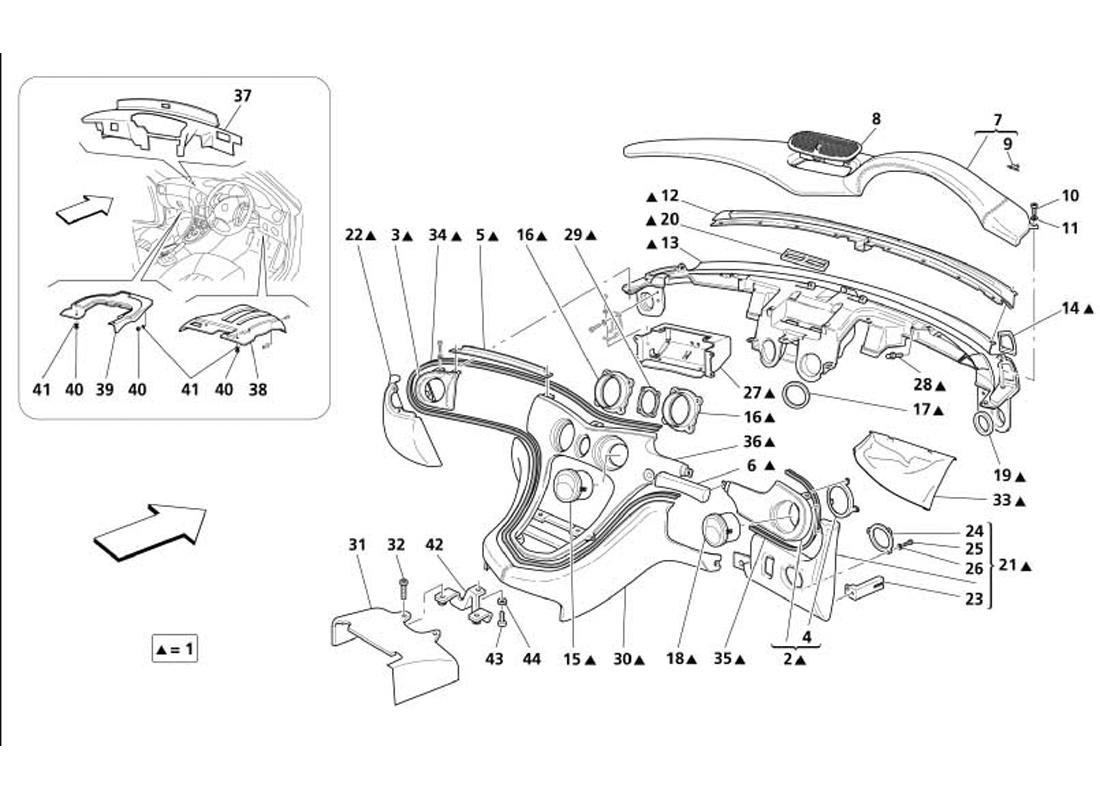

DASHBOARD DRAWER

Go to Split View

DASHBOARD DRAWER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 382300403 *Qty: 1 DASHBOARD GLOVE BOX FRAME
Not for RHD
$148.27
Location: 1 Prev | Next Part: 382310403 *Qty: 1 DASHBOARD GLOVE BOX FRAME
Valid for RHD
$328.05
Location: 2 Prev | Next Part: 682878.. *Qty: 1 COMPLETE GLOVE BOX SHUTTER
Not for RHD - For order specify car number
Unavailable
Location: 2 Prev | Next Part: 683438.. *Qty: 1 COMPLETE GLOVE BOX SHUTTER
Valid for RHD - For order specify car number
Unavailable
Location: 3 Prev | Next Part: 382300806 *Qty: 1 COMPLETE LOCK
Not for RHD
$88.00
Location: 3 Prev | Next Part: 382310598 *Qty: 1 COMPLETE LOCK
Valid for RHD
$398.59
Location: 4 Prev | Next Part: 15957107 *Qty: 3 SCREW $0.90
Location: 5 Prev | Next Part: 13273977 *Qty: 1 SCREW $0.90
Location: 6 Prev | Next Part: 10519378 *Qty: 1 WASHER $0.90
Location: 7 Prev | Next Part: 382300381 *Qty: 1 GAS SPRING $106.29
Location: 8 Prev | Next Part: 382300382 *Qty: 2 SPECIAL SCREW $21.74
Location: 9 Prev | Next Part: 382300383 *Qty: 2 PLASTIC WASHER $4.57
Location: 10 Prev | Next Part: 67695500 *Qty: 1 DASHBOARD GLOVE BOX CONTAINER FRAME
Standard - Not for RHD
$52.80
Location: 10 Prev | Next Part: 67695600 *Qty: 1 DASHBOARD GLOVE BOX CONTAINER FRAME
Standard - Valid for RHD
Unavailable
Location: 10 Prev | Next Part: 68346600 *Qty: 1 DASHBOARD GLOVE BOX CONTAINER FRAME
Optional - Telephone GSM and GPS - Not for CDN, RHD and J
$78.60
Location: 10 Prev | Next Part: 68346700 *Qty: 1 DASHBOARD GLOVE BOX CONTAINER FRAME
Optional - Telephone GSM and GPS - Valid for GB
$84.12
Location: 11 Prev | Next Part: 13273977 *Qty: 4 SCREW $0.90
Location: 12 Prev | Next Part: 10519378 *Qty: 4 WASHER $0.90
Location: 13 Prev | Next Part: 382300202 *Qty: 1 LOCK STRIKER $17.95
Location: 14 Prev | Next Part: 13273977 *Qty: 2 SCREW $0.90
Location: 15 Prev | Next Part: 10519378 *Qty: 2 WASHER $0.90
Location: 16 Prev | Next Part: 13273977 *Qty: 7 SCREW $0.90
Location: 17 Prev | Next Part: 10519378 *Qty: 7 WASHER $0.90
Location: 18 Prev | Next Part: 15957107 *Qty: 3 SCREW $0.90
Location: 19 Prev | Next Part: 382300419 *Qty: 1 BRACKET $7.07
Location: 20 Prev | Next Part: 60616620 *Qty: 2 RUBBER $0.90
Location: 21 Prev | Next Part: 13273824 *Qty: 2 SCREW $0.90
Location: 22 Prev | Next Part: 12637821 *Qty: 2 WASHER $3.32
Location: 23 Prev | Next Part: 382300430 *Qty: 2 ADJUSTMENT PIN $13.63
Location: 24 Prev | Next Part: 382300116 *Qty: 1 BOX HINGE $224.32
Location: 25 Prev | Next Part: 716338000 *Qty: 1 SIDE LAMP $140.46
Location: 26 Prev | Next Part: 382300452 *Qty: 3 CLIP $0.90
Location: 27 Prev | Next Part: 68157600 *Qty: 1 GRANSPORT EMBLEM $13.98
Location: 28 Prev | Next Part: 67417300 *Qty: 3 CAR EMBLEM FIXING PLATE $0.90

* Quantity shown indicates the number of pieces used in the diagram.
