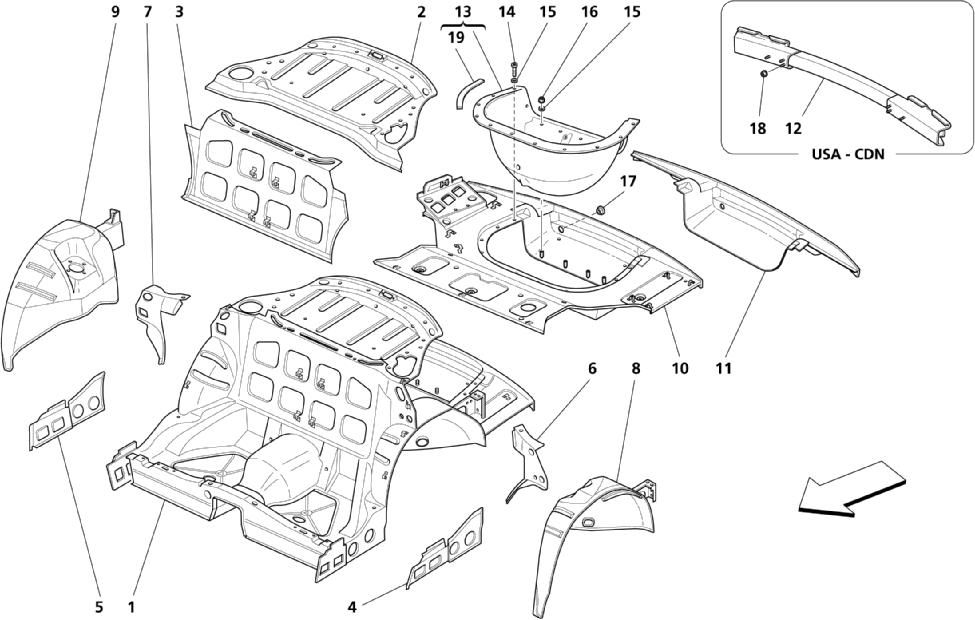

REAR STRUCTURE

Go to Split View

REAR STRUCTURE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 980138020 *Qty: 1 COMPLETE REAR FLOOR
- Valid for USA, CDN and AUS
$6,660.43
Location: 1 Prev | Next Part: 980138004 *Qty: 1 COMPLETE REAR FLOOR
- Not for USA, CDN and AUS
$6,470.63
Location: 2 Prev | Next Part: 980138019 *Qty: 1 COMPLETE REAR UNDER WINDOW PANEL
- Valid for USA, CDN and AUS
$245.80
Location: 2 Prev | Next Part: 980138002 *Qty: 1 COMPLETE REAR UNDER WINDOW PANEL
- Not for USA, CDN and AUS
$179.37
Location: 3 Prev | Next Part: 66313400 *Qty: 1 COMPLETE REAR PANEL $191.63
Location: 4 Prev | Next Part: 66608400 *Qty: 1 L.H. SPAR REAR DIAPHRAGM $29.72
Location: 5 Prev | Next Part: 66608300 *Qty: 1 R.H. SPAR REAR DIAPHRAGM $29.72
Location: 6 Prev | Next Part: 66413300 *Qty: 1 L.H. LATERAL INSERT FOR REAR PANEL $30.71
Location: 7 Prev | Next Part: 66245600 *Qty: 1 R.H. LATERAL INSERT FOR REAR PANEL $30.71
Location: 8 Prev | Next Part: 980138017 *Qty: 1 COMPLETE L.H. INNER REAR WHEEL HOUSE $534.30
Location: 9 Prev | Next Part: 980138018 *Qty: 1 COMPLETE R.H. INNER REAR WHEEL HOUSE $534.30
Location: 10 Prev | Next Part: 980138003 *Qty: 1 COMPLETE TRUNK FLOOR $952.48
Location: 11 Prev | Next Part: 980001060 *Qty: 1 COMPLETE REAR WALL $191.63
Location: 12 Prev | Next Part: 67021800 *Qty: 1 REAR BULL BAR
- Valid for CDN
$700.90
Location: 12 Prev | Next Part: 66300700 *Qty: 1 REAR BULL BAR
- Valid for USA
$646.35
Location: 13 Prev | Next Part: 66491000 *Qty: 1 COMPLETE WHEEL HOUSING
- Valid till car Ass. Nr. 9813
$476.48
Location: 13 Prev | Next Part: 67245900 *Qty: 1 COMPLETE WHEEL HOUSING
- Valid from car Ass. Nr. 9814
$395.14
Location: 14 Prev | Next Part: 13274611 *Qty: 13 SCREW $0.90
Location: 15 Prev | Next Part: 12638170 *Qty: 17 WASHER $0.90
Location: 16 Prev | Next Part: 14058311 *Qty: 4 NUT $0.90
Location: 17 Prev | Next Part: 14506987 *Qty: 1 PLUG $3.90
Location: 18 Prev | Next Part: 14040715 *Qty: 6 NUT
- Valid for USA and CDN
$0.90
Location: 19 Prev | Next Part: 66134100 *Qty: 1 WHEEL HOUSING GASKET $161.85

* Quantity shown indicates the number of pieces used in the diagram.
