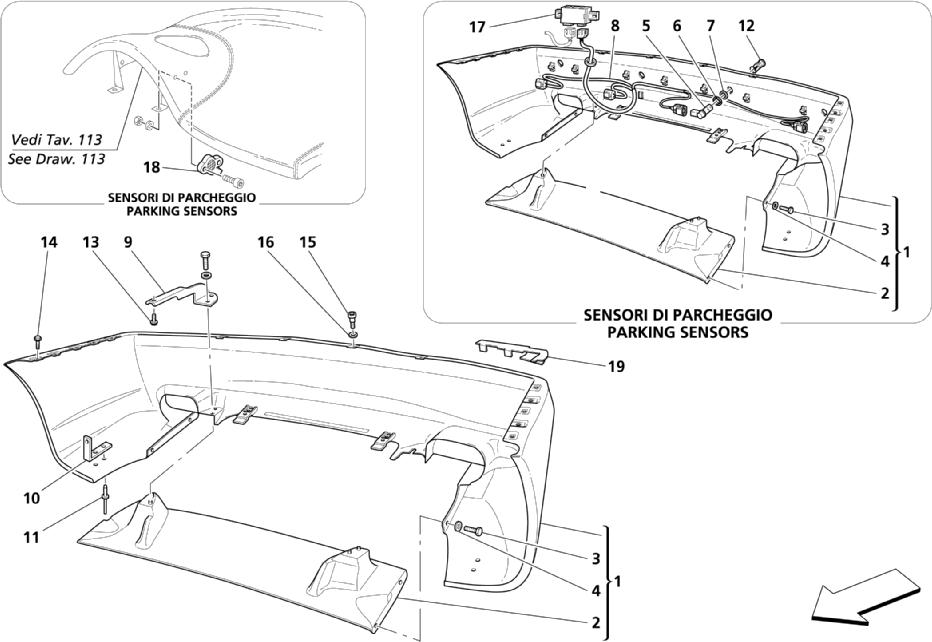

REAR BUMPER

Go to Split View

REAR BUMPER

Location Part # Quantity* Description Price Add To Cart
1 980001068 1 COMPLETE REAR BUMPER
- Optional - Parking sensor - Not for USA and CDN 		$1,362.54
1 980001070 1 COMPLETE REAR BUMPER
- Optional - Parking sensor - Valid for USA and CDN 		$1,802.64
1 980001069 1 COMPLETE REAR BUMPER
- Standard - Valid for USA and CDN 		$1,485.96
1 980001067 1 COMPLETE REAR BUMPER
- Standard - Not for USA and CDN 		$1,201.76
2 980001048 1 SPOYLER $479.69
3 14305321 4 SCREW Unavailable
4 12648221 5 WASHER $23.47
5 184929 4 PARKING SENSOR
- Optional - Parking sensor 		$284.20
6 187677 4 RING NUT
- Optional - Parking sensor 		$112.34
7 187678 4 SPACER
- Optional - Parking sensor 		$32.13
8 186662 1 BRIDLE FOR PARKING SENSOR
- Optional - Parking sensor - Not for USA and CDN 		$149.07
8 186663 1 SIDE MARKERS AND PARKING SENSOR CABLE
- Optional - Parking sensor - Valid for USA and CDN 		$105.24
9 66605400 1 L.H. BRACKET $34.69
9 66605300 1 R.H. BRACKET $35.55
10 66494900 2 BRACKET $16.06
11 7765139 4 RIVET $4.83
12 187680 2 INNER SLEEVE
- Optional - Parking sensor 		$43.20
12 187679 2 OUTER SLEEVE
- Optional - Parking sensor 		$43.20
13 16288321 2 SCREW Unavailable
14 7739729 6 SCREW $3.29
15 46419734 4 SCREW Superseded
16 312552529 4 GASKET Unavailable
17 193437 1 PARKING SENSOR CONTROL UNIT
- Optional - Parking sensor 		$640.16
18 184928 1 BUZZER
- Optional - Parking sensor 		Unavailable
19 382500540 1 R.H. PLATE $81.63
19 382500541 1 L.H. PLATE $81.63

* Quantity shown indicates the number of pieces used in the diagram.
