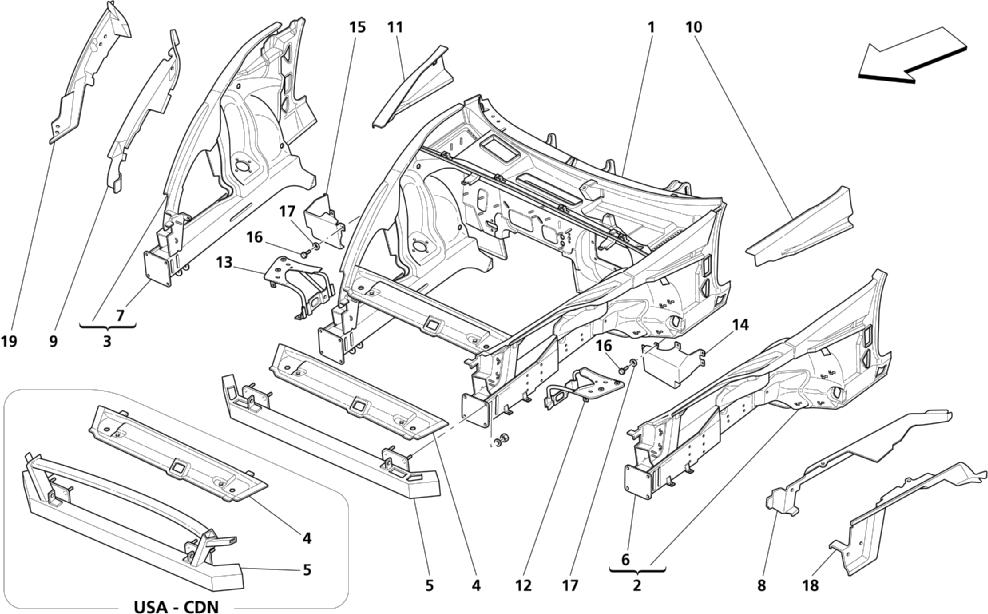

FRONT STRUCTURE

Go to Split View

FRONT STRUCTURE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 980001153 *Qty: 1 COMPLETE FRONT FRAME
- Valid for RHD
$5,440.40
Location: 1 Prev | Next Part: 980001169 *Qty: 1 COMPLETE FRONT FRAME
- Valid for USA and CDN
$5,001.92
Location: 1 Prev | Next Part: 980001050 *Qty: 1 COMPLETE FRONT FRAME
- Not for USA, CDN and RHD
$4,774.56
Location: 2 Prev | Next Part: 980001051 *Qty: 1 L.H. FRONT INNER LATERAL FRAME $2,078.72
Location: 3 Prev | Next Part: 980001052 *Qty: 1 R.H. FRONT INNER LATERAL FRAME $1,688.96
Location: 4 Prev | Next Part: 980001049 *Qty: 1 COMPLETE FRONT CROSS MEMBER
- Not for USA and CDN
$148.27
Location: 4 Prev | Next Part: 980001170 *Qty: 1 COMPLETE FRONT CROSS MEMBER
- Valid for USA and CDN
$167.27
Location: 5 Prev | Next Part: 66244400 *Qty: 1 FRONT BULL BAR
- Not for USA and CDN
$470.96
Location: 5 Prev | Next Part: 66244500 *Qty: 1 FRONT BULL BAR
- Valid for USA
$787.64
Location: 5 Prev | Next Part: 67015200 *Qty: 1 FRONT BULL BAR
- Valid for CDN
$765.05
Location: 6 Prev | Next Part: 980001053 *Qty: 1 L.H. FRONT SPAR $417.37
Location: 7 Prev | Next Part: 980001054 *Qty: 1 R.H. FRONT SPAR $417.37
Location: 8 Prev | Next Part: 980001055 *Qty: 1 L.H. FRONT LATERAL FRAME $371.90
Location: 9 Prev | Next Part: 980001056 *Qty: 1 R.H. FRONT LATERAL FRAME $371.90
Location: 10 Prev | Next Part: 66305400 *Qty: 1 L.H. REAR LATERAL FRAME $85.07
Location: 11 Prev | Next Part: 66305300 *Qty: 1 R.H. REAR LATERAL FRAME $85.07
Location: 12 Prev | Next Part: 65965000 *Qty: 1 L.H. HEADLIGHT SUPPORTING BRAKET $365.81
Location: 13 Prev | Next Part: 65964900 *Qty: 1 R.H. HEADLIGHT SUPPORTING BRAKET $362.36
Location: 14 Prev | Next Part: 66248200 *Qty: 1 L.H. LONGITUDINAL MEMBER FRONT REINFORCEMENT $45.15
Location: 15 Prev | Next Part: 66248100 *Qty: 1 R.H. LONGITUDINAL MEMBER FRONT REINFORCEMENT $45.15
Location: 16 Prev | Next Part: 10902087 *Qty: 13 SCREW $1.11
Location: 17 Prev | Next Part: 12644477 *Qty: 13 WASHER $0.90
Location: 18 Prev | Next Part: 66305200 *Qty: 1 L.H. FRONT LATERAL FRAME $685.58
Location: 19 Prev | Next Part: 66305100 *Qty: 1 R.H. FRONT LATERAL FRAME $3,077.48

* Quantity shown indicates the number of pieces used in the diagram.
