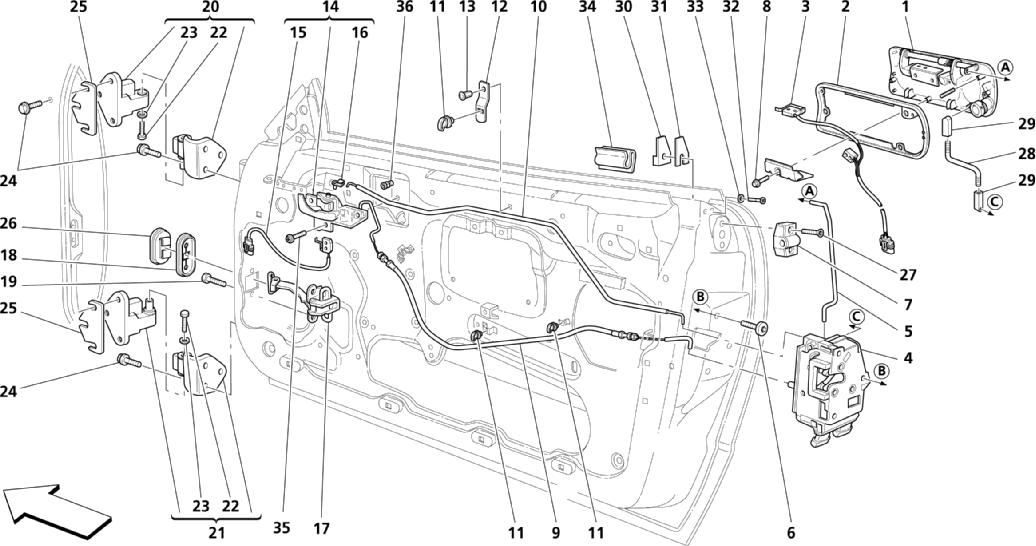

DOORS - OPENING CONTROL AND HINGES

Back to Maserati Coupe 2002+ components

Location	Part #	Quantity*	Description	Price	Add To Cart
1	980000917	1	L.H. DOOR OUTSIDE HANDLE	$470.96
1	980000918	1	R.H. DOOR OUTSIDE HANDLE	$470.96
2	980000966	1	R.H. HANDLE GASKET	$61.77
2	980000965	1	L.H. HANDLE GASKET	$80.25
3	980000963	1	L.H. MICROSWITCH AND CABLE	$339.42
3	980000964	1	R.H. MICROSWITCH AND CABLE	$251.72
4	67294900	1	L.H. DOOR LOCK		Unavailable
4	67294800	1	R.H. DOOR LOCK		Unavailable
5	384500395	1	L.H. DOOR HANDLE LOCK TIE ROD	$12.34
5	384500396	1	R.H. DOOR HANDLE LOCK TIE ROD	$12.59
6	46401658	6	SCREW	$3.37
7	60594692	2	FLEXIBLEBLOCK	$39.34
8	16284914	2	SCREW	$0.90
9	67237100	1	L.H. DOOR INSIDE RELEASE BOWDEN - Valid from car Ass. Nr. 8467	$49.69
9	66132300	1	R.H. DOOR INSIDE RELEASE BOWDEN - Valid till car Ass. Nr. 8466	$40.38
9	67237000	1	R.H. DOOR INSIDE RELEASE BOWDEN - Valid from car Ass. Nr. 8467	$48.66
9	66424300	1	L.H. DOOR INSIDE RELEASE BOWDEN - Valid till car Ass. Nr. 8466	$40.38
10	66132500	1	L.H. DOOR SAFETY TIE ROD	$32.16
10	66132400	1	R.H. DOOR SAFETY TIE ROD	$29.07
11	14572587	8	CABLES RETAINING CLIP	$2.33
12	66061400	4	BRACKET	$3.02
13	15624311	6	RIVET	$5.93
14	67236800	1	COMPLETE R.H. DOOR INSIDE HANDLE - Valid from car Ass. Nr. 8467	$1,307.93
14	388300275	1	COMPLETE L.H. DOOR INSIDE HANDLE - Valid till car Ass. Nr. 8466	$126.49
14	67236900	1	COMPLETE L.H. DOOR INSIDE HANDLE - Valid from car Ass. Nr. 8467	$1,307.93
14	388300274	1	COMPLETE R.H. DOOR INSIDE HANDLE - Valid till car Ass. Nr. 8466		Unavailable
15	388300615	2	SWITCH	$90.62
16	82377992	2	CABLES RETAINING CLIP		Unavailable
17	60624357	2	STOP TIE ROD		Unavailable
18	60624899	2	L.H. GASKET FOR STOP TIE ROD	$3.37
19	11620021	4	SCREW	$3.37
20	384500113	1	COMPLETE L.H. UPPER HINGE	$116.75
20	384500114	1	COMPLETE R.H. UPPER HINGE	$169.83
21	384500117	1	COMPLETE L.H. LOWER HINGE		Unavailable
21	384500118	1	COMPLETE R.H. LOWER HINGE	$2,260.41
22	60584861	4	SCREW	$5.26
23	82489367	4	WASHER	$3.02
24	11586024	24	SCREW	$7.77
25	382500536	8	SHIMMING PLATE	$142.36
26	60624898	2	R.H. GASKET FOR STOP TIE ROD	$3.37
27	67420200	4	SCREW	$2.84
28	384500390	2	TIE ROD	$8.61
29	53451352	4	JOINT		Unavailable
30	387700405	1	L.H. REAR GUIDE SHOE	$12.69
30	387700404	1	R.H. REAR GUIDE SHOE	$10.88
31	387700406	2	THICKNESS	$27.45
32	13271617	2	SCREW		Unavailable
33	14496207	2	WASHER		Unavailable
34	66133300	6	CLIP	$5.01
35	15689907	6	SCREW	$2.33
36	60585246	6	NUT SCREW		Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
