Intercooler

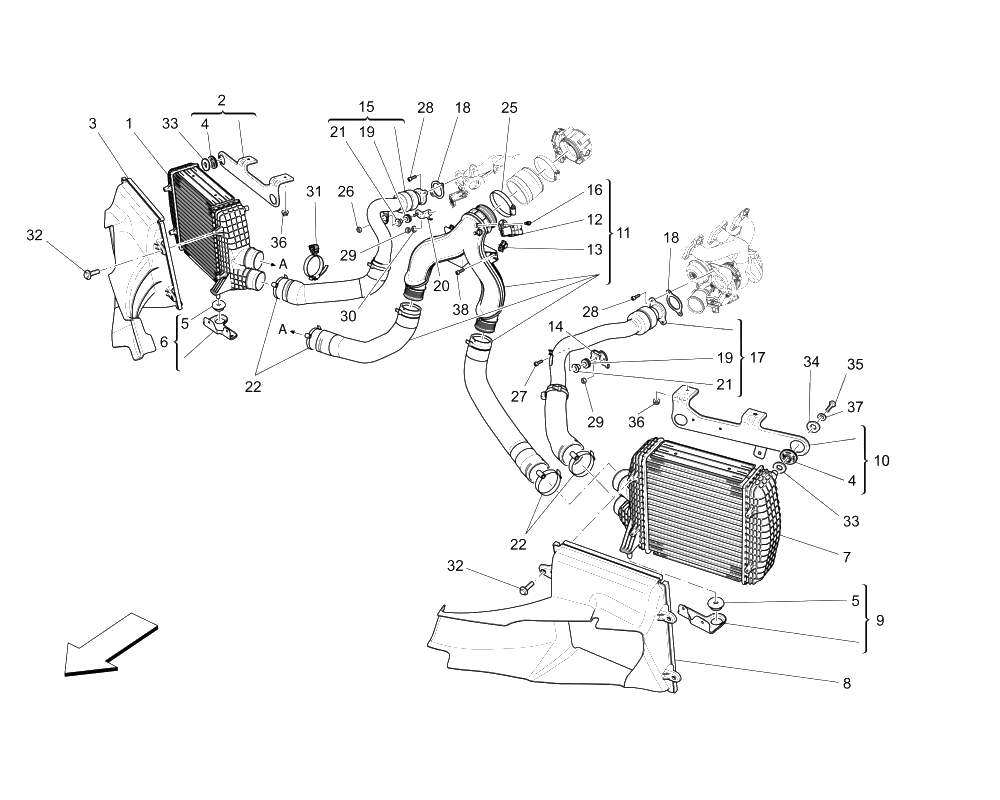

Location Part # Quantity* Description Price Add To Cart
1 670035635 1 R.H. INTERCOOLER $583.02
2 670001349 1 RH BRACKET $36.58
3 670004139 1 RH SIDE AIR DUCT $88.51
4 675000201 4 FLEXIBLE PAD $9.92
5 670009556 2 BUSHING $3.11
6 670037757 1 RH LOWER BRACKET ASSEMBLY $26.07
7 670035636 1 L.H. INTERCOOLER $583.02
8 670004140 1 LH SIDE AIR DUCT $93.87
9 670037759 1 LH LOWER BRACKET ASSEMBLY $26.07
10 670001348 1 LH BRACKET $36.58
11 670001350 1 AIR INLET SLEEVE ASSEMBLY $568.40
12 675000248 1 PRESSURE TRANSMITTER $55.54
13 670006739 2 CLIP $2.33
14 670009370 1 LH BRACKET $11.47
15 670039059 1 SLEEVE FROM TURBINE TO RH INTERCOOLER $604.13
16 675000190 1 SCREW $3.88
17 670039060 1 SLEEVE FROM TURBINE TO LH INTERCOOLER $391.38
18 670006210 2 GASKET $5.87
19 675000016 2 FLEXIBLE PAD $7.77
20 670002877 1 RH BRACKET $30.54
21 675000017 2 SPACER $10.88
25 675000685 1 COLLAR $9.58
28 675000104 4 SCREW $2.42
30 675000366 1 WASHER Unavailable
31 670006982 1 RETAINING CLIP $3.11
32 675000354 8 SCREW $3.63
33 670007293 4 SPACER $3.11
34 10977524 4 SCREW $0.90
35 675000409 4 WASHER Unavailable
36 14059214 4 NUT Unavailable
37 675000718 4 WASHER Unavailable
38 675000088 2 SCREW $4.22

* Quantity shown indicates the number of pieces used in the diagram.
