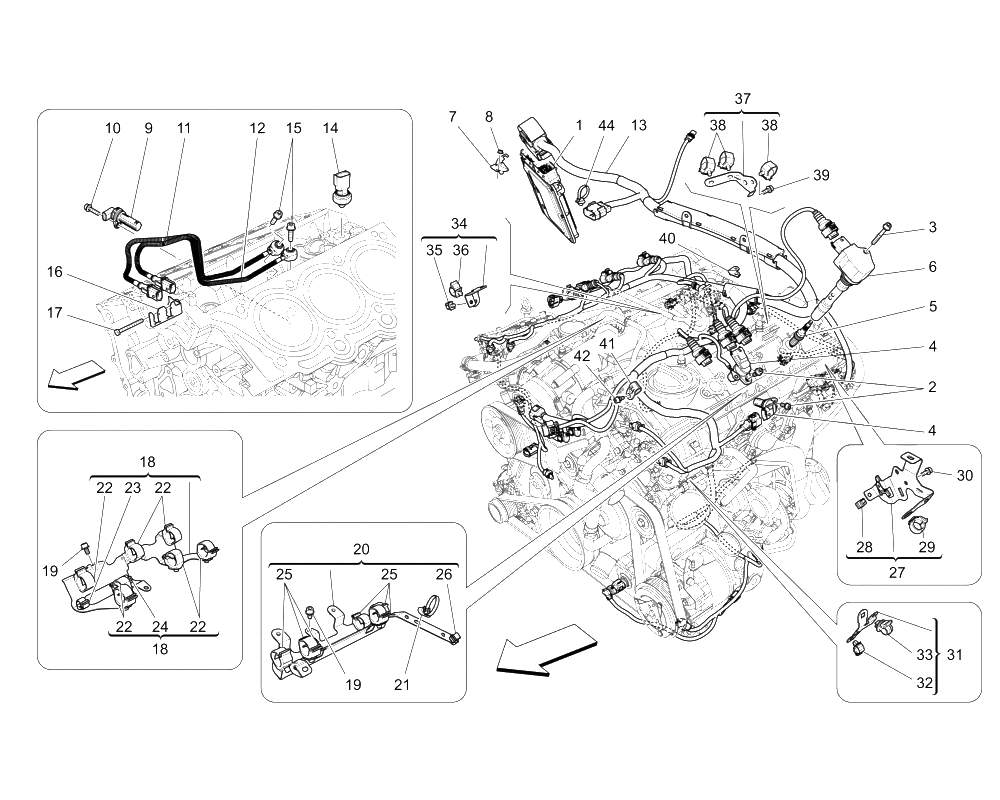

Electronics - Injection and Timing Control Systems

Go to Split View

Electronics - Injection and Timing Control Systems

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 670031346 *Qty: 1 IGNITION CONTROL UNIT $1,289.20
Location: 3 Prev | Next Part: 231624 *Qty: 6 SCREW $0.90
Location: 4 Prev | Next Part: 224573 *Qty: 4 TIMING SENSOR $36.56
Location: 5 Prev | Next Part: 310235 *Qty: 6 SPARK PLUG $31.02
Location: 6 Prev | Next Part: 288233 *Qty: 6 IGNITION COIL $107.82
Location: 7 Prev | Next Part: 670009042 *Qty: 1 CONTROL UNIT FIXING BRACKET $9.92
Location: 8 Prev | Next Part: 14059211 *Qty: 1 NUT $0.90
Location: 9 Prev | Next Part: 316965 *Qty: 1 ANGULAR SPEED SENSOR $64.60
Location: 10 Prev | Next Part: 231620 *Qty: 1 SCREW $0.90
Location: 11 Prev | Next Part: 294471 *Qty: 1 COMPLETE RH KNOCK SENSOR, CYLINDERS 1-2-3 $120.89
Location: 12 Prev | Next Part: 290128 *Qty: 1 COMPLETE LH KNOCK SENSOR, CYLINDERS 4-5-6 $120.89
Location: 13 Prev | Next Part: 316039 *Qty: 1 ENGINE INJECTION WIRING HARNESS $1,694.03
Location: 13 Prev | Next Part: 324912 *Qty: 1 ENGINE INJECTION WIRING HARNESS $1,837.59
Location: 14 Prev | Next Part: 328660 *Qty: 1 OIL PRESSURE SENSOR $55.35
Location: 15 Prev | Next Part: 231629 *Qty: 2 SCREW $0.90
Location: 16 Prev | Next Part: 290057 *Qty: 1 POSITIONING BRACKET $45.73
Location: 17 Prev | Next Part: 10903724 *Qty: 1 SCREW $3.88
Location: 18 Prev | Next Part: 302135 *Qty: 1 CPL RH BRACKET $46.42
Location: 20 Prev | Next Part: 317131 *Qty: 1 CPL LH BRACKET $59.36
Location: 21 Prev | Next Part: 10901087 *Qty: 1 CLAMP $3.88
Location: 23 Prev | Next Part: 292112 *Qty: 2 CLIP $1.55
Location: 27 Prev | Next Part: 299972 *Qty: 1 BRACKET ASSEMBLY $46.42
Location: 27 Prev | Next Part: 325340 *Qty: 1 BRACKET ASSEMBLY $44.17
Location: 29 Prev | Next Part: 191273 *Qty: 1 CLIP $0.90
Location: 31 Prev | Next Part: 290960 *Qty: 1 BRACKET ASSEMBLY $11.47
Location: 32 Prev | Next Part: 226603 *Qty: 1 CLIP $0.90
Location: 33 Prev | Next Part: 288849 *Qty: 1 CLIP $45.73
Location: 34 Prev | Next Part: 673007937 *Qty: 1 BRACKET ASSEMBLY $20.71
Location: 35 Prev | Next Part: 303438 *Qty: 1 CLIP $0.90
Location: 36 Prev | Next Part: 198273 *Qty: 1 CLIP $1.84
Location: 37 Prev | Next Part: 318883 *Qty: 1 BRACKET ASSEMBLY $20.53
Location: 38 Prev | Next Part: 259508 *Qty: 1 CLIP $0.90
Location: 39 Prev | Next Part: 248334 *Qty: 1 SCREW Superseded
Location: 40 Prev | Next Part: 297431 *Qty: 1 BRACKET Unavailable
Location: 41 Prev | Next Part: 291068 *Qty: 2 BRACKET Unavailable
Location: 42 Prev | Next Part: 233600 *Qty: 2 SCREW $0.90
Location: 44 Prev | Next Part: 670008301 *Qty: 1 CLIP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
