Crankcase

Go to Split View

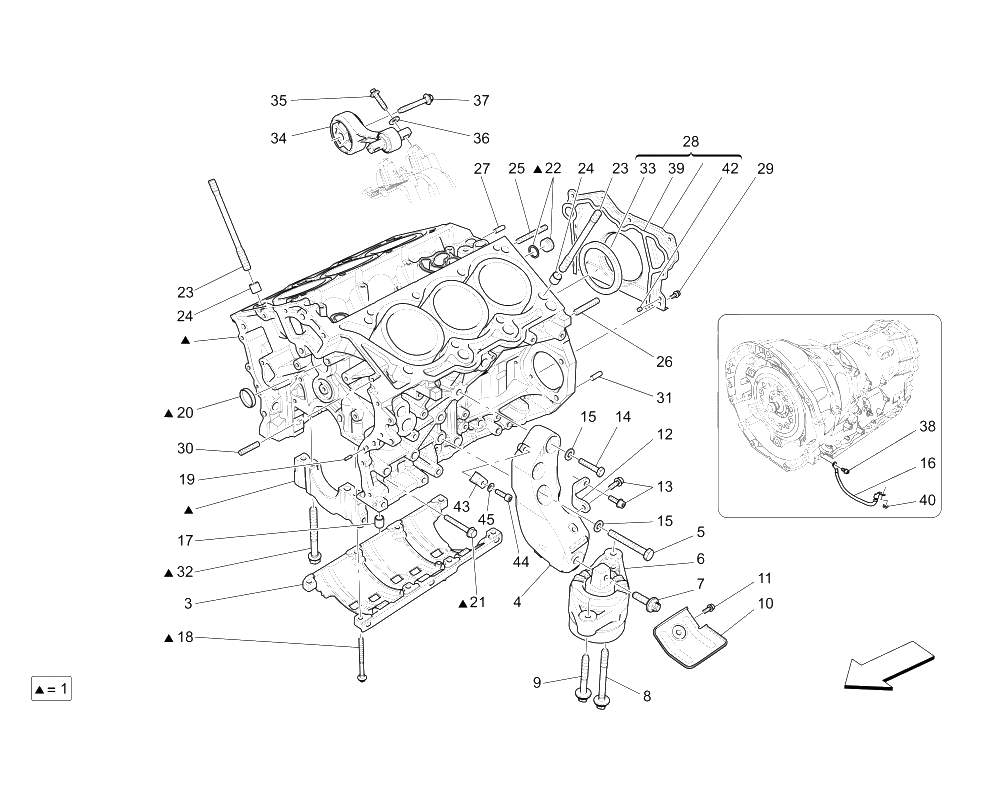

Crankcase

Location Part # Quantity* Description Price Add To Cart
0 670032489 1 ENGINE ASSEMBLY $39,919.95
1 315337 1 ENGINE BLOCK $6,820.80
3 275361 1 BASE SHIELD $83.00
4 290120 1 LH ENGINE MOUNTING BRACKET $698.12
4 290119 1 RH ENGINE MOUNTING BRACKET $698.12
5 15971334 2 SCREW $1.60
6 670004870 1 LH ENGINE BUSHING $402.04
6 670004871 1 RH ENGINE BUSHING $402.04
7 670003759 2 SCREW $6.90
8 670009954 2 SCREW $6.13
9 675000024 2 SCREW $2.33
10 670003982 1 LH HEAT SHIELD $18.12
10 670003984 1 RH HEAT SHIELD $19.33
12 285238 1 LH BRACKET $13.72
12 289475 1 RH BRACKET $15.27
13 84317700 4 SCREW $28.91
14 11288034 2 SCREW $1.52
16 670003868 1 CABLE FOR ENGINE-FRAME EARTH Unavailable
17 300476 2 CENTERING DOWEL $4.57
19 279025 2 CENTERING DOWEL $101.29
21 282607 1 SCREW $3.88
22 313719 1 THREADED PLUG WITH COPPER WASHER $139.42
23 306027 16 STUD $26.75
24 185360 4 CENTERING DOWEL $3.33
25 303590 1 STUD $6.90
28 335495 1 REAR PLATE $386.51
29 231617 8 SCREW Unavailable
30 282918 2 PIN $12.25
31 10337710 2 STUD $4.57
33 334627 1 SEAL RING $80.75
34 670004869 1 HIGH LINK ROD $104.39
35 670035412 2 SCREW $2.33
36 675000247 2 WASHER $1.55
37 675000146 1 SCREW $6.48
38 675000383 1 SCREW $1.99
39 326558 1 GASKET $10.70
40 675000505 1 NUT $3.80
42 102725 2 CENTERING DOWEL $1.36
43 10418501 1 BRACKET $4.00
44 248334 1 SCREW $0.90
45 11190574 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
