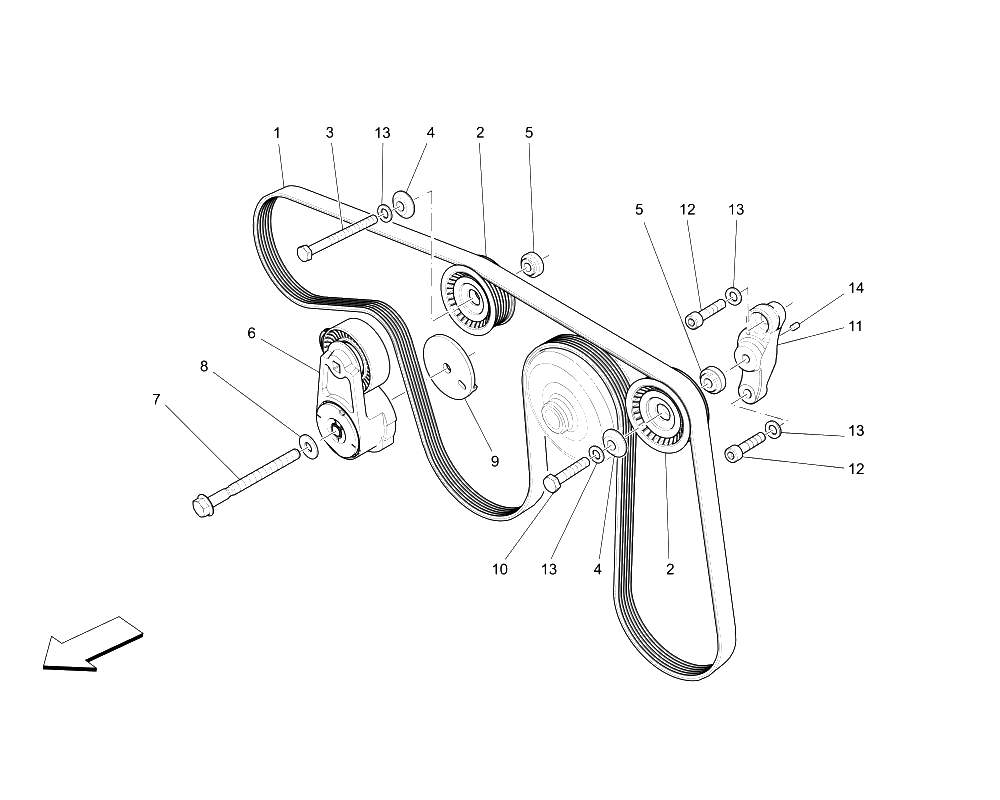

Auxiliary Belts

Go to Split View

Auxiliary Belts

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 243857 *Qty: 1 COMPRESSOR DRIVING BELT $73.55
Location: 2 Prev | Next Part: 278950 *Qty: 2 BELT TIGHTENING PULLEY $48.83
Location: 3 Prev | Next Part: 16045024 *Qty: 1 SCREW Unavailable
Location: 4 Prev | Next Part: 278939 *Qty: 2 WASHER $6.13
Location: 5 Prev | Next Part: 290823 *Qty: 2 BUSHING $12.94
Location: 6 Prev | Next Part: 278940 *Qty: 1 BELT TENSIONER $120.27
Location: 7 Prev | Next Part: 296171 *Qty: 1 SCREW $21.40
Location: 8 Prev | Next Part: 12647021 *Qty: 1 WASHER Unavailable
Location: 9 Prev | Next Part: 290822 *Qty: 1 SHIM $76.27
Location: 10 Prev | Next Part: 16044024 *Qty: 1 SCREW $0.90
Location: 11 Prev | Next Part: 290824 *Qty: 1 SUPPORT $28.30
Location: 12 Prev | Next Part: 14306624 *Qty: 2 SCREW Unavailable
Location: 13 Prev | Next Part: 11198074 *Qty: 4 WASHER Unavailable
Location: 14 Prev | Next Part: 175611 *Qty: 1 CENTERING DOWEL $1.84

* Quantity shown indicates the number of pieces used in the diagram.
