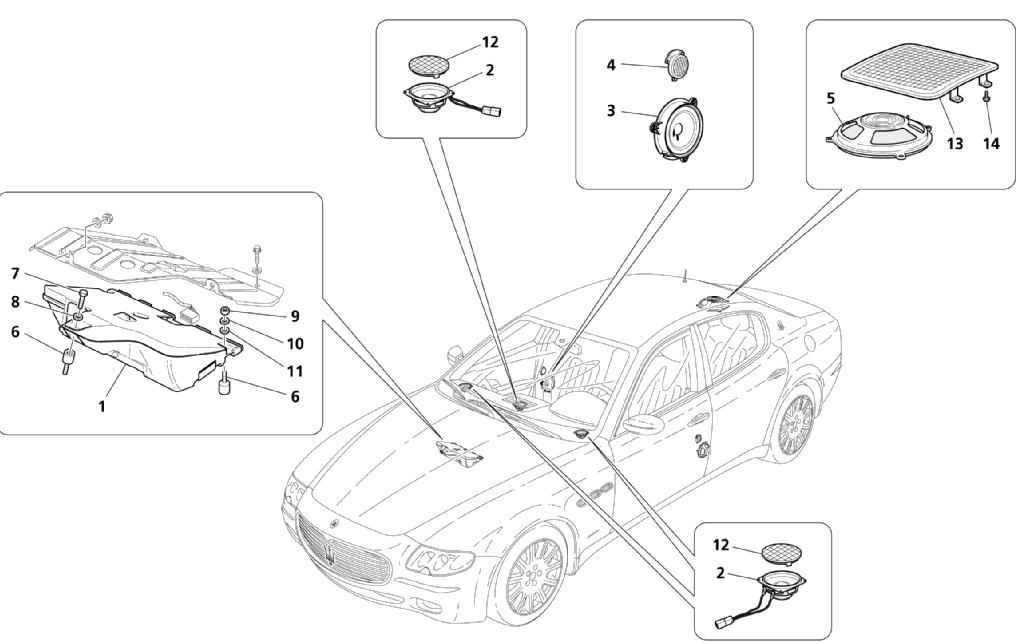

SOUND PROOF SYSTEM
| Location | Part # | Quantity* | Description | Price | Add To Cart |
|---|---|---|---|---|---|
| 1 | 67071100 | 1 | COMPLETE BASS-BOX -R.h. side for cars GS- -L.h. side for cars RHD- | $1,308.94 | |
| 2 | 191365 | 3 | LOUD SPEAKER TWIDDLER | $204.62 | |
| 3 | 191369 | 2 | LOUD SPEAKER WOOFER | $227.34 | |
| 4 | 191370 | 2 | LOUD SPEAKER TWEETER | $63.32 | |
| 5 | 197503 | 1 | LOUD SPEAKER WOOFER | $993.89 | |
| 6 | 188296 | 3 | RUBBER | $10.88 | |
| 7 | 10902011 | 1 | SCREW | Unavailable | |
| 8 | 12647624 | 1 | WASHER | Unavailable | |
| 9 | 14039614 | 2 | NUT | Unavailable | |
| 10 | 12643724 | 2 | WASHER | Superseded | |
| 11 | 12640624 | 2 | WASHER | $0.90 | |
| 12 | 66551500 | 2 | LOUD SPEAKER PLATE | $590.12 | |
| 13 | 66948000 | 1 | LOUD-SPEAKER PLATE | $125.62 | |
| 14 | 15783207 | 4 | SCREW | $38.65 |
* Quantity shown indicates the number of pieces used in the diagram.
