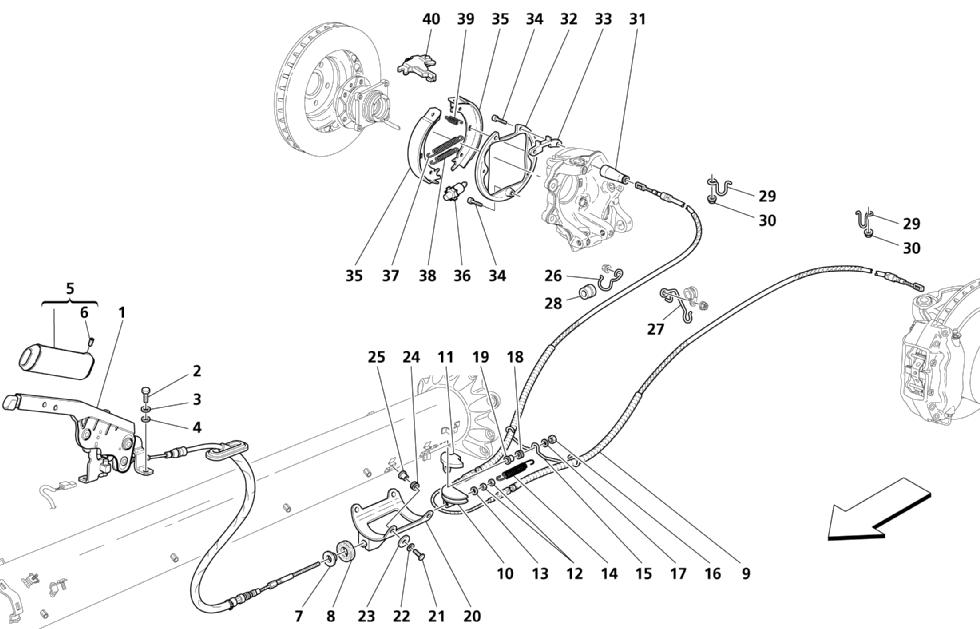

HAND-BRAKE CONTROL

Location Part # Quantity* Description Price Add To Cart
1 195301 1 COMPLETE HAND BRAKE LEVER -Valid till stock exhaustion- Unavailable
1 210922 1 COMPLETE HAND BRAKE LEVER -Valid after stock exhaustion of 195301- $403.77
2 16043424 2 SCREW $0.90
3 11198074 2 WASHER Unavailable
4 10519624 2 WASHER Unavailable
5 9814230.. 1 KNOB FOR HAND BRAKE LEVER -Version Sport GT- Unavailable
5 9813406.. 1 KNOB FOR HAND BRAKE LEVER -Optional- -Black piano wood moulding- Unavailable
5 9813398.. 1 KNOB FOR HAND BRAKE LEVER -Optional- -Mahogany wood moulding- Unavailable
5 9813405.. 1 KNOB FOR HAND BRAKE LEVER -Optional- -Walnut wood moulding- Unavailable
5 9813404.. 1 KNOB FOR HAND BRAKE LEVER -Standard- Unavailable
5 9813400.. 1 KNOB FOR HAND BRAKE LEVER -Optional- -Palisander wood moulding- Unavailable
6 13793021 1 SCREW Unavailable
7 205698 1 SPACER Unavailable
8 204413 1 SPACER $8.02
9 193766 1 HAND-BRAKE CONTROL REAR CABLE $167.27
10 118552 1 ANCHORAGE FOR REAR CABLE Unavailable
11 118553 1 PLATE Unavailable
12 16100814 2 NUT Unavailable
13 14496524 1 WASHER $0.90
14 104895 1 SPRING $36.22
15 206608 1 REAR CABLE RETAINING CLIP Unavailable
16 14048115 1 NUT Superseded
17 12644424 1 WASHER Unavailable
18 206432 1 PAD $41.94
19 206073 1 SPACER Unavailable
20 205628 1 BRACKET Unavailable
21 10902524 4 SCREW Unavailable
22 12644424 4 WASHER Unavailable
23 207269 4 HEAT SHIELD $4.06
24 206432 4 PAD $41.94
25 206073 4 SPACER Unavailable
26 206489 1 R.H. SPRING FOR HAND-BRAKE CABLE $4.30
27 206488 1 L.H. SPRING FOR HAND-BRAKE CABLE $5.77
28 184519 2 PAD $3.19
29 200989 2 SPRING FOR HAND-BRAKE CABLE Unavailable
30 14040614 2 NUT Unavailable
31 388000341 2 CABLE SHEATH $32.48
32 186574 2 SHOES SUPPORT SPACER $86.25
33 190814 2 PLATE $75.90
34 204177 6 SCREW $5.18
35 219569 4 HAND BRAKE SHOE Unavailable
36 186572 2 REGISTER FOR HAND BRAKE $82.80
37 190776 2 RETURN SPRING FOR BRAKE SHOES $20.69
38 190779 2 RETURN SPRING FOR BRAKE SHOES $6.72
39 190780 4 SPRING FOR SHOES $6.19
40 194060 2 HAND BRAKE CONTROL LEVER $98.70

* Quantity shown indicates the number of pieces used in the diagram.
