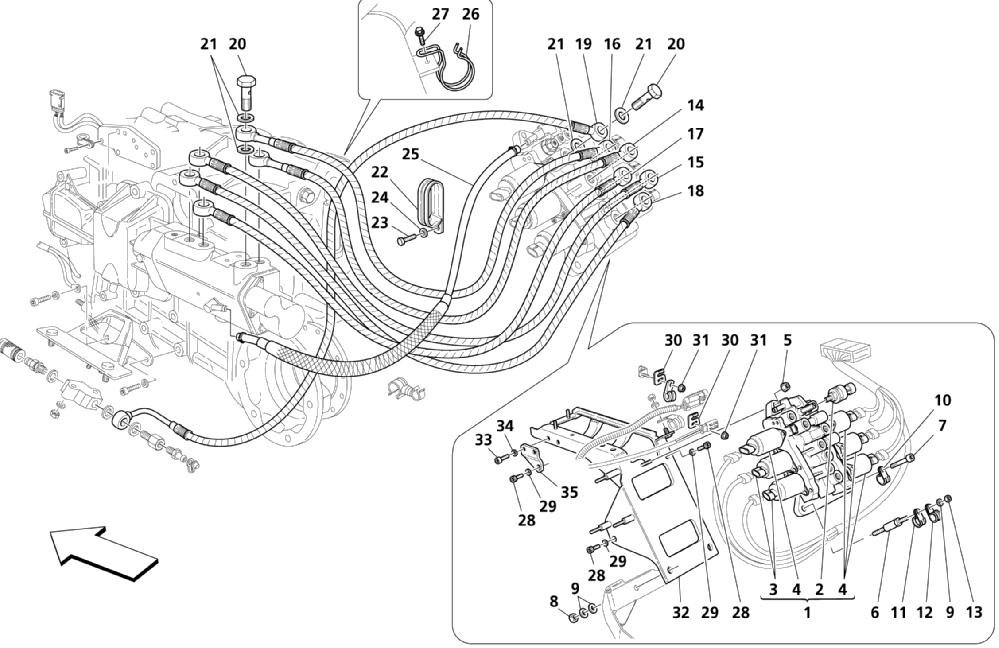

GEARBOX CONTROL HYDRAULICS: POWER UNIT

Go to Split View

GEARBOX CONTROL HYDRAULICS: POWER UNIT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 179140 *Qty: 1 POWER UNIT $2,892.62
Location: 2 Prev | Next Part: 980001156 *Qty: 1 PRESSURE SENSOR $287.45
Location: 3 Prev | Next Part: 980001155 *Qty: 2 PPV VALVE KIT Call
Location: 4 Prev | Next Part: 980001154 *Qty: 4 QPV VALVE KIT $794.14
Location: 5 Prev | Next Part: 14066021 *Qty: 1 NUT $3.49
Location: 6 Prev | Next Part: 202174 *Qty: 1 STUD $3.80
Location: 7 Prev | Next Part: 14306824 *Qty: 1 SCREW $0.90
Location: 8 Prev | Next Part: 15896214 *Qty: 1 NUT Call
Location: 9 Prev | Next Part: 12601374 *Qty: 3 WASHER $0.90
Location: 10 Prev | Next Part: 10450190 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 11 Prev | Next Part: 172842 *Qty: 1 BRACKET WITH SHEATH $8.94
Location: 12 Prev | Next Part: 10441390 *Qty: 1 BRACKET WITH SHEATH $0.90
Location: 13 Prev | Next Part: 14058411 *Qty: 1 NUT Superseded
Location: 14 Prev | Next Part: 185977 *Qty: 1 COMPLETE EV1 PIPE $789.26
Location: 15 Prev | Next Part: 185978 *Qty: 1 COMPLETE EV2 PIPE $717.81
Location: 16 Prev | Next Part: 185979 *Qty: 1 COMPLETE EV3 PIPE $789.26
Location: 17 Prev | Next Part: 185980 *Qty: 1 COMPLETE EV4 PIPE $717.81
Location: 18 Prev | Next Part: 185981 *Qty: 1 COMPLETE EV5 PIPE $717.81
Location: 19 Prev | Next Part: 199920 *Qty: 1 PIPE FROM POWER UNIT TO BLOCK $682.08
Location: 20 Prev | Next Part: 204543 *Qty: 3 UNION -Actuator side- $91.62
Location: 20 Prev | Next Part: 204545 *Qty: 3 UNION -Power unit side- $91.62
Location: 20 Prev | Next Part: 171454 *Qty: 5 UNION $10.47
Location: 21 Prev | Next Part: 10261060 *Qty: 22 GASKET $0.90
Location: 22 Prev | Next Part: 186299 *Qty: 1 CLAMP $32.09
Location: 23 Prev | Next Part: 14305724 *Qty: 1 SCREW $0.90
Location: 24 Prev | Next Part: 12601279 *Qty: 1 WASHER Superseded
Location: 25 Prev | Next Part: 980001161 *Qty: 1 RECYCLE PIPE KIT $185.14
Location: 26 Prev | Next Part: 188971 *Qty: 1 BRACKET $4.05
Location: 27 Prev | Next Part: 16297034 *Qty: 1 SCREW $2.16
Location: 28 Prev | Next Part: 14301924 *Qty: 3 SCREW $1.29
Location: 29 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 30 Prev | Next Part: 162606 *Qty: 2 CLIP $0.93
Location: 31 Prev | Next Part: 14058411 *Qty: 2 NUT Superseded
Location: 32 Prev | Next Part: 185891 *Qty: 1 POWER UNIT SUPPORT BRACKET $1,130.20
Location: 33 Prev | Next Part: 14305724 *Qty: 2 SCREW $0.90
Location: 34 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 35 Prev | Next Part: 186906 *Qty: 1 BRACKET $194.98

* Quantity shown indicates the number of pieces used in the diagram.
