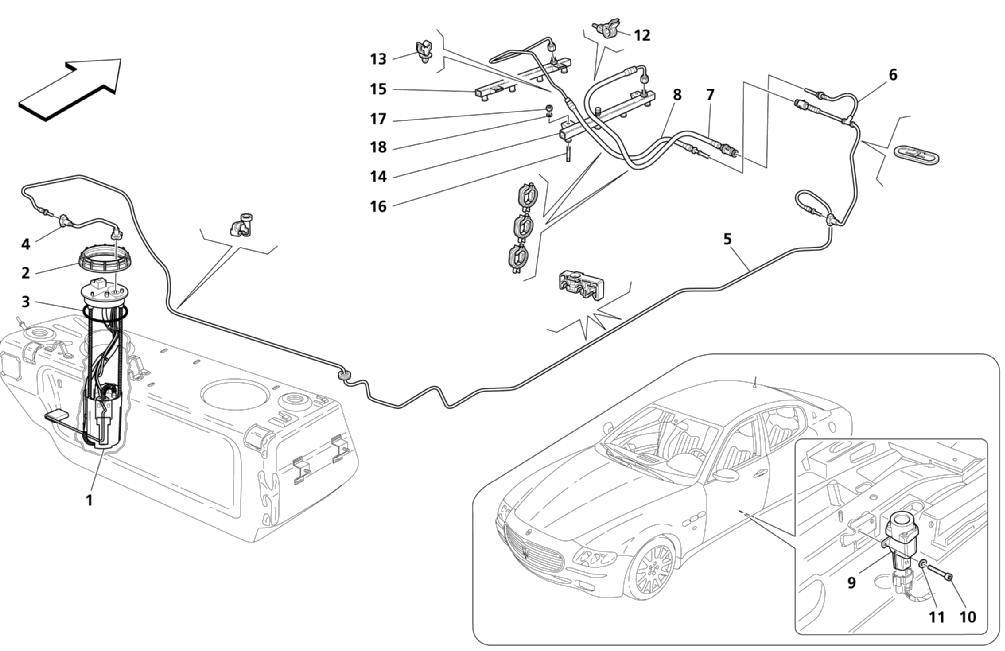

FUEL PUMPS AND PIPING

Go to Split View

FUEL PUMPS AND PIPING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 214369 *Qty: 1 FUEL PUMP $415.74
Location: 2 Prev | Next Part: 181682 *Qty: 1 RING NUT $22.79
Location: 3 Prev | Next Part: 181681 *Qty: 1 GASKET $18.81
Location: 4 Prev | Next Part: 219391 *Qty: 1 FUEL DELIVERY TUBE $31.67
Location: 5 Prev | Next Part: 218483 *Qty: 1 FUEL PIPE FROM PUMP TO CONNECTION $101.50
Location: 6 Prev | Next Part: 225024 *Qty: 1 FUEL PIPE FROM CONNECTION TO ENGINE $57.65
Location: 7 Prev | Next Part: 209820 *Qty: 1 R.H. FUEL DELIVERY TUBE $60.41
Location: 8 Prev | Next Part: 209821 *Qty: 1 L.H. FUEL DELIVERY TUBE $82.17
Location: 9 Prev | Next Part: 163675 *Qty: 1 INERTIAL SWITCH $24.52
Location: 10 Prev | Next Part: 13026121 *Qty: 2 SCREW $0.90
Location: 11 Prev | Next Part: 11199274 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 206536 *Qty: 1 CLIP $0.90
Location: 13 Prev | Next Part: 198271 *Qty: 2 CLIP -(Quantity 1 for cars RHD)- $1.07
Location: 14 Prev | Next Part: 215338 *Qty: 1 COMPLETE R.H. INJECTORS PIPE -Complete of electro-injectors- $982.52
Location: 15 Prev | Next Part: 215337 *Qty: 1 COMPLETE L.H. INJECTORS PIPE -Complete of electro-injectors- $781.14
Location: 16 Prev | Next Part: 13516824 *Qty: 4 STUD $0.90
Location: 17 Prev | Next Part: 16102314 *Qty: 4 NUT $0.90
Location: 18 Prev | Next Part: 11198074 *Qty: 4 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
