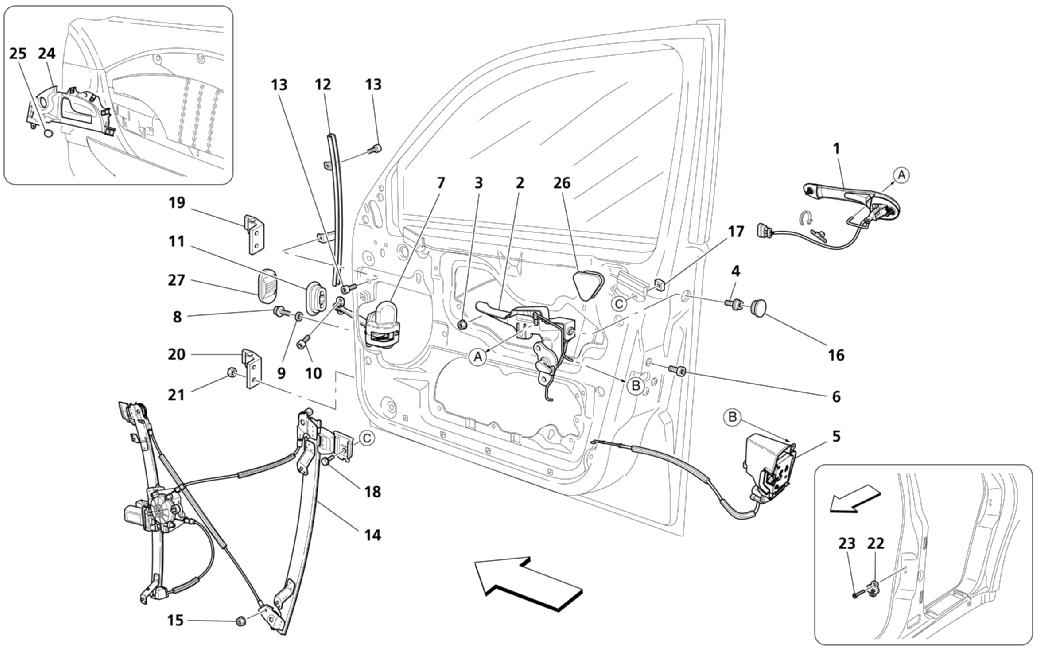

FRONT DOORS: MOVEMENT DEVICES

Location Part # Quantity* Description Price Add To Cart
1 69287600 1 R.H. HANDLE FOR DOOR OPENING $293.94
1 69287700 1 L.H. HANDLE FOR DOOR OPENING $289.07
2 67865500 1 L.H. FRONT HANDLE BOX -Valid till stock exhaustion- Unavailable
2 68001900 1 L.H. FRONT HANDLE BOX -Valid after stock exhaustion of 67865500- $144.78
2 68001800 1 R.H. FRONT HANDLE BOX -Valid after stock exhaustion of 67865400- $144.78
2 67865400 1 R.H. FRONT HANDLE BOX -Valid till stock exhaustion- $118.44
3 14040514 4 NUT Unavailable
4 46401657 2 SCREW Unavailable
5 67575900 1 R.H. FRONT DOOR LOCK $236.39
5 67576000 1 L.H. FRONT DOOR LOCK Unavailable
6 67077900 6 SCREW Unavailable
7 66513400 2 TIE ROD $250.20
8 67077800 4 SCREW $3.02
9 12643724 4 WASHER Superseded
10 68808500 4 SCREW $5.26
11 67575800 2 GASKET $22.43
12 67271000 1 R.H. FRONT GLASS GUIDE $319.93
12 67271100 1 L.H. FRONT GLASS GUIDE $194.88
13 46401657 4 SCREW Unavailable
14 66944800 1 FRONT R.H. GLASS LIFT Superseded
14 66944900 1 FRONT L.H. GLASS LIFT Superseded
15 14040614 10 NUT Unavailable
16 14506787 2 PLUG Unavailable
17 67712400 4 PLATE Unavailable
18 16296924 4 SCREW Unavailable
19 67881000 1 UPPER L.H. HINGE $196.71
19 67880900 1 UPPER R.H. HINGE $196.71
20 66812400 1 LOWER R.H. HINGE $145.98
20 66812500 1 LOWER L.H. HINGE $145.98
21 15501025 8 NUT Unavailable
22 67877100 2 STRIKER -Valid till stock exhaustion- Superseded
22 68308800 2 STRIKER -Valid after stock exhaustion of 67877100- Superseded
23 67999500 4 SCREW $3.37
24 980139376 1 COMPLETE L.H. FRONT HANDLE FOR DOOR OPENING -Not for RHD- -Included in the complete front door panel (Draw 9.30 Pos. 2)- Unavailable
24 980139459 1 COMPLETE L.H. FRONT HANDLE FOR DOOR OPENING -Valid for RHD- -Included in the complete front door panel (Draw 9.30 Pos. 2)- $438.28
24 980139458 1 COMPLETE R.H. FRONT HANDLE FOR DOOR OPENING -Valid for RHD- -Included in the complete front door panel (Draw 9.30 Pos. 2)- $438.28
24 980139375 1 COMPLETE R.H. FRONT HANDLE FOR DOOR OPENING -Not for RHD- -Included in the complete front door panel (Draw 9.30 Pos. 2)- $426.20
25 66939600 2 PLUG -Included in the complete front door panel (Draw 9.30 Pos. 2)- $11.81
26 67305000 2 PLUG Unavailable
27 67079000 2 GASKET $13.64

* Quantity shown indicates the number of pieces used in the diagram.
