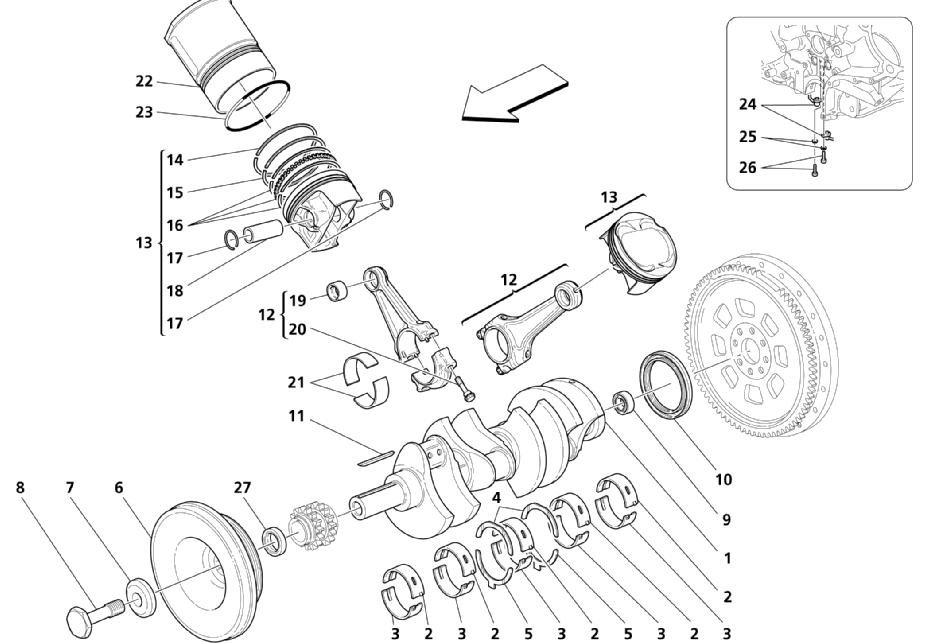

CRANK MECHANISM

Go to Split View

CRANK MECHANISM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 227087 *Qty: 1 CRANKSHAFT Call
Location: 2 Prev | Next Part: 195308 *Qty: 5 UPPER HALF BEARING -Yellow- $20.59
Location: 2 Prev | Next Part: 195307 *Qty: 5 UPPER HALF BEARING -Blue- Superseded
Location: 2 Prev | Next Part: 198910 *Qty: 5 UPPER HALF BEARING -Green- -Standard- $26.81
Location: 3 Prev | Next Part: 200195 *Qty: 5 LOWER HALF BEARING -Yellow- $17.29
Location: 3 Prev | Next Part: 200194 *Qty: 5 LOWER HALF BEARING -Blue- Superseded
Location: 3 Prev | Next Part: 200196 *Qty: 5 LOWER HALF BEARING -Green- -Standard- $27.25
Location: 4 Prev | Next Part: 196648 *Qty: 2 UPPER SHIM $79.39
Location: 5 Prev | Next Part: 196649 *Qty: 2 LOWER SHIM $79.39
Location: 6 Prev | Next Part: 187469 *Qty: 1 TORSION DAMPER $2,452.24
Location: 7 Prev | Next Part: 192106 *Qty: 1 WASHER $6.42
Location: 8 Prev | Next Part: 196216 *Qty: 1 SCREW FOR DAMPER FIXING $36.94
Location: 9 Prev | Next Part: 103877 *Qty: 1 BEARING $29.17
Location: 10 Prev | Next Part: 200323 *Qty: 1 SEAL RING -Supplied also in the crankcase gasket revision kit (cod. 980020004)- $32.99
Location: 11 Prev | Next Part: 186201 *Qty: 1 KEY $1.07
Location: 12 Prev | Next Part: 215529 *Qty: 8 COMPLETE CONNECTING ROD Call
Location: 13 Prev | Next Part: 198412 *Qty: 1 L.H. SIDE ENGINE PISTON WITH RINGS $269.58
Location: 13 Prev | Next Part: 198410 *Qty: 1 R.H. SIDE ENGINE PISTON WITH RINGS $269.58
Location: 14 Prev | Next Part: 175612 *Qty: 8 SEAL RING -1st groove- $88.52
Location: 15 Prev | Next Part: 187201 *Qty: 8 SEAL RING -2nd groove- $24.85
Location: 16 Prev | Next Part: 175614 *Qty: 8 OIL SCRAPING RING -3nd groove- $75.92
Location: 17 Prev | Next Part: 178890 *Qty: 16 STOP RING $2.97
Location: 18 Prev | Next Part: 175367 *Qty: 8 PIN $66.07
Location: 19 Prev | Next Part: 208094 *Qty: 8 BUSHING $21.34
Location: 20 Prev | Next Part: 215530 *Qty: 16 CONNECTING ROD TIGHTENING SCREW $46.82
Location: 21 Prev | Next Part: 204292 *Qty: 16 CONNECTING ROD HALF BEARING -Black- $8.23
Location: 21 Prev | Next Part: 204291 *Qty: 16 CONNECTING ROD HALF BEARING -Blue- $8.23
Location: 21 Prev | Next Part: 204290 *Qty: 16 CONNECTING ROD HALF BEARING -Red- -Standard- $8.23
Location: 22 Prev | Next Part: 190770 *Qty: 8 CYLINDER LINER $288.83
Location: 23 Prev | Next Part: 186251 *Qty: 24 GASKET -Supplied also in the crankcase gasket revision kit (cod. 980020004)- $2.73
Location: 24 Prev | Next Part: 175657 *Qty: 8 PISTONS COOLING NOZZLE $8.33
Location: 25 Prev | Next Part: 11181474 *Qty: 8 WASHER $0.90
Location: 26 Prev | Next Part: 14302921 *Qty: 8 SCREW $0.90
Location: 27 Prev | Next Part: 188717 *Qty: 1 GASKET -Supplied also in the cylinder heads gasket revision kit (cod. 980020003)- $13.96

* Quantity shown indicates the number of pieces used in the diagram.
