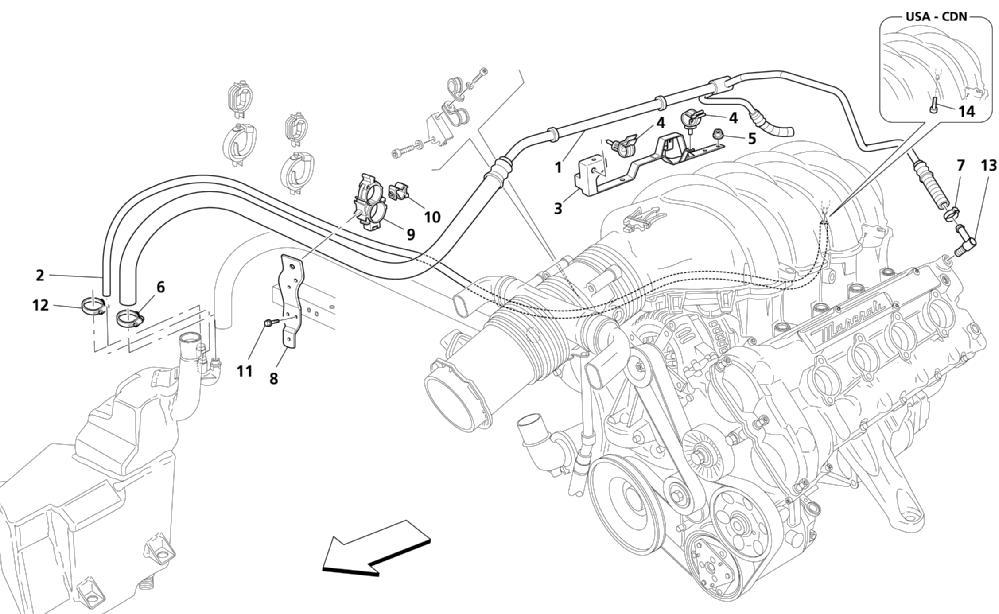

BLOW-BY SYSTEM

Go to Split View

BLOW-BY SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 227573 *Qty: 1 HEAD CONNECTING VENT PIPE -Valid after stock exhaustion of 208418- Call
Location: 1 Prev | Next Part: 208418 *Qty: 1 HEAD CONNECTING VENT PIPE -Valid till stock exhaustion- Call
Location: 2 Prev | Next Part: 169692 *Qty: 1 PIPE FROM MANIFOLD TO TANK -Not for USA and CDN- $11.09
Location: 3 Prev | Next Part: 208646 *Qty: 1 BRACKET Call
Location: 4 Prev | Next Part: 198253 *Qty: 2 CLIP $4.16
Location: 5 Prev | Next Part: 14040715 *Qty: 2 NUT $0.90
Location: 6 Prev | Next Part: 177996 *Qty: 1 CLAMP $3.02
Location: 7 Prev | Next Part: 178052 *Qty: 2 CLAMP $1.39
Location: 8 Prev | Next Part: 204454 *Qty: 1 BRACKET Call
Location: 9 Prev | Next Part: 204928 *Qty: 1 CLIP $1.81
Location: 10 Prev | Next Part: 204931 *Qty: 1 BLOCK Call
Location: 11 Prev | Next Part: 11612624 *Qty: 2 SCREW $0.90
Location: 12 Prev | Next Part: 13128170 *Qty: 1 COLLAR $1.55
Location: 13 Prev | Next Part: 124342 *Qty: 1 THREADED UNION IN THE L.H. HEAD $4.87
Location: 13 Prev | Next Part: 211587 *Qty: 1 THREADED UNION IN THE R.H. HEAD Call
Location: 14 Prev | Next Part: 14306224 *Qty: 1 SCREW -Valid for USA and CDN- $0.90

* Quantity shown indicates the number of pieces used in the diagram.
