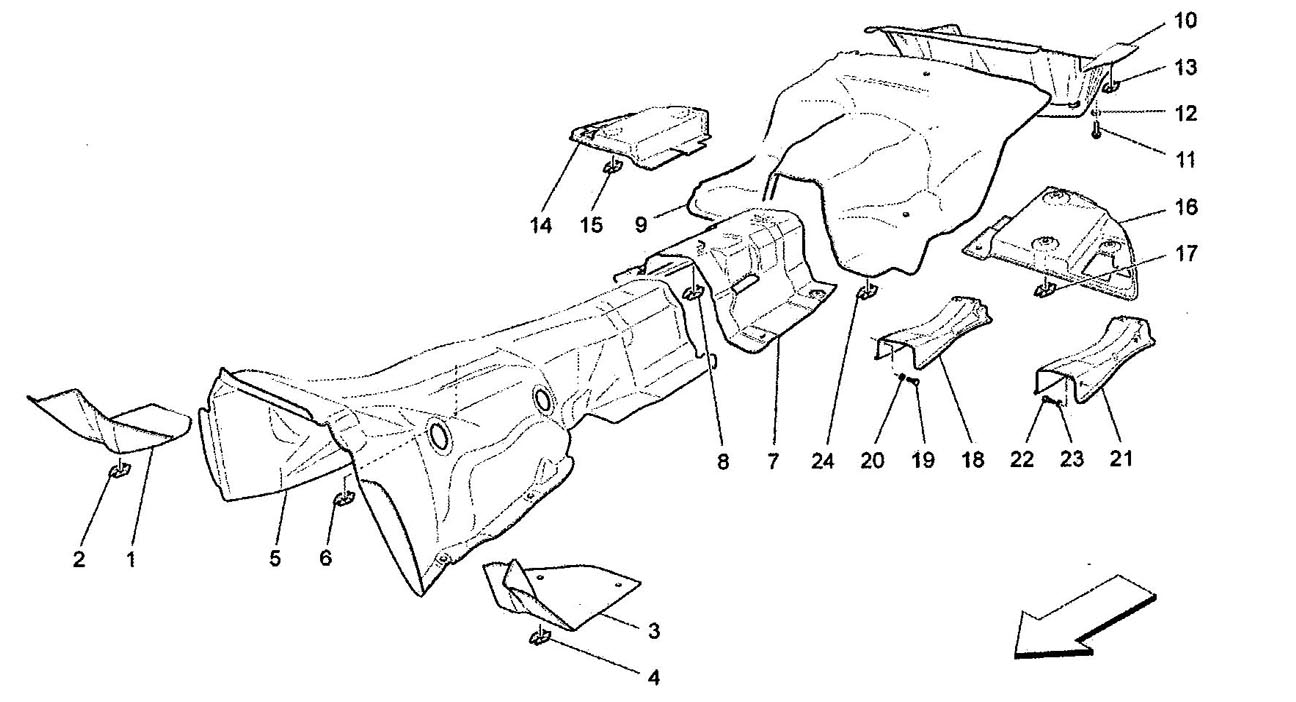

TUNNEL INSULATION

Go to Split View

TUNNEL INSULATION

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 80681900 *Qty: 1 R.H. Heat Shield $111.12
Location: 2 Prev | Next Part: 67315400 *Qty: 3 Washer $0.90
Location: 3 Prev | Next Part: 67221500 *Qty: 1 L.H. Heat Shield $123.89
Location: 4 Prev | Next Part: 67315400 *Qty: 3 Washer $0.90
Location: 5 Prev | Next Part: 69781300 *Qty: 1 Front Heat Shield For Tunnel $312.32
Location: 6 Prev | Next Part: 67315400 *Qty: 10 Washer $0.90
Location: 7 Prev | Next Part: 80816600 *Qty: 1 Rear Heat Shield For Tunnel $105.26
Location: 8 Prev | Next Part: 67315400 *Qty: 6 Washer $0.90
Location: 9 Prev | Next Part: 82653500 *Qty: 1 Rear Heat Shield Call
Location: 10 Prev | Next Part: 80058300 *Qty: 1 Spare Wheel Step Heat Shield $465.89
Location: 11 Prev | Next Part: 67909700 *Qty: 1 Screw $3.02
Location: 12 Prev | Next Part: 12647678 *Qty: 1 Washer Call
Location: 13 Prev | Next Part: 67315400 *Qty: 5 Washer $0.90
Location: 14 Prev | Next Part: 80058100 *Qty: 1 R.H. Silencer Heat Shield $99.22
Location: 15 Prev | Next Part: 67315400 *Qty: 4 Washer $0.90
Location: 16 Prev | Next Part: 80058200 *Qty: 1 L.H. Silencer Heat Shield $113.37
Location: 17 Prev | Next Part: 67315400 *Qty: 4 Washer $0.90
Location: 18 Prev | Next Part: 236176 *Qty: 1 Solenoid Valve Heat Shield Call
Location: 19 Prev | Next Part: 10977524 *Qty: 4 Screw $0.90
Location: 20 Prev | Next Part: 11181674 *Qty: 4 Washer $0.90
Location: 21 Prev | Next Part: 244423 *Qty: 1 Gearbox Oil Tank Heat Shield Call
Location: 22 Prev | Next Part: 10977524 *Qty: 4 Screw $0.90
Location: 23 Prev | Next Part: 11181674 *Qty: 4 Washer $0.90
Location: 24 Prev | Next Part: 67315400 *Qty: 5 Washer $0.90

* Quantity shown indicates the number of pieces used in the diagram.
