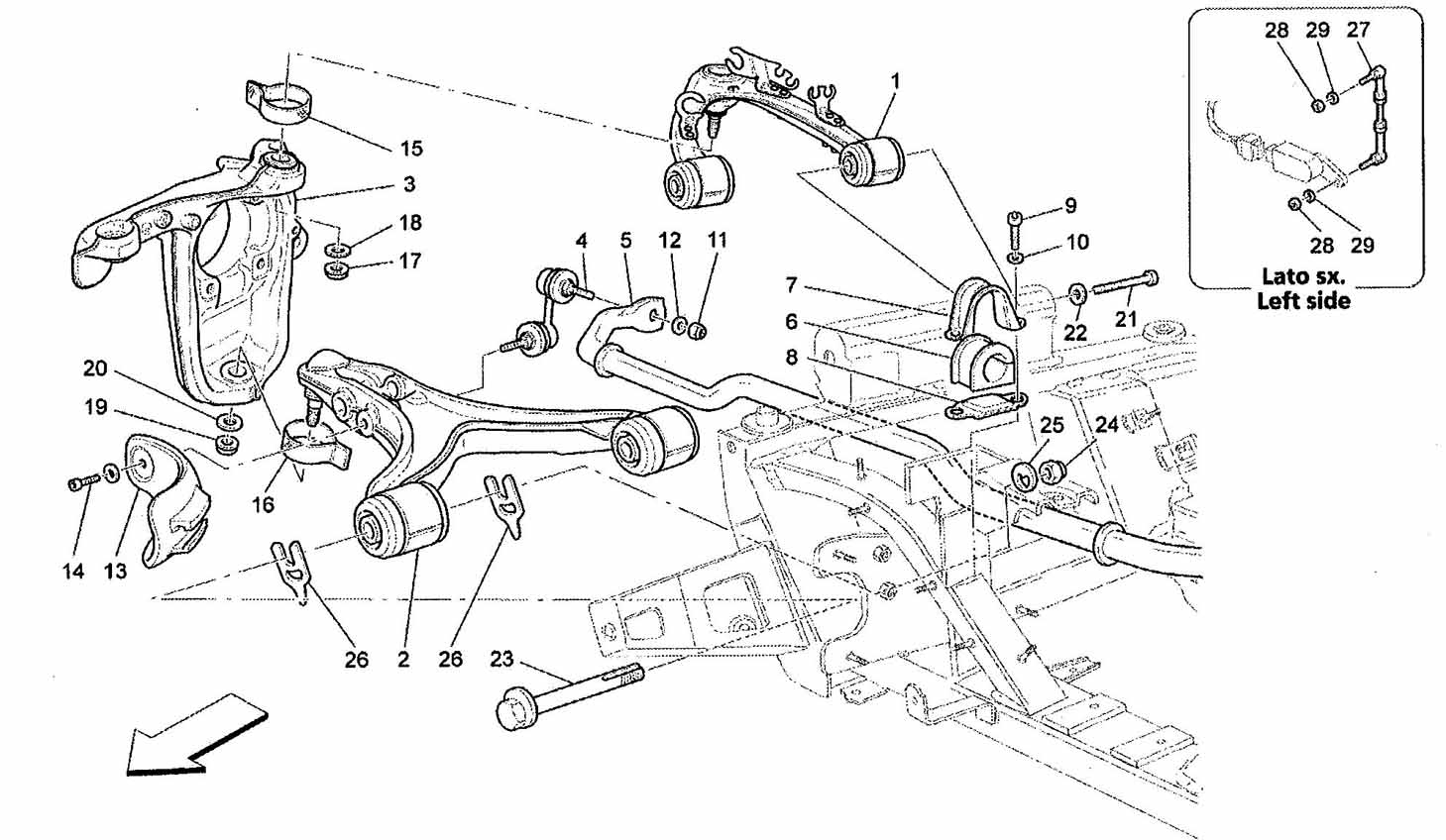

FRONT SUSPENSION

Go to Split View

FRONT SUSPENSION

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: -0 Prev | Next Part: 980139893 *Qty: 1 R.H. Front Suspension Kit $1,514.68
Location: -0 Prev | Next Part: 980139894 *Qty: 1 L.H. Front Suspension Kit $1,514.68
Location: -0 Prev | Next Part: 980139889 *Qty: 2 Front Suspension Bushing Kit $555.61
Location: 1 Prev | Next Part: -0 *Qty: 1 Complete L.H. Front Upper Lever Unavailable
Location: 2 Prev | Next Part: -0 *Qty: 1 Complete R.H. Front Lower Lever Unavailable
Location: 3 Prev | Next Part: -0 *Qty: 1 Complete R.H. Front Hub Holder Unavailable
Location: 3 Prev | Next Part: -0 *Qty: 1 Complete L.H. Front Hub Holder Unavailable
Location: 4 Prev | Next Part: 259573 *Qty: 1 Ball Tie Rod L.H. Side $74.95
Location: 4 Prev | Next Part: 259572 *Qty: 1 Ball Tie Rod R.H. Side $105.74
Location: 5 Prev | Next Part: -0 *Qty: 1 Anti-Roll Bar Unavailable
Location: 6 Prev | Next Part: -0 *Qty: 2 Bar Buffer Unavailable
Location: 7 Prev | Next Part: 192773 *Qty: 2 Upper Support $8.61
Location: 8 Prev | Next Part: 192772 *Qty: 2 Lower Support $4.70
Location: 9 Prev | Next Part: 14307534 *Qty: 4 Screw $3.11
Location: 10 Prev | Next Part: 12604574 *Qty: 4 Washer $0.90
Location: 11 Prev | Next Part: 102742 *Qty: 2 Nut $0.90
Location: 12 Prev | Next Part: 12601474 *Qty: 4 Washer $0.90
Location: 13 Prev | Next Part: 239645 *Qty: 1 L.H. Air Flow Flap $36.48
Location: 13 Prev | Next Part: 239646 *Qty: 1 R.H. Air Flow Flap $36.48
Location: 14 Prev | Next Part: 202013 *Qty: 2 Screw $11.47
Location: 15 Prev | Next Part: 386600416 *Qty: 2 Joint Upper Protection $6.13
Location: 16 Prev | Next Part: 160019 *Qty: 2 Joint Lower Protection $6.13
Location: 17 Prev | Next Part: 245240 *Qty: 2 Nut Valid For Cars With Suspensions Kit 900027749/900027750 (Pos.O) $8.83
Location: 19 Prev | Next Part: 245240 *Qty: 2 Nut Valid For Cars With Suspensions Kit 900027749/900027750 (Pos.O) $8.83
Location: 21 Prev | Next Part: 15977934 *Qty: 4 Screw $10.70
Location: 22 Prev | Next Part: 13550634 *Qty: 4 Washer $3.11
Location: 23 Prev | Next Part: 240875 *Qty: 2 Screw Front Fixing $131.66
Location: 23 Prev | Next Part: 240876 *Qty: 2 Screw Rear Fixing $130.10
Location: 24 Prev | Next Part: 203795 *Qty: 4 Nut $2.56
Location: 25 Prev | Next Part: 240877 *Qty: 4 Washer $4.57
Location: 26 Prev | Next Part: 198038 *Qty: 8 Spacer Thickness Mm. 0.50 $5.19
Location: 26 Prev | Next Part: 198039 *Qty: 8 Spacer Thickness Mm. 0.75 $5.04
Location: 26 Prev | Next Part: 198040 *Qty: 8 Spacer Thickness Mm. 1.00 $4.88
Location: 26 Prev | Next Part: 198041 *Qty: 8 Spacer Thickness Mm. 1.75 $4.05
Location: 26 Prev | Next Part: 198042 *Qty: 8 Spacer Thickness Mm. 3.00 $5.50
Location: 27 Prev | Next Part: 188629 *Qty: 1 Tie Rod For Light Adjusting Potentiometer $32.45
Location: 28 Prev | Next Part: 102741 *Qty: 2 Nut $0.90
Location: 29 Prev | Next Part: 14498824 *Qty: 2 Washer $0.90

* Quantity shown indicates the number of pieces used in the diagram.
