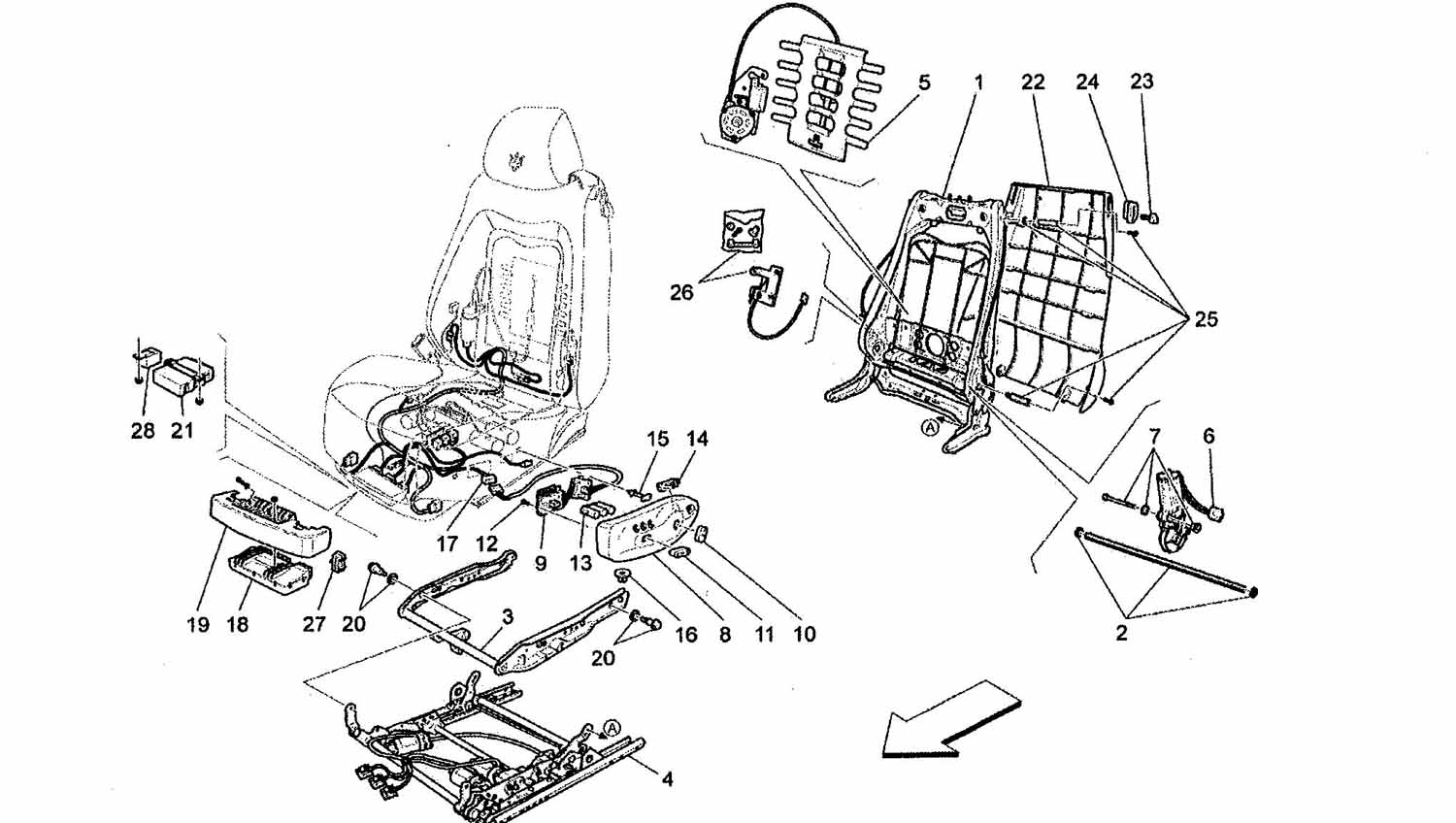

FRONT SEATS

Go to Split View

FRONT SEATS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 980145081 *Qty: 2 Front Seat Back Frame $1,261.85
Location: 2 Prev | Next Part: 66328800 *Qty: 2 Complete Connection Bar $27.04
Location: 3 Prev | Next Part: 980001145 *Qty: 1 L.H. Front Cushion Frame $85.75
Location: 3 Prev | Next Part: 980001178 *Qty: 1 R.H. Front Cushion Frame $72.43
Location: 4 Prev | Next Part: -0 *Qty: 1 Front Seat Lifter Driver Side Call
Location: 5 Prev | Next Part: 980145324 *Qty: 1 Lombar Adjust Kit Driver Side $305.31
Location: 6 Prev | Next Part: -0 *Qty: 1 Seat Back Adjust Motor Driver Side Call
Location: 7 Prev | Next Part: 386900403 *Qty: 2 Motor Fixing Kit $69.54
Location: 8 Prev | Next Part: -0 *Qty: 1 L.H. Lateral Cover Call
Location: 8 Prev | Next Part: -0 *Qty: 1 R.H. Lateral Cover Call
Location: 9 Prev | Next Part: -0 *Qty: 1 L.H. Cushion/Seat Back Adjustment Joystick Call
Location: 9 Prev | Next Part: 980145146 *Qty: 1 R.H. Cushion/Seat Back Adjustment Joystick $485.58
Location: 10 Prev | Next Part: 980145095 *Qty: 2 Seat Back Adjust Button $48.23
Location: 11 Prev | Next Part: 980145096 *Qty: 2 Cushion Adjust Button $56.94
Location: 12 Prev | Next Part: 980145102 *Qty: 0 Screw Call
Location: 13 Prev | Next Part: 980145152 *Qty: 1 L.H. Memory Buttons Assembly $50.34
Location: 14 Prev | Next Part: 980145109 *Qty: 1 L.H. Heater Adjustment Driver Side Call
Location: 14 Prev | Next Part: 980145110 *Qty: 1 R.H. Heater Adjustment Passenger Side $196.50
Location: 15 Prev | Next Part: 386900404 *Qty: 8 Clip $10.61
Location: 16 Prev | Next Part: 386900405 *Qty: 4 Nut $3.80
Location: 17 Prev | Next Part: -0 *Qty: 1 Front Seat Cable Driver Side Call
Location: 18 Prev | Next Part: 233777 *Qty: 1 Memory Control Unit Driver Side $1,157.77
Location: 19 Prev | Next Part: 980145119 *Qty: 2 Bracket $42.27
Location: 20 Prev | Next Part: 980001023 *Qty: 2 Front Seat Lifter Fixing Kit $100.60
Location: 21 Prev | Next Part: 271608 *Qty: 2 Easy Entry Control Unit Call
Location: 22 Prev | Next Part: 980145128 *Qty: 1 L.H. Seat Back Panel Call
Location: 22 Prev | Next Part: 980145127 *Qty: 1 R.H. Seat Back Panel Call
Location: 23 Prev | Next Part: 980145120 *Qty: 2 Knob For Cars With Knob In Black Color Replace Both $63.15
Location: 24 Prev | Next Part: 980138108 *Qty: 2 Plate $60.22
Location: 25 Prev | Next Part: 980145129 *Qty: 2 Seat Back Panel Fixing Kit $47.11
Location: 26 Prev | Next Part: 386900309 *Qty: 1 Complete L.H. Microswitch $110.92
Location: 26 Prev | Next Part: 386900310 *Qty: 1 Complete R.H. Microswitch $82.17
Location: 27 Prev | Next Part: 980145118 *Qty: 1 Connector Call
Location: 28 Prev | Next Part: 980139417 *Qty: 1 Heater Control Unit Call

* Quantity shown indicates the number of pieces used in the diagram.
