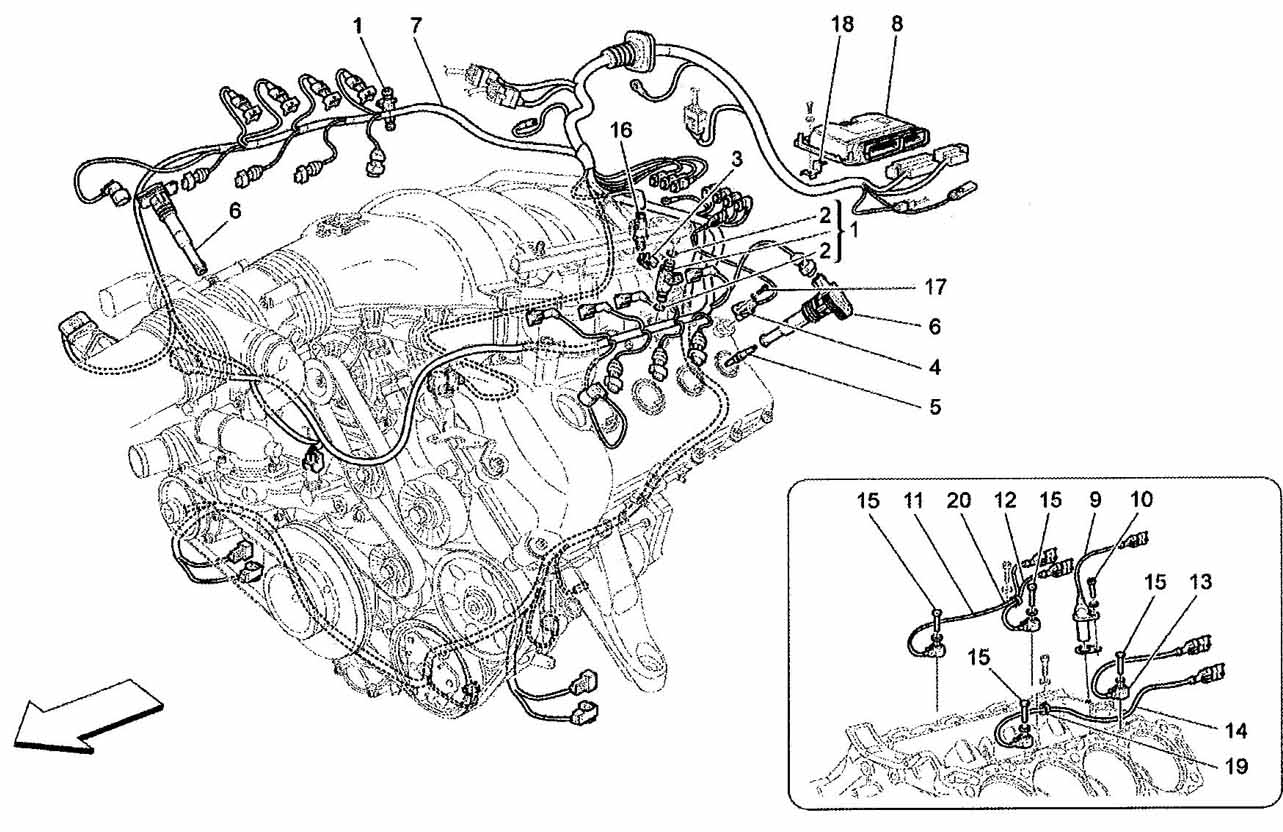

ENGINE IGNITION

Go to Split View

ENGINE IGNITION

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 213635 *Qty: 8 Electro-Injector $302.16
Location: 2 Prev | Next Part: 133902 *Qty: 16 Gasket $6.14
Location: 3 Prev | Next Part: 144730 *Qty: 8 Clip $3.42
Location: 4 Prev | Next Part: 230758 *Qty: 1 R.H. Side Phase Sensor $165.65
Location: 4 Prev | Next Part: 230759 *Qty: 1 L.H. Side Phase Sensor $165.65
Location: 5 Prev | Next Part: 239242 *Qty: 8 Spark Plug $34.75
Location: 6 Prev | Next Part: 281449 *Qty: 8 Ignition Coil $116.92
Location: 7 Prev | Next Part: 244767 *Qty: 1 Engine Injection Cable Call
Location: 8 Prev | Next Part: 980139668 *Qty: 1 Control Unit Ignition Programmable $1,883.84
Location: 9 Prev | Next Part: 230760 *Qty: 1 Angolar Speed Sensor $93.06
Location: 10 Prev | Next Part: 231616 *Qty: 1 Screw $0.90
Location: 11 Prev | Next Part: 230699 *Qty: 1 R.H. Side Sensor For Firing $79.58
Location: 12 Prev | Next Part: 230700 *Qty: 1 R.H. Side Sensor For Firing $79.58
Location: 13 Prev | Next Part: 230701 *Qty: 1 L.H. Side Sensor For Firing ' $78.11
Location: 14 Prev | Next Part: 230702 *Qty: 1 L.H. Side Sensor For Firing $78.11
Location: 15 Prev | Next Part: 231629 *Qty: 4 Screw $0.90
Location: 16 Prev | Next Part: 201672 *Qty: 1 Oil Pressure Transmitter $5.85
Location: 17 Prev | Next Part: 231616 *Qty: 2 Screw $0.90
Location: 18 Prev | Next Part: 188239 *Qty: 1 Bracket Call
Location: 19 Prev | Next Part: 10440990 *Qty: 2 Bracket With Sheath $1.66
Location: 20 Prev | Next Part: 10441190 *Qty: 2 Bracket With Sheath $0.90

* Quantity shown indicates the number of pieces used in the diagram.
