CRANKCASE

Go to Split View

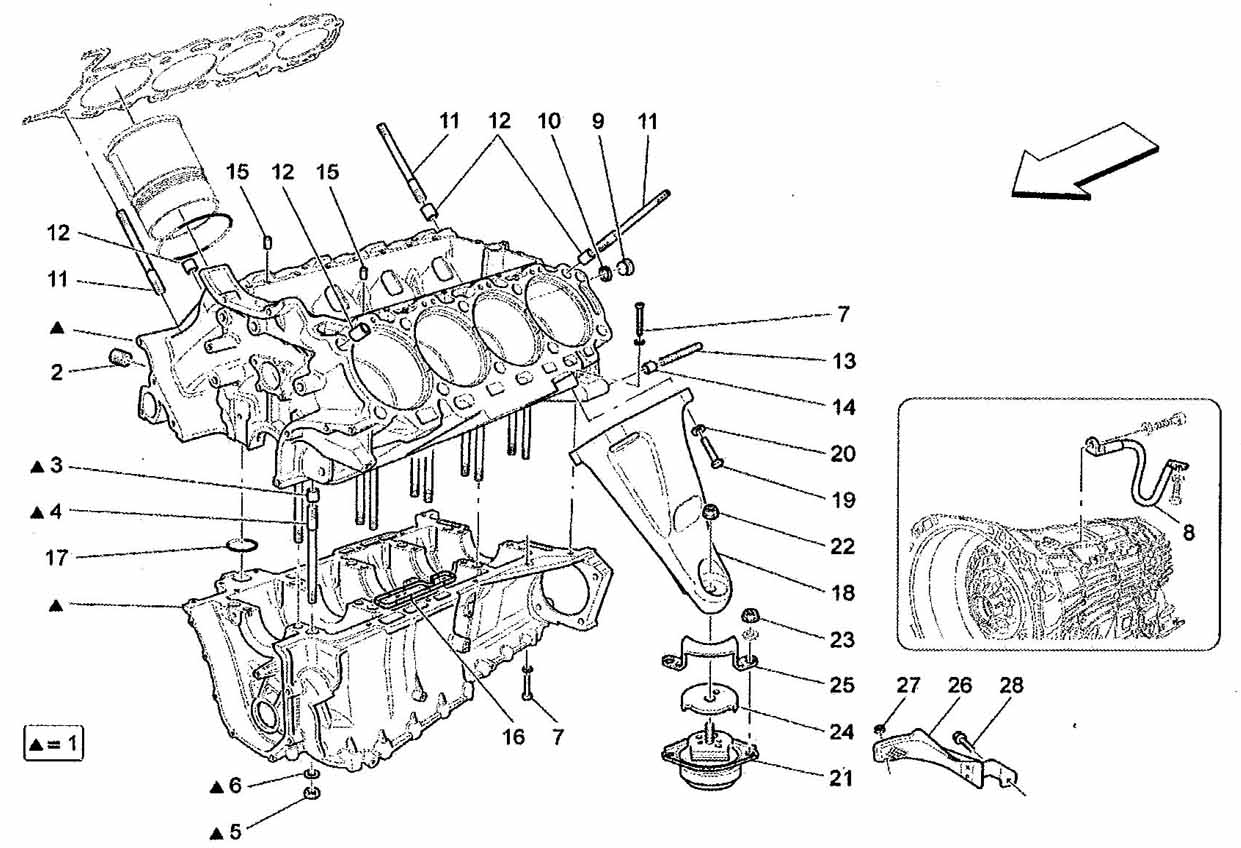

CRANKCASE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 739008000 *Qty: 1 Complete Engine $40,305.65
Location: - Prev | Next Part: 985000073 *Qty: 1 985000073 Revised Engine Specify Car Serial Number In The Order $20,442.10
Location: - Prev | Next Part: 980020011 *Qty: 1 Cylinder Heads Gasket Revision Kit $688.47
Location: - Prev | Next Part: 980020013 *Qty: 1 Crankcase Gasket Revision Kit $248.47
Location: - Prev | Next Part: 739008000 *Qty: 1 Complete Engine $40,305.65
Location: - Prev | Next Part: 985000073 *Qty: 1 Revised Engine Specify Car Serial Number In The Order $20,442.10
Location: 1 Prev | Next Part: 230733 *Qty: 1 Complete Crankcase $3,264.24
Location: 1 Prev | Next Part: 239671 *Qty: 1 Complete Crankcase $3,150.56
Location: 2 Prev | Next Part: 14325340 *Qty: 2 Threaded Plug $8.69
Location: 4 Prev | Next Part: 217796 *Qty: 8 Stud M12x1.75 Gambo M10x1.25 $5.16
Location: 4 Prev | Next Part: 219801 *Qty: 2 Stud M12x1.75 Gambo M10x1.25 $8.43
Location: 4 Prev | Next Part: 217794 *Qty: 8 Stud Length 154mm $5.54
Location: 4 Prev | Next Part: 219800 *Qty: 2 Stud Length 184mm $8.60
Location: 4 Prev | Next Part: 217796 *Qty: 8 Stud Length 139mm $5.16
Location: 4 Prev | Next Part: 219801 *Qty: 2 Stud Length 169mm $8.43
Location: 5 Prev | Next Part: 133988 *Qty: 20 Nut $0.90
Location: 6 Prev | Next Part: 178348 *Qty: 20 Washer $0.90
Location: 7 Prev | Next Part: 231620 *Qty: 13 Screw M6x25 $0.90
Location: 7 Prev | Next Part: 231623 *Qty: 2 Screw M6x40 $0.90
Location: 7 Prev | Next Part: 231620 *Qty: 13 Screw M 6x25 $0.90
Location: 7 Prev | Next Part: 231623 *Qty: 2 Screw M 6x40 $0.90
Location: 8 Prev | Next Part: 268886 *Qty: 1 Cable For Engine-Frame Earth Call
Location: 9 Prev | Next Part: 10275011 *Qty: 1 Threaded Plug $2.01
Location: 9 Prev | Next Part: 10304511 *Qty: 1 Threaded Plug $2.44
Location: 10 Prev | Next Part: 10263460 *Qty: 1 Gasket Superseded
Location: 11 Prev | Next Part: 217968 *Qty: 20 Stud $7.02
Location: 12 Prev | Next Part: 185360 *Qty: 4 Centering Dowel $3.06
Location: 13 Prev | Next Part: 13546934 *Qty: 5 Stud M 10x1.25x20 $1.86
Location: 13 Prev | Next Part: 13547034 *Qty: 1 Stud M 10x1.25x20 $2.38
Location: 13 Prev | Next Part: 13547134 *Qty: 2 Prigioniero M 10x1.25x20 Gambo 60 $2.41
Location: 13 Prev | Next Part: 13546934 *Qty: 5 Stud Stud Bolt Length 50mm $1.86
Location: 13 Prev | Next Part: 13547034 *Qty: 1 Stud Stud Bolt Length 55mm $2.38
Location: 13 Prev | Next Part: 13547134 *Qty: 2 Stud Stud Bolt Length 60mm $2.41
Location: 14 Prev | Next Part: 100052 *Qty: 2 Centering Dowel $2.42
Location: 15 Prev | Next Part: 177727 *Qty: 2 Centering Dowel $2.66
Location: 16 Prev | Next Part: 231335 *Qty: 2 Gasket $5.87
Location: 16 Prev | Next Part: 236143 *Qty: 2 Gasket $6.82
Location: 17 Prev | Next Part: 140071 *Qty: 1 O.R. Gasket $0.90
Location: 18 Prev | Next Part: 222317 *Qty: 1 L.H. Bracket For Motor Fixing Call
Location: 18 Prev | Next Part: 222316 *Qty: 1 R.H. Bracket For Motor Fixing Call
Location: 19 Prev | Next Part: 11306934 *Qty: 8 Screw $0.90
Location: 20 Prev | Next Part: 11190574 *Qty: 8 Washer $0.90
Location: 21 Prev | Next Part: 226572 *Qty: 2 Engine Support Flexible Pad $243.30
Location: 22 Prev | Next Part: 177018 *Qty: 2 Nut $1.28
Location: 23 Prev | Next Part: 177764 *Qty: 4 Nut $0.90
Location: 24 Prev | Next Part: 196590 *Qty: 2 Upper Protection For Engine Pad $6.30
Location: 25 Prev | Next Part: 198530 *Qty: 2 Bracket $12.25
Location: 26 Prev | Next Part: 227526 *Qty: 1 L.H. Heat Shield $60.57
Location: 26 Prev | Next Part: 227525 *Qty: 1 R.H. Heat Shield $55.91
Location: 27 Prev | Next Part: 14058411 *Qty: 2 Nut Superseded
Location: 28 Prev | Next Part: 13833011 *Qty: 2 Screw $0.90

* Quantity shown indicates the number of pieces used in the diagram.
