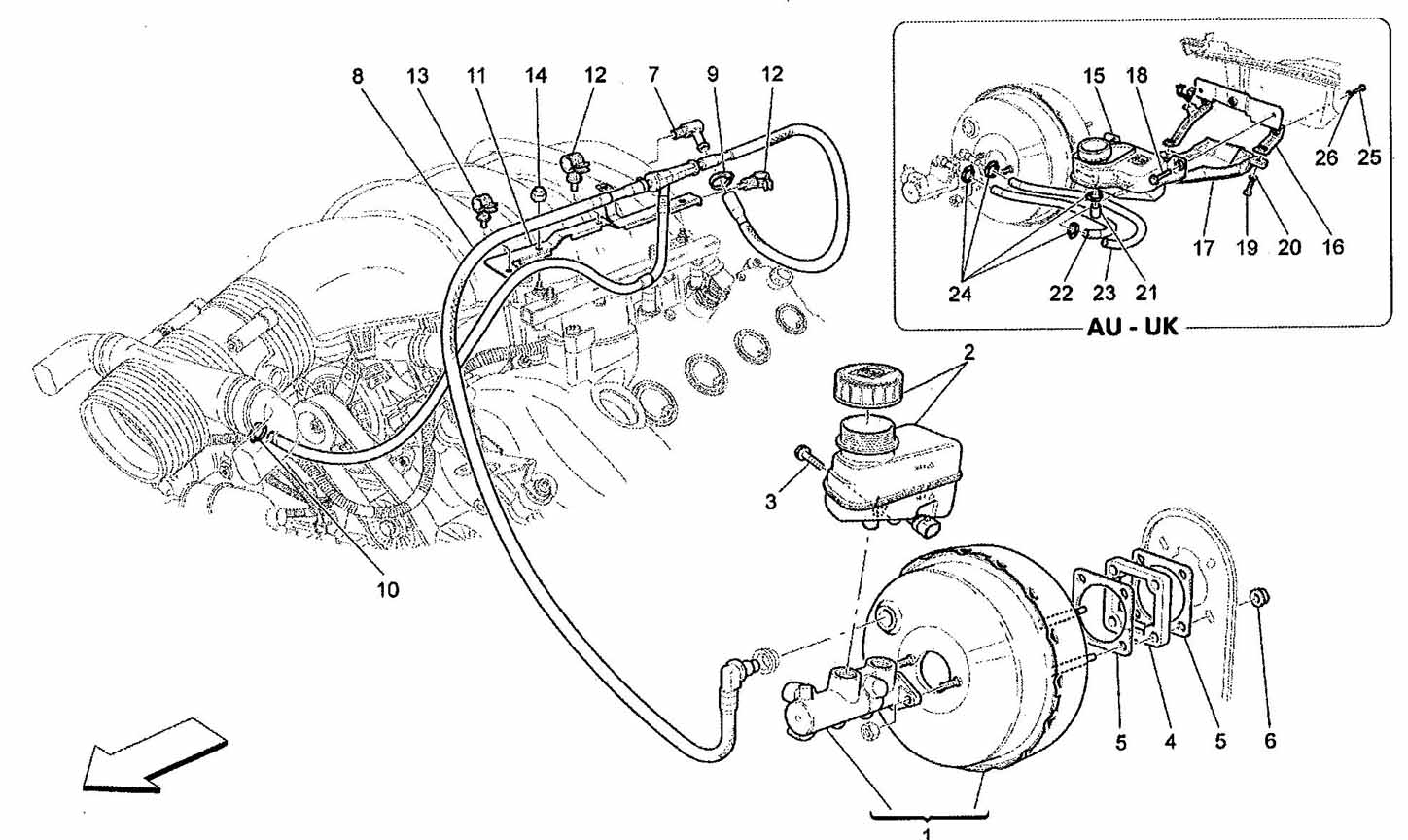

BRAKE SERVO SYSTEM
| Location | Part # | Quantity* | Description | Price | Add To Cart |
|---|---|---|---|---|---|
| 1 | 209079 | 1 | Complete Brake Booster | $2,309.31 | |
| 2 | 234976 | 1 | Oil Brakepan | $362.33 | |
| 3 | 16284914 | 1 | Screw | $0.90 | |
| 4 | 190379 | 1 | Spacer | $17.46 | |
| 5 | 190378 | 2 | Gasket | $1.28 | |
| 6 | 12578211 | 4 | Nut | Unavailable | |
| 7 | 124342 | 1 | Threaded Union | $7.06 | |
| 8 | 227254 | 1 | Complete Depression Pipe | $170.34 | |
| 9 | 13432070 | 1 | Collar | Unavailable | |
| 10 | 13432270 | 1 | Screw Collar | Unavailable | |
| 11 | 232640 | 1 | L.H. Bracket | $35.89 | |
| 12 | 206536 | 2 | Clip | Unavailable | |
| 13 | 67063200 | 1 | Clip | $1.40 | |
| 14 | 14040715 | 2 | Nut | $1.99 |
* Quantity shown indicates the number of pieces used in the diagram.
