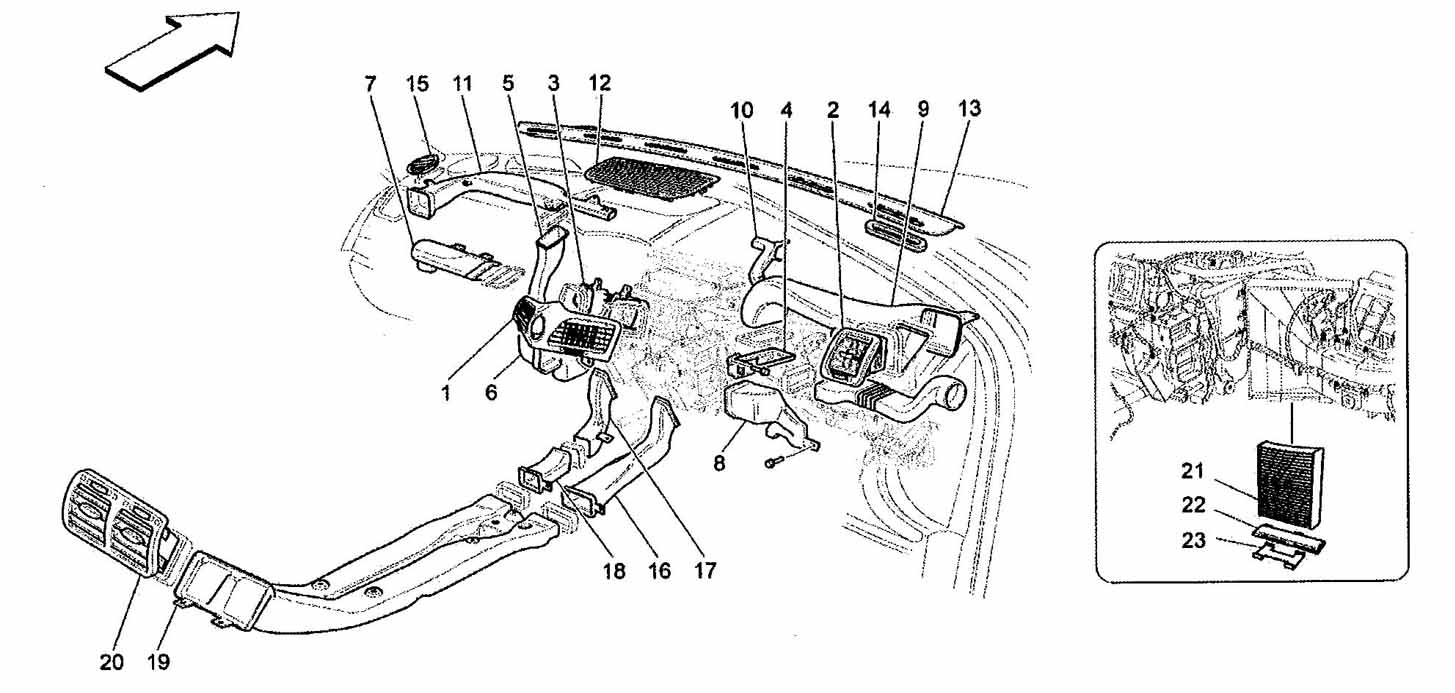

A/C – DIFFUSION

Go to Split View

A/C – DIFFUSION

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 68233000 *Qty: 1 Central Opening $144.77
Location: 2 Prev | Next Part: 68238500 *Qty: 2 Lateral Air Opening $139.42
Location: 3 Prev | Next Part: 68487000 *Qty: 1 Central Opening Pipe Call
Location: 4 Prev | Next Part: 81269800 *Qty: 1 Central Opening Pipe R.H. Side Call
Location: 5 Prev | Next Part: 66524900 *Qty: 1 L.H. Central Opening Union L.H. Side $43.69
Location: 6 Prev | Next Part: 68867600 *Qty: 1 L.H. Air Ducting L.H. Side Call
Location: 7 Prev | Next Part: 68487500 *Qty: 1 L.H. Air Ducting Union L.H. Side Call
Location: 8 Prev | Next Part: 68867500 *Qty: 1 R.H. Air Ducting R.H. Side Call
Location: 9 Prev | Next Part: 81270600 *Qty: 1 R.H. Lateral Opening Air Ducting R.H. Side Call
Location: 10 Prev | Next Part: 81325300 *Qty: 1 R.H. Union Call
Location: 11 Prev | Next Part: 68628500 *Qty: 1 L.H. Lateral Opening Air Ducting L.H. Side Call
Location: 12 Prev | Next Part: 69991900 *Qty: 1 Central Air Diffuser $82.82
Location: 13 Prev | Next Part: 68236100 *Qty: 1 Defroster Plate $127.51
Location: 14 Prev | Next Part: 68700500 *Qty: 6 Gasket Call
Location: 15 Prev | Next Part: 68236400 *Qty: 2 Defroster Grill Call
Location: 16 Prev | Next Part: 69993200 *Qty: 1 R.H. Union $69.02
Location: 17 Prev | Next Part: 69290900 *Qty: 1 L.H. Union Call
Location: 18 Prev | Next Part: 69993100 *Qty: 1 Union Call
Location: 19 Prev | Next Part: 69886500 *Qty: 1 Rear Air Opening Ducting Call
Location: 20 Prev | Next Part: 67211900 *Qty: 1 Rear Air Opening $151.84
Location: 21 Prev | Next Part: 66855200 *Qty: 1 Anti-Pollen Filter $100.70
Location: 22 Prev | Next Part: 68390600 *Qty: 1 Filter Cover $39.55
Location: 23 Prev | Next Part: 68390700 *Qty: 1 Cover Fixing $53.39

* Quantity shown indicates the number of pieces used in the diagram.
