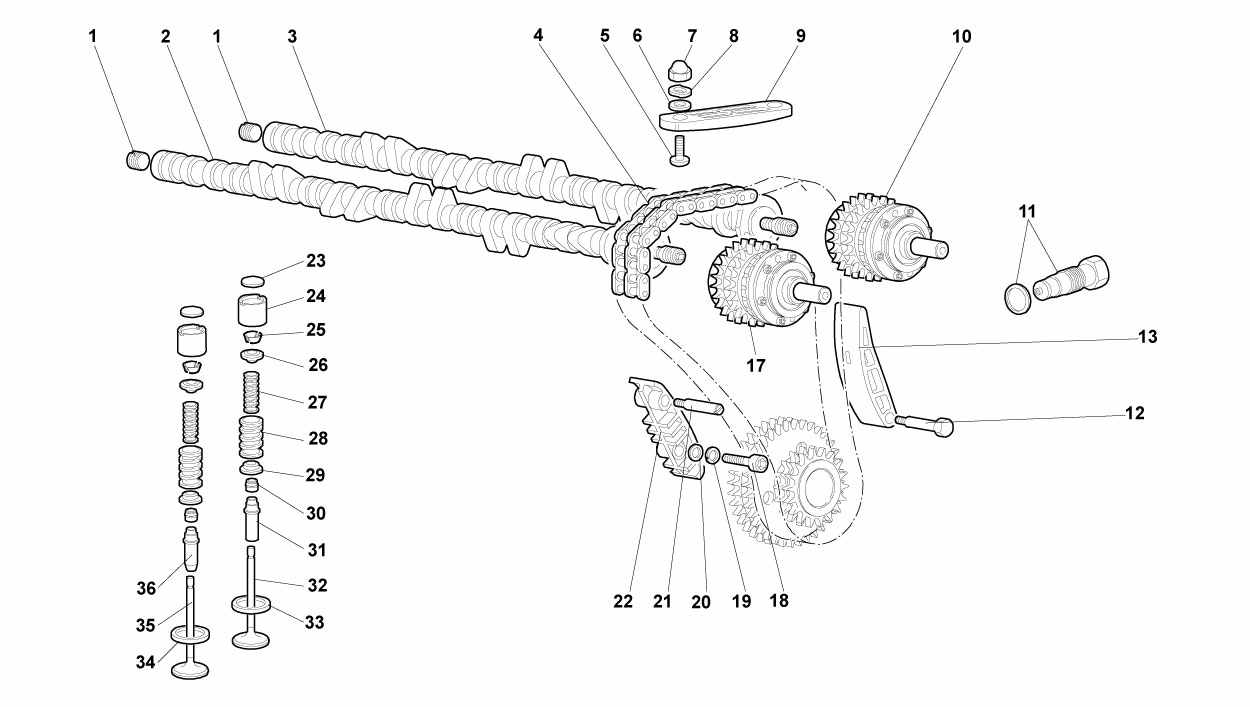

LEFT HEAD TIMING SYSTEM

LEFT HEAD TIMING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 8931409 2 PLUG Unavailable
2 7M109021 1 INTAKE CAMSHAFT Unavailable
3 7M109021A 1 EXHAUST CAMSHAFT Unavailable
4 7M109231 1 UPPER TIMING CHAIN Unavailable
5 8700682 2 SCREW Unavailable
6 WHT003041 2 WASHER Unavailable
7 8200605 2 NUT Unavailable
8 WHT001197 2 WASHER Unavailable
9 7M109513 1 SHOE Unavailable
10 7M109084 1 PHASE TRANSFORMER Unavailable
11 7M109255 1 CHAIN TIGHTENER Unavailable
12 7M109225A 1 JOURNAL Unavailable
13 7M109508 1 SHOE Unavailable
17 7M109083 1 PHASE TRANSFORMER Unavailable
18 WHT003071 1 SCREW Unavailable
19 8410820 1 WASHER Unavailable
20 8400816 1 WASHER Unavailable
21 7M109224 1 JOURNAL Unavailable
22 7M109469 1 SHOE Unavailable
23 7M109320A 24 3.30 MM ADJUSTMENT SHIM Unavailable
23 7M109320N 24 3.90 MM ADJUSTMENT SHIM Unavailable
23 7M109320A 24 4.45 MM ADJUSTMENT SHIM Unavailable
23 7M109320B 24 3.35 MM ADJUSTMENT SHIM Unavailable
23 7M109320P 24 3.95 MM ADJUSTMENT SHIM Unavailable
23 7M109320A 24 4.50 MM ADJUSTMENT SHIM Unavailable
23 7M109320C 24 3.40 MM ADJUSTMENT SHIM Unavailable
23 7M109320Q 24 4.00 MM ADJUSTMENT SHIM Unavailable
23 7M109320A 24 4.55 MM ADJUSTMENT SHIM Unavailable
23 7M109320D 24 3.45 MM ADJUSTMENT SHIM Unavailable
23 7M109320R 24 4.05 MM ADJUSTMENT SHIM Unavailable
23 7M109320A 24 4.60 MM ADJUSTMENT SHIM Unavailable
23 7M109320E 24 3.50 MM ADJUSTMENT SHIM Unavailable
23 7M109320S 24 4.10 MM ADJUSTMENT SHIM Unavailable
23 7M109320A 24 4.65 MM ADJUSTMENT SHIM Unavailable
23 7M109320F 24 3.55 MM ADJUSTMENT SHIM Unavailable
23 7M109320T 24 4.15 MM ADJUSTMENT SHIM Unavailable
23 7M109320A 24 4.70 MM ADJUSTMENT SHIM Unavailable
23 7M109320H 24 3.65 MM ADJUSTMENT SHIM Unavailable
23 7M109320A 24 4.20 MM ADJUSTMENT SHIM Unavailable
23 7M109320J 24 3.70 MM ADJUSTMENT SHIM Unavailable
23 7M109320A 24 4.25 MM ADJUSTMENT SHIM Unavailable
23 7M109320K 24 3.75 MM ADJUSTMENT SHIM Unavailable
23 7M109320A 24 4.30 MM ADJUSTMENT SHIM Unavailable
23 7M109320G 24 3-60 MM ADJUSTMENT SHIM Unavailable
23 7M109320L 24 3.80 MM ADJUSTMENT SHIM Unavailable
23 7M109320A 24 4.35 MM ADJUSTMENT SHIM Unavailable
23 7M109320 24 3.25 MM ADJUSTMENT SHIM Unavailable
23 7M109320M 24 3.85 MM ADJUSTMENT SHIM Unavailable
23 7M109320A 24 4.40 MM ADJUSTMENT SHIM Unavailable
24 7M109309 24 VALVE CONTROL TAPPET Unavailable
25 7M109651 48 VALVE COTTER Unavailable
26 7M109641 24 TAPPET UPPER PLATE Unavailable
27 7M109633A 24 INNER SPRING Unavailable
28 7M109623A 24 OUTER SPRING Unavailable
29 7M109642 24 TAPPET LOWER PLATE Unavailable
30 7M109675 24 SEAL RING Unavailable
31 1238320 12 EXHAUST VALVE GUIDE Unavailable
32 7M109611 12 EXHAUST VALVE Unavailable
33 7M103441 12 EXHAUST VALVE SEAT Unavailable
34 7M103431 12 INTAKE VALVE SEAT Unavailable
35 7M109601 12 INTAKE VALVE Unavailable
36 1238321 12 INTAKE VALVE GUIDE Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
