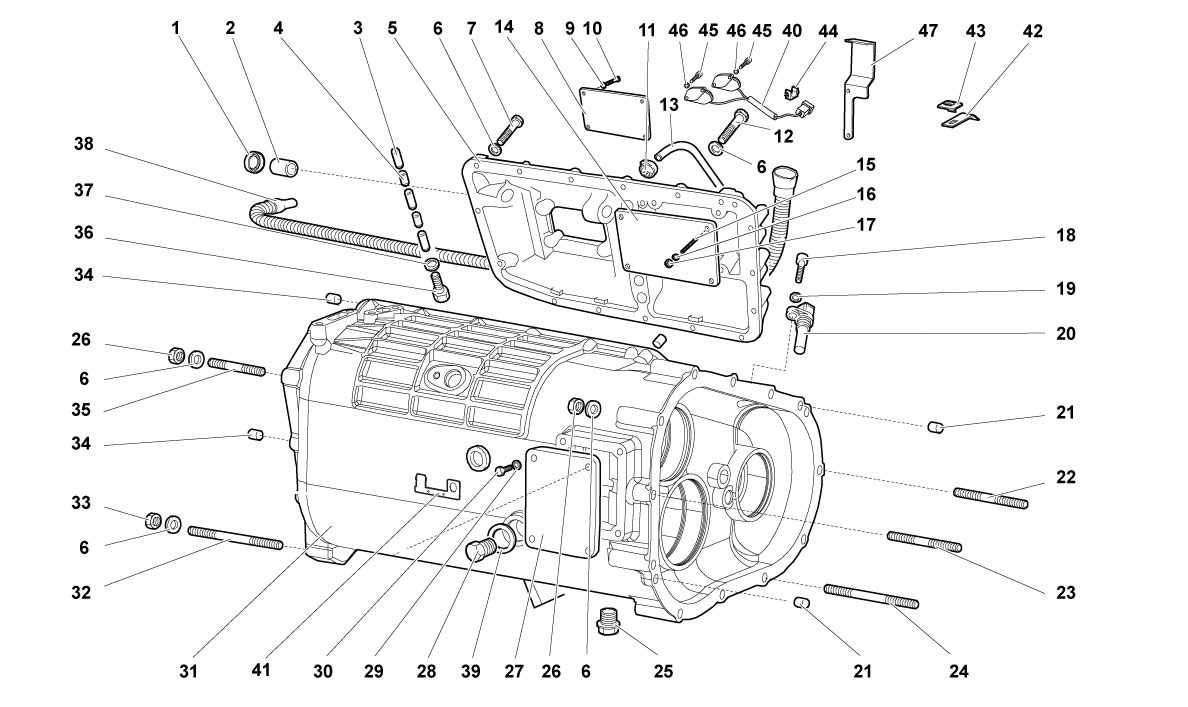

GEARBOX

Go to Split View

GEARBOX

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86311520 *Qty: 1 SEAL RING Unavailable
Location: 2 Prev | Next Part: 86311621 *Qty: 1 BUSHING Unavailable
Location: 3 Prev | Next Part: 86311281A *Qty: 3 PAWL Unavailable
Location: 4 Prev | Next Part: 86311281B *Qty: 2 PAWL Unavailable
Location: 5 Prev | Next Part: 86301201C *Qty: 1 COVER (E-GEAR) Unavailable
Location: 5 Prev | Next Part: 86301201B *Qty: 1 COVER (MANUAL GEARBOX) Unavailable
Location: 6 Prev | Next Part: WHT000771 *Qty: 18 WASHER Unavailable
Location: 7 Prev | Next Part: 8100658 *Qty: 6 SCREW Unavailable
Location: 8 Prev | Next Part: 86301465A *Qty: 1 COVER (E-GEAR) Unavailable
Location: 8 Prev | Next Part: 86301465 *Qty: 1 COVER (MANUAL GEARBOX) Unavailable
Location: 9 Prev | Next Part: WHT001197 *Qty: 4 WASHER Unavailable
Location: 10 Prev | Next Part: 8100630 *Qty: 4 SCREW Unavailable
Location: 11 Prev | Next Part: 8830128 *Qty: 1 CLAMP Unavailable
Location: 12 Prev | Next Part: 8100629 *Qty: 12 SCREW Unavailable
Location: 13 Prev | Next Part: 86301472 *Qty: 1 BREATHER PIPE Unavailable
Location: 14 Prev | Next Part: 86301827 *Qty: 1 COVER Unavailable
Location: 15 Prev | Next Part: 8300667 *Qty: 4 STUD BOLT Unavailable
Location: 17 Prev | Next Part: 8200616 *Qty: 4 NUT Unavailable
Location: 18 Prev | Next Part: N0147035 *Qty: 2 SCREW Unavailable
Location: 19 Prev | Next Part: WHT001197 *Qty: 2 WASHER Unavailable
Location: 20 Prev | Next Part: 86927321 *Qty: 2 TIMING SENSOR Unavailable
Location: 21 Prev | Next Part: WHT003078 *Qty: 2 DOWEL Unavailable
Location: 22 Prev | Next Part: 8300826 *Qty: 1 STUD BOLT Unavailable
Location: 23 Prev | Next Part: 8300807 *Qty: 1 STUD BOLT Unavailable
Location: 24 Prev | Next Part: 8300827 *Qty: 10 STUD BOLT Unavailable
Location: 25 Prev | Next Part: 86301141 *Qty: 1 MAGNETIC PLUG Unavailable
Location: 26 Prev | Next Part: 8200806 *Qty: 7 NUT Unavailable
Location: 26 Prev | Next Part: 8200806 *Qty: 8 NUT Unavailable
Location: 27 Prev | Next Part: 86301173 *Qty: 1 COVER Unavailable
Location: 28 Prev | Next Part: 86301141 *Qty: 1 MAGNETIC PLUG Unavailable
Location: 29 Prev | Next Part: WHT001197 *Qty: 4 WASHER Unavailable
Location: 30 Prev | Next Part: 8100601 *Qty: 4 SCREW Unavailable
Location: 31 Prev | Next Part: 86301103F *Qty: 1 6-GEAR MANUAL TRANSMISSION CASE Unavailable
Location: 32 Prev | Next Part: 8300807 *Qty: 1 STUD BOLT Unavailable
Location: 33 Prev | Next Part: 8200821 *Qty: 1 NUT Unavailable
Location: 34 Prev | Next Part: WHT003078 *Qty: 2 DOWEL Unavailable
Location: 35 Prev | Next Part: 8300803 *Qty: 8 STUD BOLT Unavailable
Location: 36 Prev | Next Part: 8100826 *Qty: 1 SCREW Unavailable
Location: 37 Prev | Next Part: N0138302 *Qty: 1 WASHER Unavailable
Location: 38 Prev | Next Part: 61009109 *Qty: 1 WIRING HARNESS (MANUAL GEARBOX) Unavailable
Location: 39 Prev | Next Part: N0138271 *Qty: 1 GASKET Unavailable
Location: 40 Prev | Next Part: 86927321A *Qty: 1 E-GEAR SENSOR Unavailable
Location: 41 Prev | Next Part: 400326138 *Qty: 1 SUPPORT Unavailable
Location: 42 Prev | Next Part: 400971890 *Qty: 1 BRACKET Unavailable
Location: 43 Prev | Next Part: 1J0937510A *Qty: 1 SUPPORT Unavailable
Location: 44 Prev | Next Part: 410868630 *Qty: 2 BRACKET Unavailable
Location: 45 Prev | Next Part: 8700476 *Qty: 4 SCREW Unavailable
Location: 46 Prev | Next Part: 8410405 *Qty: 4 WASHER Unavailable
Location: 47 Prev | Next Part: 86301327A *Qty: 1 PROTECTION (E-GEAR) Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
