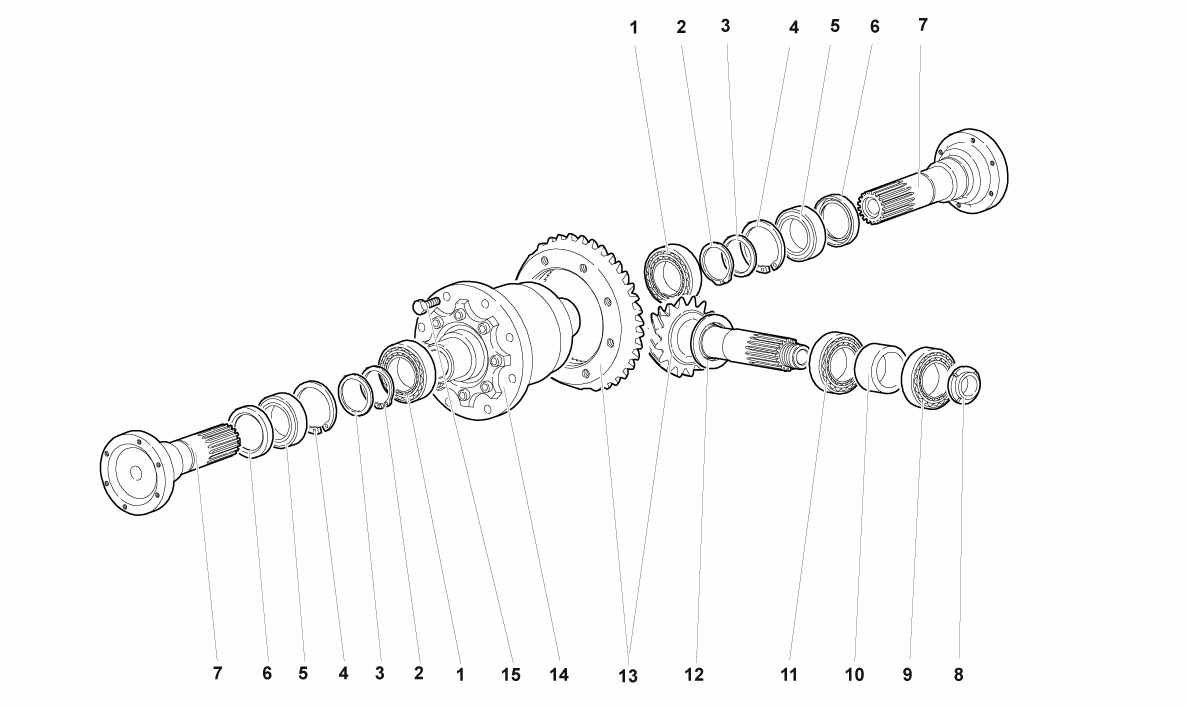

FRONT DIFFERENTIAL

Go to Split View

FRONT DIFFERENTIAL

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 1S409123A *Qty: 2 BEARING $52.09
Location: 2 Prev | Next Part: 8582701 *Qty: 2 RETAINING RING $0.90
Location: 3 Prev | Next Part: 1S409228 *Qty: 2 SPACER $20.95
Location: 4 Prev | Next Part: N0123191 *Qty: 2 RETAINING RING $4.30
Location: 5 Prev | Next Part: 1S409144 *Qty: 2 BEARING $33.15
Location: 6 Prev | Next Part: 1S409209 *Qty: 2 SEAL RING $46.38
Location: 7 Prev | Next Part: 1S409355A *Qty: 2 FLANGE $1,036.35
Location: 8 Prev | Next Part: 1S409739 *Qty: 1 RING NUT $157.86
Location: 9 Prev | Next Part: 1S409563 *Qty: 1 BEARING $57.92
Location: 10 Prev | Next Part: 1S409223K *Qty: 1 16.90 SPACER $37.27
Location: 10 Prev | Next Part: 1S409223L *Qty: 1 16.95 SPACER $37.27
Location: 10 Prev | Next Part: 1S409223M *Qty: 1 17.00 SPACER $37.27
Location: 10 Prev | Next Part: 1S409223N *Qty: 1 17.05 SPACER $37.27
Location: 10 Prev | Next Part: 1S409223P *Qty: 1 17.10 SPACER $37.27
Location: 10 Prev | Next Part: 1S409223Q *Qty: 1 17.15 SPACER $37.27
Location: 10 Prev | Next Part: 1S409223R *Qty: 1 17.20 SPACER $37.27
Location: 10 Prev | Next Part: 1S409223A *Qty: 1 16.45 SPACER $84.03
Location: 10 Prev | Next Part: 1S409223B *Qty: 1 16.50 SPACER $84.03
Location: 10 Prev | Next Part: 1S409223C *Qty: 1 16.55 SPACER $84.03
Location: 10 Prev | Next Part: 1S409223D *Qty: 1 16.60 SPACER $84.03
Location: 10 Prev | Next Part: 1S409223E *Qty: 1 16.65 SPACER $84.03
Location: 10 Prev | Next Part: 1S409223F *Qty: 1 16.70 SPACER $37.27
Location: 10 Prev | Next Part: 1S409223G *Qty: 1 16.75 SPACER $48.45
Location: 10 Prev | Next Part: 1S409223H *Qty: 1 16.80 SPACER $58.90
Location: 10 Prev | Next Part: 1S409223J *Qty: 1 16.85 SPACER $37.27
Location: 11 Prev | Next Part: B9525193 *Qty: 1 BEARING $98.60
Location: 12 Prev | Next Part: 1S409227D *Qty: 1 0.15 ADJUSTMENT SHIM $3.60
Location: 12 Prev | Next Part: 1S409227C *Qty: 1 0.20 ADJUSTMENT SHIM $3.09
Location: 12 Prev | Next Part: 1S409227B *Qty: 1 0.25 ADJUSTMENT SHIM $2.99
Location: 12 Prev | Next Part: 1S409227A *Qty: 1 0.3 ADJUSTMENT SHIM $3.09
Location: 12 Prev | Next Part: 1S409227 *Qty: 3 0.5 ADJUSTMENT SHIM $3.44
Location: 13 Prev | Next Part: 1S409143B *Qty: 1 BEVEL GEAR PAIR $2,742.10
Location: 14 Prev | Next Part: 1S409755A *Qty: 1 FRONT DIFFERENTIAL $6,474.20
Location: 15 Prev | Next Part: 8101062 *Qty: 8 SCREW $4.65

* Quantity shown indicates the number of pieces used in the diagram.
