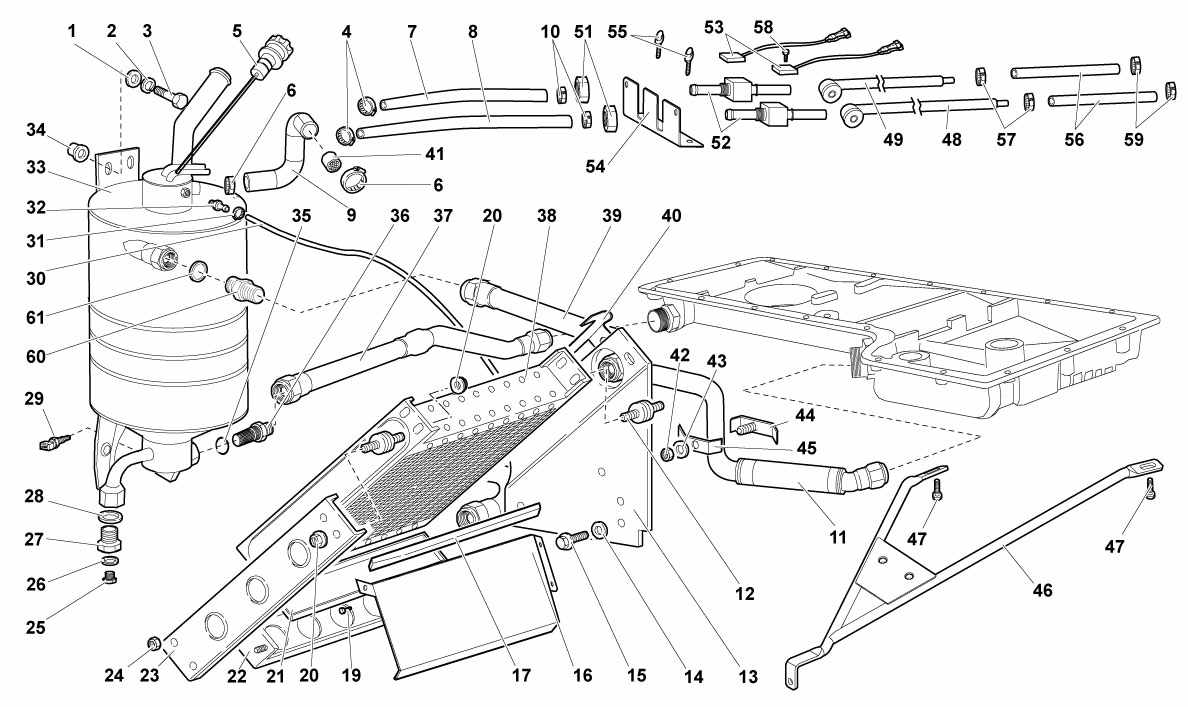

ENGINE OIL SYSTEM

Go to Split View

ENGINE OIL SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8400814 *Qty: 3 WASHER $0.90
Location: 2 Prev | Next Part: N0152785 *Qty: 3 WASHER $0.90
Location: 3 Prev | Next Part: 8100827 *Qty: 3 SCREW $0.90
Location: 4 Prev | Next Part: N10233401 *Qty: 2 CLAMP $2.15
Location: 5 Prev | Next Part: 7M115311B *Qty: 1 PLUG $861.69
Location: 6 Prev | Next Part: 8830128 *Qty: 2 CLAMP $0.90
Location: 7 Prev | Next Part: 7M115310 *Qty: 1 PIPE (RIGHT CYLINDER HEAD) $45.46
Location: 8 Prev | Next Part: 7M115309 *Qty: 1 PIPE (LEFT CYLINDER HEAD) $59.09
Location: 9 Prev | Next Part: 7M115657A *Qty: 1 PIPE $170.88
Location: 10 Prev | Next Part: N10233401 *Qty: 2 CLAMP $2.15
Location: 11 Prev | Next Part: 7M117413 *Qty: 1 PIPE $1,145.22
Location: 12 Prev | Next Part: 8920602 *Qty: 3 FLEXIBLE SUPPORT $10.00
Location: 13 Prev | Next Part: 410813404 *Qty: 1 SHEET $65.42
Location: 14 Prev | Next Part: 8400607 *Qty: 4 WASHER $0.90
Location: 15 Prev | Next Part: 8700663 *Qty: 4 SCREW $0.90
Location: 16 Prev | Next Part: 7M119275 *Qty: 1 PANEL $274.23
Location: 17 Prev | Next Part: 7M119467 *Qty: 1 GASKET $73.84
Location: 19 Prev | Next Part: 8700463 *Qty: 1 SCREW $1.30
Location: 20 Prev | Next Part: 8200614 *Qty: 6 NUT $0.90
Location: 21 Prev | Next Part: 410117079 *Qty: 1 OIL RADIATOR RUBBER SUPPORT $7.31
Location: 22 Prev | Next Part: 410117095 *Qty: 1 SHEET $369.15
Location: 23 Prev | Next Part: 410117141 *Qty: 1 BRACKET $52.25
Location: 24 Prev | Next Part: 8200513 *Qty: 2 NUT $0.90
Location: 25 Prev | Next Part: 400131737 *Qty: 1 PLUG $6.95
Location: 26 Prev | Next Part: 8401819 *Qty: 1 WASHER $0.90
Location: 27 Prev | Next Part: 7M115707A *Qty: 1 CONNECTOR $50.90
Location: 28 Prev | Next Part: WHT003050 *Qty: 1 WASHER $1.61
Location: 29 Prev | Next Part: 7L919501A *Qty: 1 CA.0005430.C TEMPERATURE SENSOR $125.25
Location: 30 Prev | Next Part: 7M115655 *Qty: 1 PIPE $105.27
Location: 31 Prev | Next Part: N90442501 *Qty: 2 CLAMP $3.14
Location: 32 Prev | Next Part: *Qty: 0 CONNECTOR (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 33 Prev | Next Part: 7M115373 *Qty: 1 OIL TANK $1,437.75
Location: 34 Prev | Next Part: 410814939 *Qty: 3 BUSHING $5.68
Location: 35 Prev | Next Part: 8403901 *Qty: 1 WASHER $13.90
Location: 36 Prev | Next Part: 7M115157 *Qty: 1 CONNECTOR $470.91
Location: 37 Prev | Next Part: 7M115688 *Qty: 1 PIPE $293.23
Location: 38 Prev | Next Part: 7M117021 *Qty: 1 OIL RADIATOR $2,954.47
Location: 39 Prev | Next Part: 7M115689 *Qty: 1 PIPE $301.58
Location: 40 Prev | Next Part: 410813271 *Qty: 1 OIL RADIATOR AIR CONVEYOR FIXING ROD $116.03
Location: 41 Prev | Next Part: 7L129793 *Qty: 1 FLAME TRAP $40.10
Location: 42 Prev | Next Part: N01118312 *Qty: 1 NUT M6 $0.90
Location: 43 Prev | Next Part: 8400631 *Qty: 1 WASHER $0.90
Location: 44 Prev | Next Part: 7M115633 *Qty: 1 BRACKET $19.88
Location: 45 Prev | Next Part: 7M115634A *Qty: 1 BRACKET $17.23
Location: 46 Prev | Next Part: 410117073 *Qty: 1 BRACKET $308.18
Location: 47 Prev | Next Part: N10718801 *Qty: 2 SCREW M6X16 $0.90
Location: 48 Prev | Next Part: 7M115663 *Qty: 1 PIPE (LEFT CYLINDER HEAD) $98.46
Location: 49 Prev | Next Part: 7M115664 *Qty: 1 PIPE (RIGHT CYLINDER HEAD) $92.54
Location: 51 Prev | Next Part: 8201607 *Qty: 2 NUT $1.53
Location: 52 Prev | Next Part: 7L115157 *Qty: 2 CONNECTOR $39.28
Location: 53 Prev | Next Part: 7L907457 *Qty: 2 MICROSWITCH $26.35
Location: 54 Prev | Next Part: 7M115261 *Qty: 1 BRACKET $46.35
Location: 55 Prev | Next Part: N90440702 *Qty: 2 NUT $0.90
Location: 56 Prev | Next Part: 7M115687 *Qty: 2 PIPE $27.28
Location: 57 Prev | Next Part: N90442501 *Qty: 2 CLAMP $3.14
Location: 58 Prev | Next Part: WHT000937 *Qty: 4 SCREW $0.90
Location: 59 Prev | Next Part: N10233401 *Qty: 2 CLAMP $2.15
Location: 60 Prev | Next Part: 400115707 *Qty: 1 CONNECTOR $23.32

* Quantity shown indicates the number of pieces used in the diagram.
