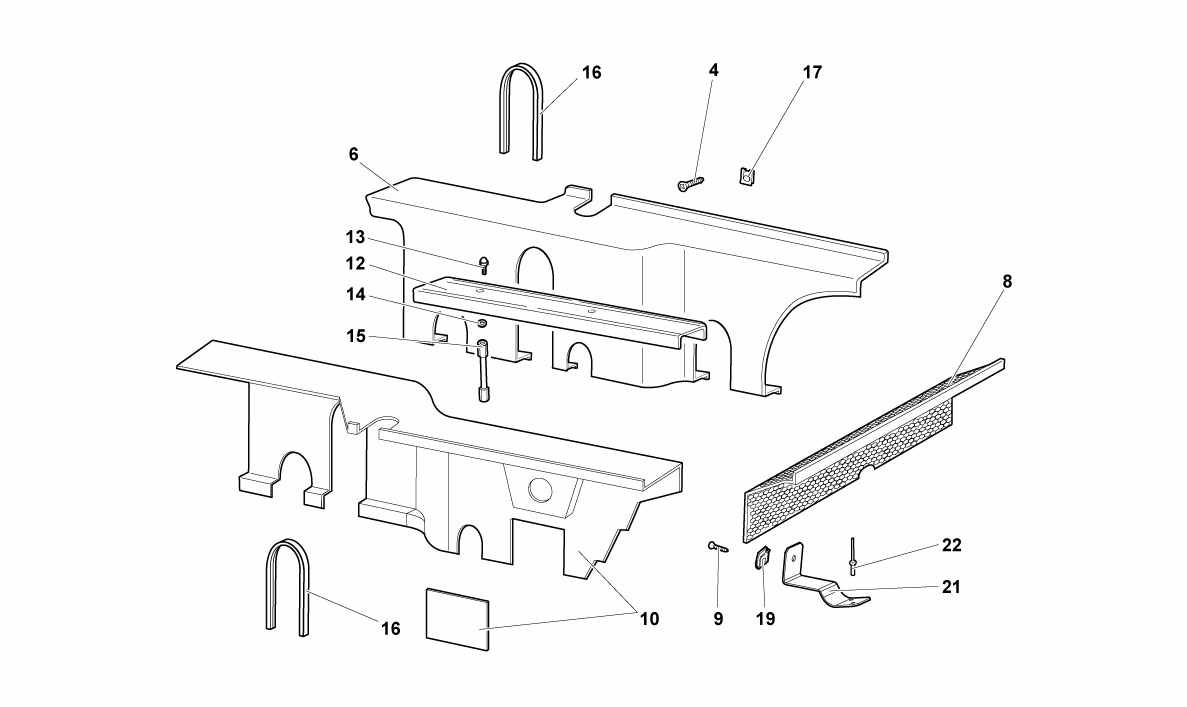

ENGINE COMPARTMENT PANELS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 4 Prev | Next Part: N0902661 *Qty: 18 SCREW $2.18
Location: 6 Prev | Next Part: 417103730 *Qty: 1 PAINTED BULKHEAD ON RIGHT SIDE IN ENGINE COMPARTMENT $4,358.98
Location: 8 Prev | Next Part: 417864878 *Qty: 1 AUXILIARY COMPONENTS COVERING GRID $549.43
Location: 9 Prev | Next Part: N0902661 *Qty: 4 SCREW $2.18
Location: 10 Prev | Next Part: 417103729 *Qty: 1 PAINTED BULKHEAD ON LEFT SIDE IN ENGINE COMPARTMENT $4,417.10
Location: 12 Prev | Next Part: 7M103926C *Qty: 1 FUEL PIPING COVER SET $2,047.69
Location: 13 Prev | Next Part: N90842903 *Qty: 4 SCREW $0.90
Location: 14 Prev | Next Part: 8400703 *Qty: 2 WASHER $0.90
Location: 15 Prev | Next Part: 7M103728 *Qty: 2 STUD $44.84
Location: 16 Prev | Next Part: 410103121 *Qty: 2 GASKET $61.40
Location: 17 Prev | Next Part: 8220402 *Qty: 8 CLIP $1.36
Location: 19 Prev | Next Part: 8220505 *Qty: 4 CLIP Call
Location: 21 Prev | Next Part: 410813988 *Qty: 4 BRACKET $6.08
Location: 22 Prev | Next Part: 410809864 *Qty: 8 RIVET $0.90

* Quantity shown indicates the number of pieces used in the diagram.
