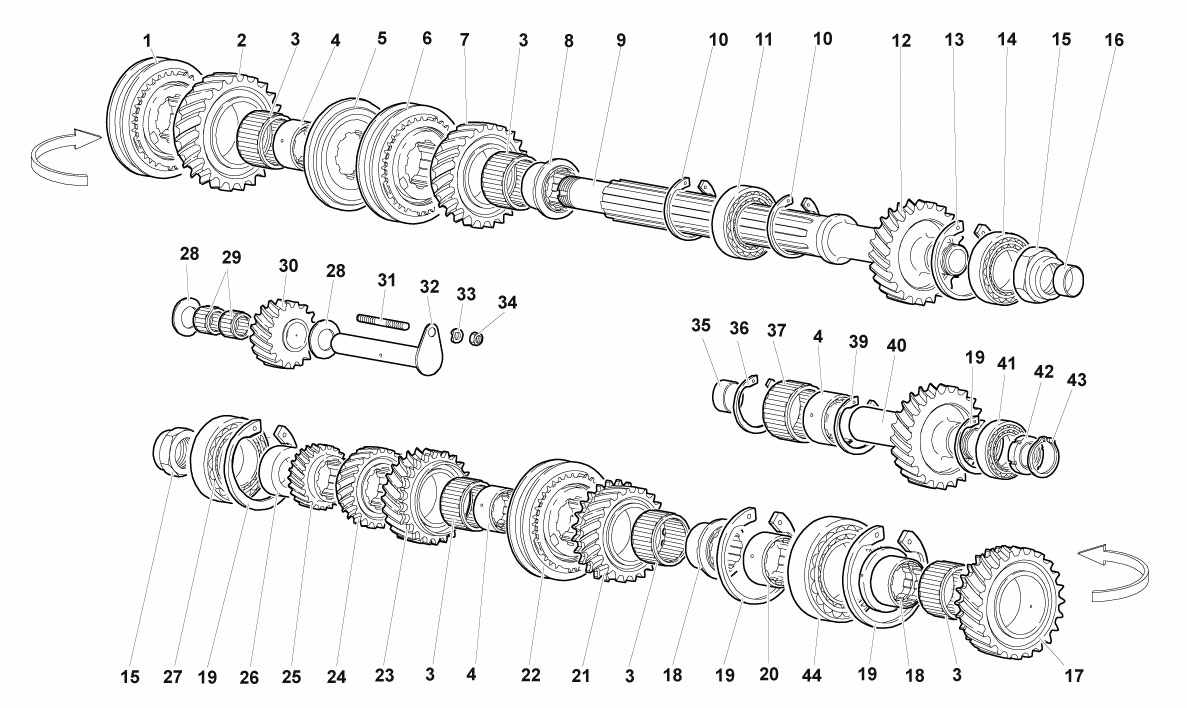

DRIVEN SHAFT

Go to Split View

DRIVEN SHAFT

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86311244B *Qty: 1 SYNCHRONIZER T.C. D.100+CROWN GEAR $1,412.41
Location: 2 Prev | Next Part: 86311250C *Qty: 1 FIRST GEAR ASSEMBLY (Order linked to the ref. 9 tav.24.05.00) $545.15
Location: 3 Prev | Next Part: 86311228A *Qty: 5 ROLLER CAGE $79.05
Location: 4 Prev | Next Part: 86301374A *Qty: 3 BUSHING $257.30
Location: 5 Prev | Next Part: 86311279 *Qty: 1 SHIM ADJUSTMENT $279.28
Location: 6 Prev | Next Part: 86311762B *Qty: 1 SYNCHRONIZING GEAR D.82 + CROWN GEAR $706.15
Location: 7 Prev | Next Part: 86311532C *Qty: 1 REVERSE GEAR ASSEMBLY + SYNCHRO $495.62
Location: 8 Prev | Next Part: 24007184 *Qty: 1 INNER RING $407.51
Location: 9 Prev | Next Part: 86311195G *Qty: 1 SHAFT $1,238.91
Location: 10 Prev | Next Part: WHT003585 *Qty: 2 SEAL RING $36.48
Location: 11 Prev | Next Part: 86301609 *Qty: 1 BEARING ?85 $142.43
Location: 12 Prev | Next Part: 86311348C *Qty: 1 GEAR $2,993.89
Location: 13 Prev | Next Part: WHT003573 *Qty: 1 RETAINING RING $2.07
Location: 14 Prev | Next Part: 86301897 *Qty: 1 BEARING $192.47
Location: 15 Prev | Next Part: 86301618 *Qty: 2 RING NUT $218.58
Location: 16 Prev | Next Part: 86311599 *Qty: 1 PLUG $21.38
Location: 17 Prev | Next Part: 86311270C *Qty: 1 FIRST GEAR ASSEMBLY $921.20
Location: 18 Prev | Next Part: 86311533A *Qty: 2 INNER RING $300.77
Location: 19 Prev | Next Part: WHT003584 *Qty: 4 SEAL RING $25.05
Location: 20 Prev | Next Part: 86311187B *Qty: 1 INNER RING $274.43
Location: 21 Prev | Next Part: 86311129A *Qty: 1 THIRD GEAR ASSEMBLY $3,665.60
Location: 22 Prev | Next Part: 86311309B *Qty: 1 SYNCHRONIZING GEAR D.71/76 + CROWN GEAR $1,129.91
Location: 23 Prev | Next Part: 86311145A *Qty: 1 FOURTH GEAR ASSEMBLY $2,773.18
Location: 24 Prev | Next Part: 86311153A *Qty: 1 FIFTH GEAR $533.07
Location: 25 Prev | Next Part: 86311165A *Qty: 1 SIXTH GEAR $514.24
Location: 26 Prev | Next Part: 86311876C *Qty: 1 SPACER $149.96
Location: 27 Prev | Next Part: 86301845 *Qty: 1 BEARING $59.13
Location: 28 Prev | Next Part: 86311388 *Qty: 2 SHIM ADJUSTMENT $29.20
Location: 29 Prev | Next Part: 86311770A *Qty: 2 ROLLER CAGE $35.55
Location: 30 Prev | Next Part: 86311531B *Qty: 1 REVERSE IDLE GEAR $533.07
Location: 31 Prev | Next Part: 8300610 *Qty: 1 STUD BOLT $24.69
Location: 32 Prev | Next Part: 86311509 *Qty: 1 REVERS IDLE GEAR SHAFT $286.09
Location: 34 Prev | Next Part: 8200616 *Qty: 1 NUT $0.93
Location: 35 Prev | Next Part: 86311791 *Qty: 1 PLUG $13.06
Location: 36 Prev | Next Part: WHT003587 *Qty: 1 SEAL RING $10.67
Location: 37 Prev | Next Part: 86311440 *Qty: 1 BEARING $140.00
Location: 39 Prev | Next Part: WHT003582 *Qty: 1 SEAL RING $16.70
Location: 40 Prev | Next Part: 86311345C *Qty: 1 GEAR $2,207.04
Location: 41 Prev | Next Part: 86311439 *Qty: 1 BEARING $51.72
Location: 42 Prev | Next Part: 86311667 *Qty: 1 RING NUT $108.19
Location: 43 Prev | Next Part: WHT003580 *Qty: 1 SEAL RING $11.87
Location: 44 Prev | Next Part: 86301133 *Qty: 1 BEARING ?80 $93.87

* Quantity shown indicates the number of pieces used in the diagram.
