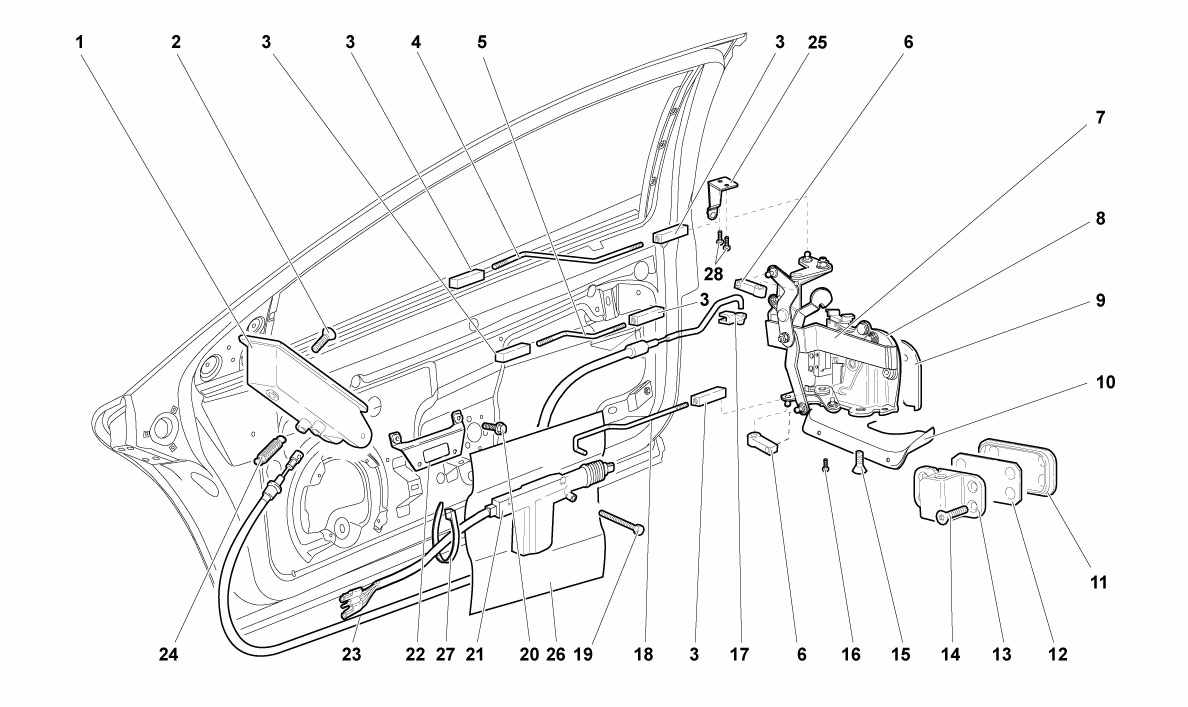

DOORS

Go to Split View

DOORS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 417837293 *Qty: 2 HANDLE $637.73
Location: 2 Prev | Next Part: WHT003091 *Qty: 1 SCREW $0.90
Location: 3 Prev | Next Part: 410837261 *Qty: 5 PAWL $2.63
Location: 4 Prev | Next Part: 410837237 *Qty: 1 TIE ROD $47.01
Location: 4 Prev | Next Part: 410837238 *Qty: 1 TIE ROD $47.01
Location: 5 Prev | Next Part: 410837511 *Qty: 1 TIE ROD $47.01
Location: 6 Prev | Next Part: 410837299 *Qty: 2 PAWL $13.31
Location: 7 Prev | Next Part: 410837161 *Qty: 1 LEFT LOCK LEVER SUPPORTING BRACKET ASSEMBLY $809.82
Location: 7 Prev | Next Part: 410837162A *Qty: 1 RIGHT LEVER SUPPORTING BRACKET ASSEMBLY $304.39
Location: 8 Prev | Next Part: 417837011A *Qty: 1 LH LOCK $1,423.11
Location: 8 Prev | Next Part: 417837012A *Qty: 1 RH LOCK $1,423.11
Location: 9 Prev | Next Part: 600940141 *Qty: 1 GASKET KIT (LH - RH) $130.91
Location: 10 Prev | Next Part: 410837901 *Qty: 1 LH ORNAMENT $231.47
Location: 10 Prev | Next Part: 410837902 *Qty: 1 RH ORNAMENT $323.82
Location: 11 Prev | Next Part: 410837899 *Qty: 1 ORNAMENT $12.07
Location: 12 Prev | Next Part: 410837963 *Qty: 2 SPACER $12.72
Location: 12 Prev | Next Part: 410837964 *Qty: 2 SPACER $12.37
Location: 13 Prev | Next Part: 410831408 *Qty: 1 LEFT STRIKER $85.02
Location: 13 Prev | Next Part: 410831407 *Qty: 1 RIGHT STRIKER $85.02
Location: 14 Prev | Next Part: 8700610 *Qty: 4 SCREW $0.90
Location: 15 Prev | Next Part: 8700638 *Qty: 4 SCREW $0.90
Location: 16 Prev | Next Part: WHT003065 *Qty: 4 SCREW $1.03
Location: 17 Prev | Next Part: 410837230 *Qty: 2 PAWL $0.90
Location: 18 Prev | Next Part: 410837653 *Qty: 1 LEFT TIE ROD $47.01
Location: 18 Prev | Next Part: 410837654 *Qty: 1 RIGHT TIE ROD $47.01
Location: 19 Prev | Next Part: 8700473 *Qty: 2 SCREW $0.90
Location: 20 Prev | Next Part: 8700663 *Qty: 2 SCREW $0.90
Location: 21 Prev | Next Part: 410837122 *Qty: 2 ACTUATOR $65.46
Location: 22 Prev | Next Part: 410837467 *Qty: 1 BRACKET $45.26
Location: 23 Prev | Next Part: 410837018 *Qty: 1 DOOR OPENING CABLE ASSEMBLY $93.51
Location: 24 Prev | Next Part: 410837723 *Qty: 1 LEFT SPRING $47.97
Location: 24 Prev | Next Part: 410837724 *Qty: 1 RIGHT SPRING $47.97
Location: 25 Prev | Next Part: 410837226A *Qty: 2 LEVER $65.69
Location: 26 Prev | Next Part: 410837909 *Qty: 2 PROTECTION $3.57
Location: 27 Prev | Next Part: 893971850C *Qty: 2 CLAMP $0.90
Location: 28 Prev | Next Part: 8700401 *Qty: 4 SCREW $0.90

* Quantity shown indicates the number of pieces used in the diagram.
