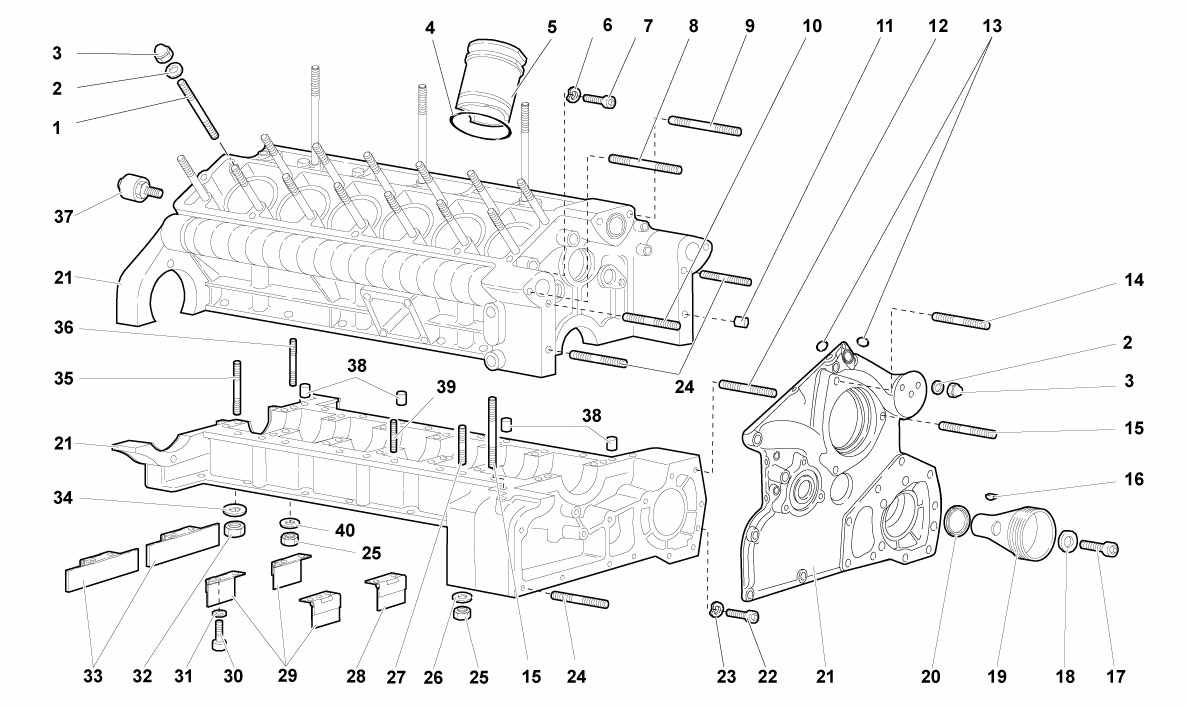

CRANKCASE AND LOWER MOUNTING

Go to Split View

CRANKCASE AND LOWER MOUNTING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 1824761 *Qty: 28 STUD BOLT $37.57
Location: 2 Prev | Next Part: 8401230 *Qty: 28 WASHER $38.54
Location: 3 Prev | Next Part: 1120924 *Qty: 28 CAP NUT $37.78
Location: 4 Prev | Next Part: WHT003085 *Qty: 12 SEAL RING $1.44
Location: 5 Prev | Next Part: 7M103321A *Qty: 12 87 DIAMETER CYLINDER LINER $497.39
Location: 6 Prev | Next Part: 8400606 *Qty: 2 WASHER $0.90
Location: 7 Prev | Next Part: 8700609 *Qty: 2 SCREW $0.90
Location: 8 Prev | Next Part: 8300807 *Qty: 1 STUD BOLT $11.35
Location: 9 Prev | Next Part: 8300833 *Qty: 2 STUD BOLT $6.15
Location: 10 Prev | Next Part: 8300903 *Qty: 2 STUD BOLT $9.78
Location: 11 Prev | Next Part: WHT003098 *Qty: 2 DOWEL $20.33
Location: 12 Prev | Next Part: 8301050 *Qty: 8 STUD BOLT $21.81
Location: 13 Prev | Next Part: 8601201 *Qty: 2 SEAL RING $0.90
Location: 14 Prev | Next Part: 8300833 *Qty: 1 STUD BOLT $6.15
Location: 15 Prev | Next Part: 8300809 *Qty: 2 STUD BOLT $8.50
Location: 16 Prev | Next Part: 410109445 *Qty: 1 KEY $0.96
Location: 17 Prev | Next Part: 8101642 *Qty: 1 SCREW $4.39
Location: 18 Prev | Next Part: 8411706 *Qty: 1 WASHER $1.49
Location: 19 Prev | Next Part: 7M105255 *Qty: 1 PULLEY $839.63
Location: 20 Prev | Next Part: WHT003103 *Qty: 1 SEAL RING $37.32
Location: 21 Prev | Next Part: 400147003 *Qty: 1 ENGINE BLOCK $28,722.87
Location: 22 Prev | Next Part: 8700861 *Qty: 4 SCREW $1.17
Location: 23 Prev | Next Part: WHT000771 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 8300902 *Qty: 5 STUD BOLT $9.29
Location: 25 Prev | Next Part: 8200808 *Qty: 14 NUT $0.90
Location: 26 Prev | Next Part: 8410815 *Qty: 14 WASHER $0.90
Location: 27 Prev | Next Part: 8300826 *Qty: 3 STUD BOLT $7.84
Location: 28 Prev | Next Part: 7M103729 *Qty: 1 PANEL $32.07
Location: 29 Prev | Next Part: 7M103730 *Qty: 3 PANEL $30.11
Location: 30 Prev | Next Part: 8700416 *Qty: 12 SCREW $0.90
Location: 31 Prev | Next Part: 8410402 *Qty: 12 WASHER $0.90
Location: 32 Prev | Next Part: 8201221 *Qty: 14 NUT $3.15
Location: 33 Prev | Next Part: 7M103749 *Qty: 2 PANEL $31.27
Location: 34 Prev | Next Part: WHT003046 *Qty: 14 WASHER $79.12
Location: 35 Prev | Next Part: 8301238 *Qty: 14 STUD BOLT $17.36
Location: 36 Prev | Next Part: 8300917 *Qty: 13 STUD BOLT $13.16
Location: 37 Prev | Next Part: 7L919561B *Qty: 1 PRESSURE SENSOR $194.19
Location: 38 Prev | Next Part: WHT003097 *Qty: 4 DOWEL $7.77
Location: 39 Prev | Next Part: 8300839 *Qty: 1 STUD BOLT $8.08
Location: 40 Prev | Next Part: 8400820 *Qty: 14 WASHER $17.42

* Quantity shown indicates the number of pieces used in the diagram.
