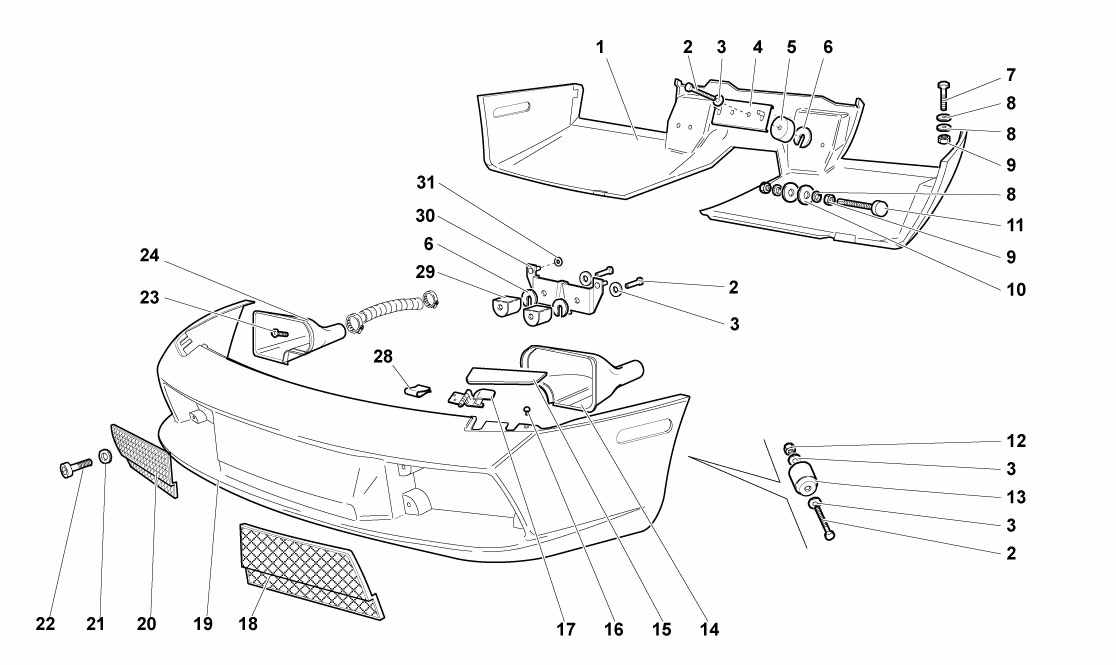

BUMPERS

Go to Split View

BUMPERS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 410807301A *Qty: 1 REAR BUMPER ASSEMBLY $27,316.08
Location: 2 Prev | Next Part: 8100861 *Qty: 2 SCREW $2.73
Location: 3 Prev | Next Part: N90179103 *Qty: 4 WASHER 18X8-4X2-5 $0.90
Location: 4 Prev | Next Part: 410807331 *Qty: 2 REAR BUMPER FIXING BRACKET ASSEMBLY $45.82
Location: 5 Prev | Next Part: 410807869 *Qty: 4 REAR BUMPER CENTRAL RUBBER $175.85
Location: 6 Prev | Next Part: 410807255 *Qty: 4 5.0 MM SHIM $15.98
Location: 6 Prev | Next Part: 410807567 *Qty: 4 5.0 MM SHIM $13.44
Location: 7 Prev | Next Part: N10430103 *Qty: 4 SCREW $0.90
Location: 9 Prev | Next Part: 8200801 *Qty: 4 NUT $0.90
Location: 11 Prev | Next Part: 410807699 *Qty: 2 JOURNAL $62.03
Location: 12 Prev | Next Part: 8200804 *Qty: 4 NUT $0.90
Location: 13 Prev | Next Part: 410807263A *Qty: 2 FRONT BUMPER SIDE RUBBER $175.85
Location: 14 Prev | Next Part: 410807605 *Qty: 1 LEFT FRONT BRAKE AIR BUMPER CONVEYOR $1,027.17
Location: 15 Prev | Next Part: 410955275 *Qty: 1 LEFT HEADLIGHT WASHER COVER LID $838.58
Location: 15 Prev | Next Part: 410955276A *Qty: 1 RIGHT HEADLIGHT WASHER COVER LID $560.41
Location: 16 Prev | Next Part: 410807895 *Qty: 2 PLUG $21.81
Location: 17 Prev | Next Part: 410955259 *Qty: 1 LEFT HEADLIGHT WASHER LID HINGE ASSEMBLY $294.55
Location: 17 Prev | Next Part: 410955260 *Qty: 1 RIGHT HEADLIGHT WASHER LID HINGE ASSEMBLY $378.07
Location: 18 Prev | Next Part: 410807681 *Qty: 1 NET $536.04
Location: 19 Prev | Next Part: 410807103A *Qty: 1 FRONT BUMPER ASSEMBLY $28,013.59
Location: 20 Prev | Next Part: 410807682 *Qty: 1 NET $536.04
Location: 21 Prev | Next Part: N10663401 *Qty: 8 WASHER $0.90
Location: 22 Prev | Next Part: 8700430 *Qty: 8 SCREW $0.90
Location: 23 Prev | Next Part: WHT000766 *Qty: 6 SCREW $0.90
Location: 24 Prev | Next Part: 410807606 *Qty: 1 RIGHT FRONT BRAKE AIR BUMPER CONVEYOR $1,027.17
Location: 28 Prev | Next Part: 410807794 *Qty: 10 SPRING $12.85
Location: 29 Prev | Next Part: 410807263 *Qty: 4 RUBBER BUFFER $150.54
Location: 30 Prev | Next Part: 410807133A *Qty: 2 FRONT BUMPER FIXING BRACKET ASSEMBLY $307.74
Location: 31 Prev | Next Part: 410807047 *Qty: 6 WASHER $13.44

* Quantity shown indicates the number of pieces used in the diagram.
