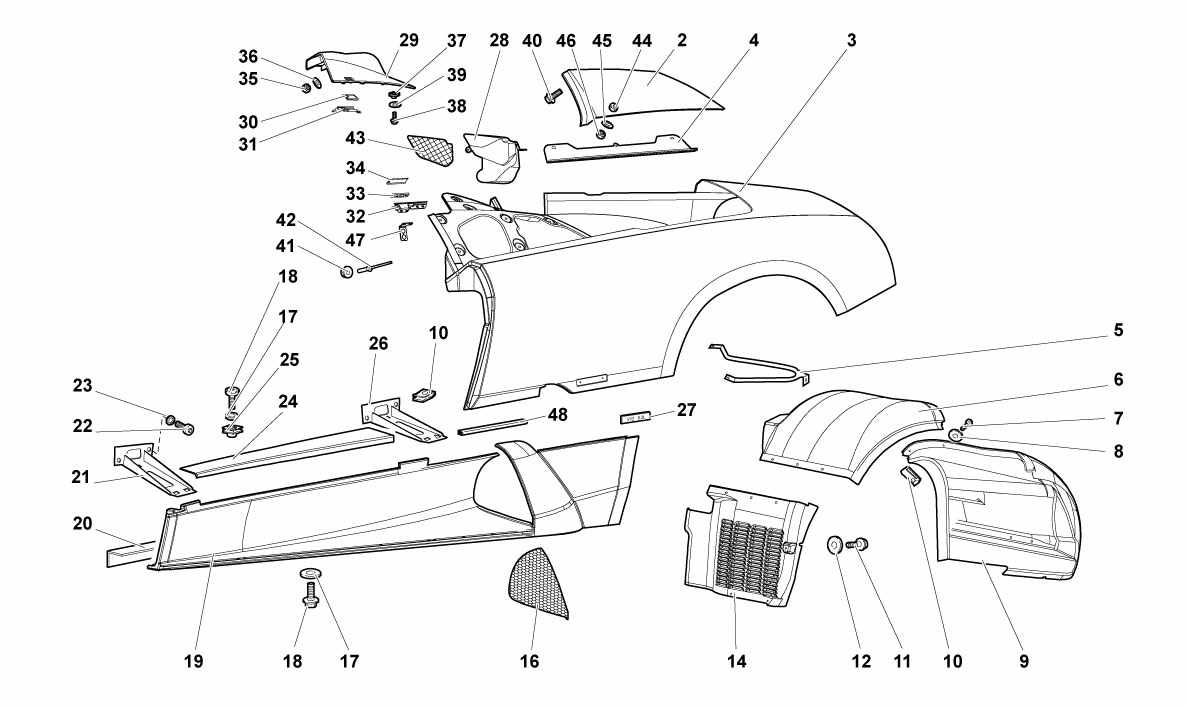

BODY ELEMENTS - LEFT SIDE

Go to Split View

BODY ELEMENTS - LEFT SIDE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 2 Prev | Next Part: 417809921 *Qty: 1 FENDER LEFT COVER $11,483.67
Location: 3 Prev | Next Part: 417821017A *Qty: 1 LEFT REAR FENDER ASSEMBLY $16,988.13
Location: 4 Prev | Next Part: 417813919 *Qty: 1 CHANNEL $109.65
Location: 5 Prev | Next Part: 410117073 *Qty: 1 LEFT OIL RADIATOR FRAMEWORK $308.18
Location: 6 Prev | Next Part: 410810981 *Qty: 1 LEFT REAR WHEELARCH- CENTRAL PART $1,301.24
Location: 7 Prev | Next Part: 8700454 *Qty: 4 SCREW $2.85
Location: 9 Prev | Next Part: 410810985 *Qty: 1 LEFT REAR WHEELARCH- REAR PART $406.21
Location: 10 Prev | Next Part: N90834301 *Qty: 4 CLIP $0.90
Location: 11 Prev | Next Part: N90319404 *Qty: 44 SCREW $1.22
Location: 12 Prev | Next Part: 8400614 *Qty: 32 WASHER $0.90
Location: 14 Prev | Next Part: 410810171 *Qty: 1 LEFT REAR WHEELARCH- FRONT PART $655.45
Location: 17 Prev | Next Part: 8400607 *Qty: 18 WASHER $0.90
Location: 18 Prev | Next Part: N10718801 *Qty: 18 SCREW M6X16 $0.90
Location: 19 Prev | Next Part: 410809035 *Qty: 1 LEFT SIDE MEMBER ASSEMBLY $10,693.96
Location: 20 Prev | Next Part: 410857469 *Qty: 1 AERODYNAMIC LH STRAP IRON $158.27
Location: 21 Prev | Next Part: 410813550 *Qty: 1 BRACKET $108.04
Location: 22 Prev | Next Part: 8700627 *Qty: 4 SCREW $0.90
Location: 23 Prev | Next Part: 8400606 *Qty: 4 WASHER $0.90
Location: 24 Prev | Next Part: 410853491A *Qty: 1 SCUFF PLATE (CARBON INTERIOR ? SUPPLY VIN) $2,548.49
Location: 24 Prev | Next Part: 410853491 *Qty: 1 SCUFF PLATE $1,248.25
Location: 25 Prev | Next Part: 400827947 *Qty: 6 CLIP $17.17
Location: 26 Prev | Next Part: 410813549 *Qty: 1 BRACKET $116.66
Location: 27 Prev | Next Part: 94013594 *Qty: 1 V12 6.2L PLATE $346.96
Location: 28 Prev | Next Part: 417809963 *Qty: 1 LEFT ENGINE AIR INTAKE DUCT $1,527.70
Location: 29 Prev | Next Part: 417813161 *Qty: 1 REAR LEFT ENGINE COMPARTMENT UPHOLSTERY ASSEMBLY $6,607.72
Location: 30 Prev | Next Part: 66016807 *Qty: 1 ENGINE COMPARTMENT SLIDING FLAP $35.83
Location: 31 Prev | Next Part: 66016487 *Qty: 1 BRACKET $27.99
Location: 32 Prev | Next Part: 417805968 *Qty: 1 CENTRAL ORNAMENT ON REAR SIDE OF SOFT-TOP $44.77
Location: 33 Prev | Next Part: 417809117 *Qty: 1 ORNAMENT FOR FENDER SLIDING FLAP $43.57
Location: 34 Prev | Next Part: 417809967 *Qty: 1 FENDER SLIDING FLAP $35.83
Location: 35 Prev | Next Part: WHT000760 *Qty: 3 NUT $0.90
Location: 36 Prev | Next Part: N91109201 *Qty: 3 WASHER $4.80
Location: 37 Prev | Next Part: N90777701 *Qty: 1 CLIP $0.90
Location: 38 Prev | Next Part: WHT001190 *Qty: 1 SCREW M5 $1.43
Location: 39 Prev | Next Part: N10612001 *Qty: 1 WASHER $0.90
Location: 40 Prev | Next Part: N10430103 *Qty: 6 SCREW $0.90
Location: 41 Prev | Next Part: 417863999 *Qty: 2 SNAP BUTTON $0.90
Location: 42 Prev | Next Part: N91094501 *Qty: 2 RIVET $0.90
Location: 43 Prev | Next Part: 417853677 *Qty: 1 LEFT GRID $118.50
Location: 44 Prev | Next Part: 418805416 *Qty: 1 SOFT-TOP CLIP $16.99
Location: 45 Prev | Next Part: 8400401 *Qty: 1 WASHER $0.90
Location: 46 Prev | Next Part: N01100411 *Qty: 1 NUT $0.90
Location: 47 Prev | Next Part: 417809165A *Qty: 1 BRACKET $17.35
Location: 48 Prev | Next Part: 400853893 *Qty: 1 GASKET $5.89

* Quantity shown indicates the number of pieces used in the diagram.
