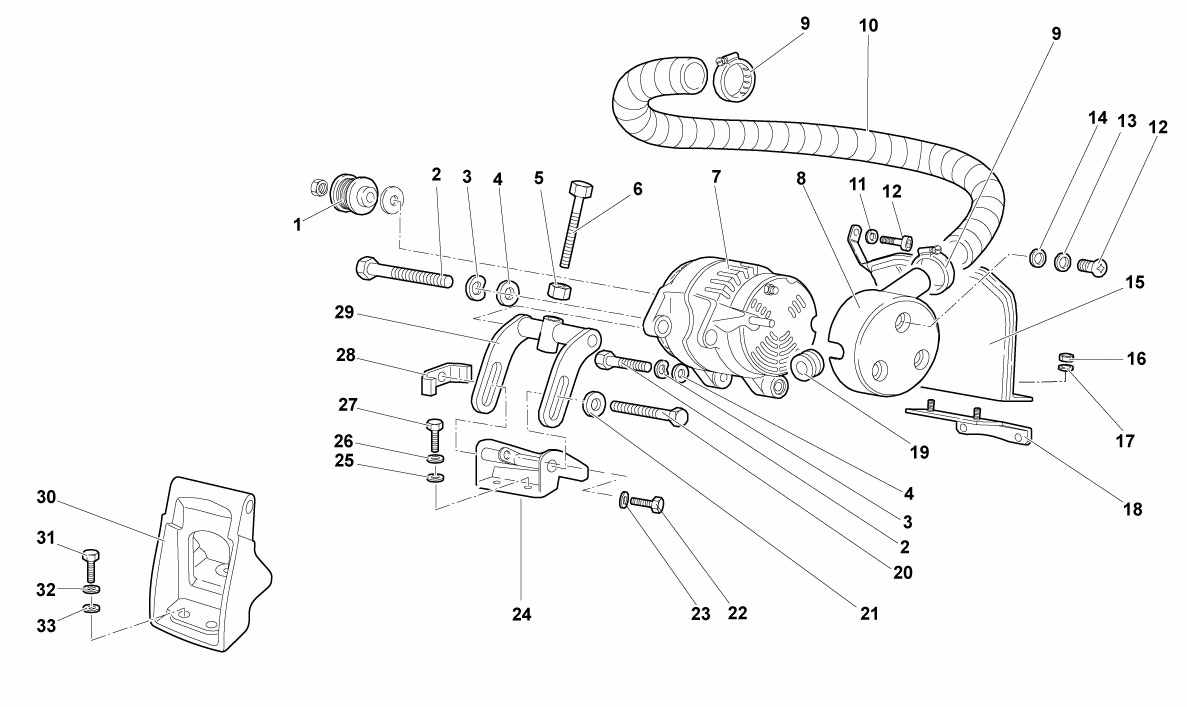

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7M903165 *Qty: 1 PULLEY $200.41
Location: 2 Prev | Next Part: 8100871 *Qty: 2 SCREW $4.16
Location: 3 Prev | Next Part: 8410820 *Qty: 2 WASHER $0.90
Location: 4 Prev | Next Part: WHT000771 *Qty: 1 WASHER $0.90
Location: 5 Prev | Next Part: *Qty: 0 NUT (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 6 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 7 Prev | Next Part: 7M903015 *Qty: 1 ALTERNATOR $1,574.50
Location: 8 Prev | Next Part: 410903421 *Qty: 1 CONVEYOR $224.65
Location: 9 Prev | Next Part: N0245022 *Qty: 2 CLAMP $3.83
Location: 10 Prev | Next Part: 7M903667 *Qty: 1 PIPE $251.97
Location: 11 Prev | Next Part: 8410805 *Qty: 1 WASHER $0.90
Location: 12 Prev | Next Part: N10353501 *Qty: 1 SCREW $0.90
Location: 13 Prev | Next Part: WHT003051 *Qty: 3 WASHER $0.90
Location: 14 Prev | Next Part: 8400304 *Qty: 3 WASHER $0.90
Location: 15 Prev | Next Part: 7M103653 *Qty: 1 PROTECTION $506.25
Location: 16 Prev | Next Part: 8200614 *Qty: 2 NUT $0.90
Location: 17 Prev | Next Part: 8400630 *Qty: 2 WASHER $0.90
Location: 18 Prev | Next Part: 7M903103 *Qty: 1 BRACKET $37.21
Location: 19 Prev | Next Part: 400422095 *Qty: 1 FAIRLEAD $33.28
Location: 20 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 21 Prev | Next Part: *Qty: 0 WASHER (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 22 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 23 Prev | Next Part: *Qty: 0 WASHER (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 24 Prev | Next Part: *Qty: 0 BRACKET (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 25 Prev | Next Part: *Qty: 0 WASHER (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 26 Prev | Next Part: *Qty: 0 WASHER (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 27 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 28 Prev | Next Part: *Qty: 0 STOP (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 29 Prev | Next Part: *Qty: 0 BRACKET (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 30 Prev | Next Part: 7M903805 *Qty: 1 BRACKET (FROM VIN 5LA01545) $242.58
Location: 31 Prev | Next Part: N90536201 *Qty: 3 WASHER (FROM VIN 5LA01545) $1.22
Location: 32 Prev | Next Part: N90107603 *Qty: 3 WASHER (FROM VIN 5LA01545) $0.90
Location: 33 Prev | Next Part: WHT000771 *Qty: 3 SCREW (FROM VIN 5LA01545) $0.90

* Quantity shown indicates the number of pieces used in the diagram.
