WATER PUMP

Go to Split View

WATER PUMP

in cart
Go to Split View

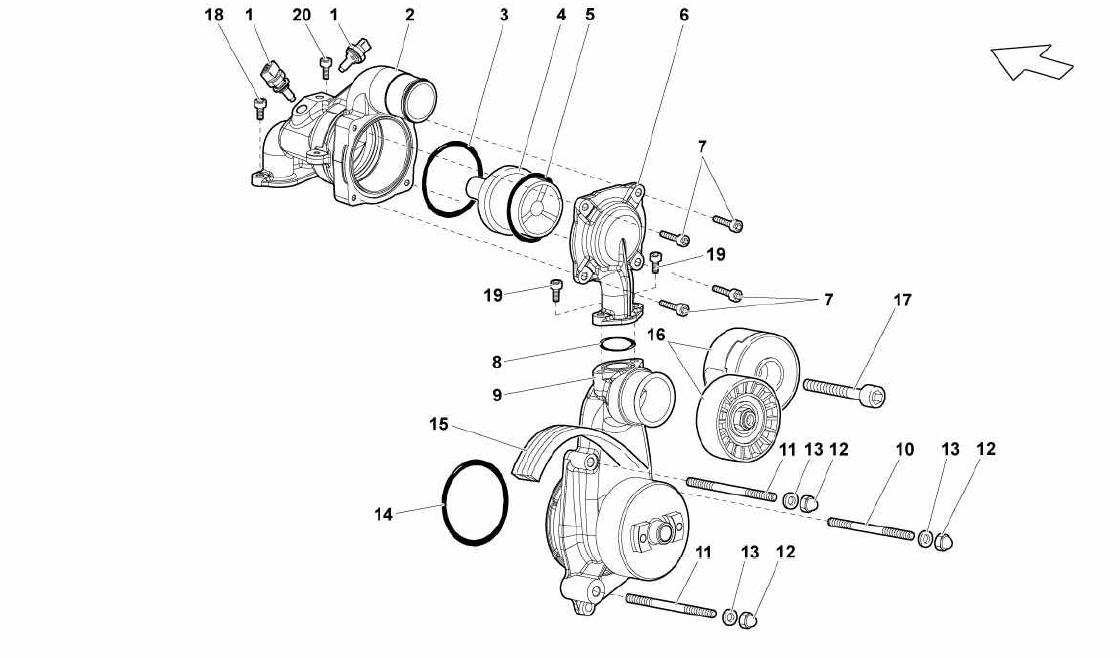

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L919501A *Qty: 2 WATER TEMPERATURE SENSOR $125.25
Location: 2 Prev | Next Part: 7M121115B *Qty: 1 WATER THERMOSTAT BODY $374.42
Location: 3 Prev | Next Part: WHT002133 *Qty: 1 SEAL RING $27.15
Location: 4 Prev | Next Part: 7M121113 *Qty: 1 WATER THERMOSTAT $193.64
Location: 5 Prev | Next Part: 7M121041 *Qty: 1 RING $35.83
Location: 6 Prev | Next Part: 7M121121C *Qty: 1 WATER COLLECTING BODY FROM HEADS $142.40
Location: 7 Prev | Next Part: N10124303 *Qty: 4 SCREW $0.90
Location: 8 Prev | Next Part: WHT003062 *Qty: 1 SEAL RING $3.00
Location: 9 Prev | Next Part: 7M121011D *Qty: 1 WATER PUMP $781.29
Location: 10 Prev | Next Part: WHT003030 *Qty: 1 STUD BOLT $8.22
Location: 11 Prev | Next Part: 8300809 *Qty: 2 STUD BOLT $8.50
Location: 12 Prev | Next Part: N01118410 *Qty: 3 NUT $1.18
Location: 13 Prev | Next Part: WHT002962 *Qty: 3 WASHER $0.90
Location: 14 Prev | Next Part: WHT003018 *Qty: 1 SEAL RING $13.44
Location: 15 Prev | Next Part: 7M903137A *Qty: 1 BELT $91.31
Location: 16 Prev | Next Part: 7M109485 *Qty: 1 GUIDE PULLEY $559.18
Location: 17 Prev | Next Part: N10667901 *Qty: 1 SCREW $2.68
Location: 18 Prev | Next Part: N01021626 *Qty: 1 SCREW $6.41
Location: 19 Prev | Next Part: N01021626 *Qty: 2 SCREW $6.41
Location: 20 Prev | Next Part: N01021626 *Qty: 1 SCREW $6.41

* Quantity shown indicates the number of pieces used in the diagram.
