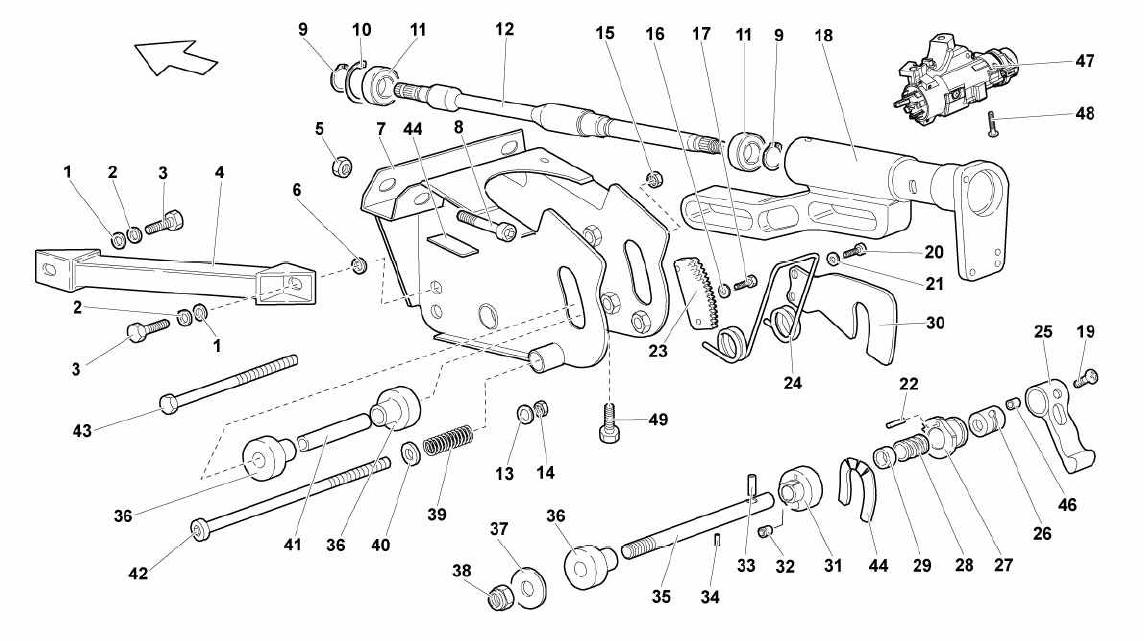

STEERING

Go to Split View

STEERING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N90179103 *Qty: 2 WASHER 18X8-4X2-5 Unavailable
Location: 2 Prev | Next Part: WHT000771 *Qty: 2 WASHER Unavailable
Location: 3 Prev | Next Part: N01024032 *Qty: 2 SCREW M8X20 Unavailable
Location: 4 Prev | Next Part: 413419281A *Qty: 1 STRUT Unavailable
Location: 5 Prev | Next Part: N10609202 *Qty: 2 NUT M8 Unavailable
Location: 6 Prev | Next Part: 410407295 *Qty: 1 ADJUSTMENT SHIM Unavailable
Location: 7 Prev | Next Part: 413419087A *Qty: 1 SUPPORT Unavailable
Location: 8 Prev | Next Part: N10651701 *Qty: 2 SCREW M8X45 Unavailable
Location: 9 Prev | Next Part: WHT002646 *Qty: 2 RETAINING RING Unavailable
Location: 10 Prev | Next Part: WHT002647 *Qty: 1 RETAINING RING Unavailable
Location: 11 Prev | Next Part: 410419905 *Qty: 2 BEARING Unavailable
Location: 12 Prev | Next Part: 410419967A *Qty: 1 SHAFT Unavailable
Location: 13 Prev | Next Part: WHT000771 *Qty: 1 WASHER Unavailable
Location: 14 Prev | Next Part: N01100845 *Qty: 1 NUT M8 Unavailable
Location: 15 Prev | Next Part: N01100845 *Qty: 1 NUT M8 Unavailable
Location: 16 Prev | Next Part: WHT001187 *Qty: 2 WASHER Unavailable
Location: 17 Prev | Next Part: N0447347 *Qty: 2 SCREW M5X16 Unavailable
Location: 18 Prev | Next Part: 410419561A *Qty: 1 STEERING COLUMN SUPPORT (E-GEAR) Unavailable
Location: 18 Prev | Next Part: 410419561 *Qty: 1 STEERING COLUMN SUPPORT (MANUAL GEARBOX) Unavailable
Location: 19 Prev | Next Part: WHT003308 *Qty: 2 SCREW M4X8 Unavailable
Location: 20 Prev | Next Part: N10580702 *Qty: 2 SCREW M5X8 Unavailable
Location: 21 Prev | Next Part: N10612001 *Qty: 2 WASHER Unavailable
Location: 22 Prev | Next Part: N10692901 *Qty: 1 PIN Unavailable
Location: 23 Prev | Next Part: 410419301 *Qty: 1 TOOTHED STRIKER Unavailable
Location: 24 Prev | Next Part: 410419341 *Qty: 1 SPRING Unavailable
Location: 25 Prev | Next Part: 410419355 *Qty: 1 LEVER Unavailable
Location: 26 Prev | Next Part: 410419202 *Qty: 1 SLEEVE Unavailable
Location: 28 Prev | Next Part: 410419209 *Qty: 1 SPRING Unavailable
Location: 29 Prev | Next Part: 410419758 *Qty: 1 WASHER Unavailable
Location: 30 Prev | Next Part: 410419522 *Qty: 1 COVER Unavailable
Location: 31 Prev | Next Part: 410419588 *Qty: 1 SPACER Unavailable
Location: 32 Prev | Next Part: 410419811A *Qty: 1 POSITION BALL Unavailable
Location: 33 Prev | Next Part: N10693001 *Qty: 1 PIN Unavailable
Location: 34 Prev | Next Part: WHT003591 *Qty: 1 PIN Unavailable
Location: 35 Prev | Next Part: 410419645A *Qty: 1 JOURNAL Unavailable
Location: 36 Prev | Next Part: 410419588A *Qty: 3 SPACER Unavailable
Location: 37 Prev | Next Part: 410407295D *Qty: 1 WASHER Unavailable
Location: 38 Prev | Next Part: N90635001 *Qty: 1 NUT M12 Unavailable
Location: 39 Prev | Next Part: 410419598 *Qty: 1 SPRING Unavailable
Location: 40 Prev | Next Part: N01152427 *Qty: 1 WASHER Unavailable
Location: 41 Prev | Next Part: 410419331B *Qty: 1 BUSHING Unavailable
Location: 42 Prev | Next Part: WHT003070 *Qty: 1 SCREW M6X90 Unavailable
Location: 43 Prev | Next Part: N01037511 *Qty: 1 SCREW M8X75 Unavailable
Location: 44 Prev | Next Part: 410419780 *Qty: 1 GASKET Unavailable
Location: 46 Prev | Next Part: 410419811 *Qty: 1 POSITION BALL Unavailable
Location: 47 Prev | Next Part: 4B0905851Q *Qty: 1 IGNITION SWITCH SET Unavailable
Location: 48 Prev | Next Part: 410905133 *Qty: 2 SCREW M8X22 Unavailable
Location: 49 Prev | Next Part: *Qty: 0 SCREW M8X20 (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
