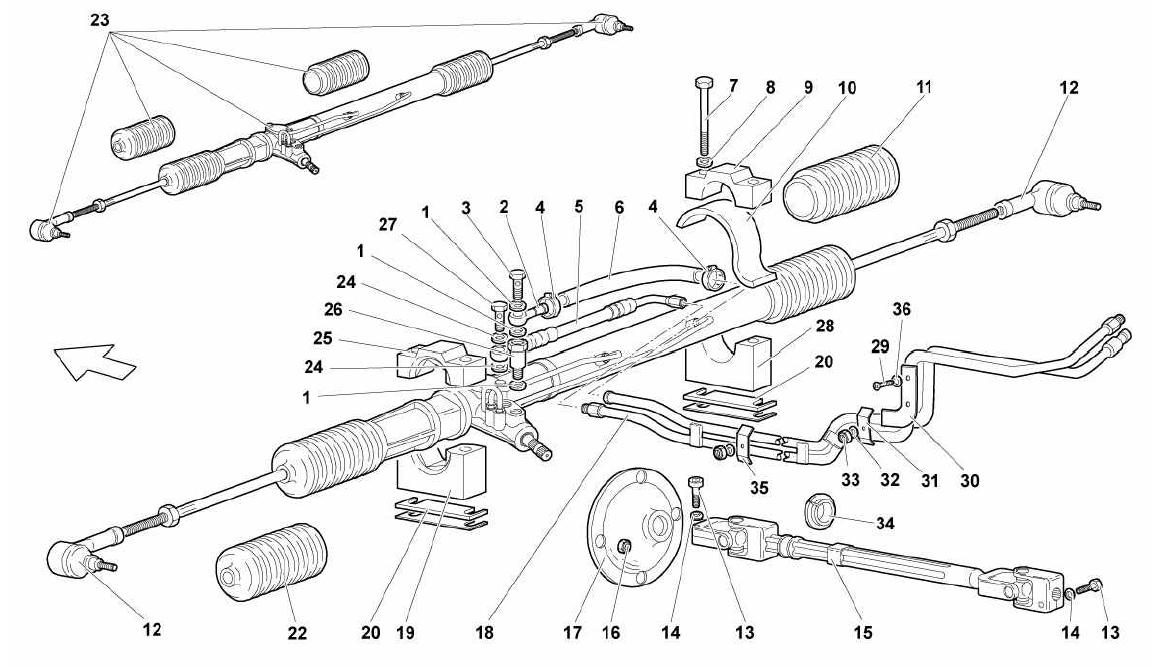

STEERING RACK

Go to Split View

STEERING RACK

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8401621 *Qty: 3 WASHER $1.30
Location: 2 Prev | Next Part: 413422247A *Qty: 1 CONNECTOR $38.52
Location: 3 Prev | Next Part: 400422279A *Qty: 1 SCREW WITH HOLE $4.81
Location: 4 Prev | Next Part: N0245097 *Qty: 2 CLAMP $12.38
Location: 5 Prev | Next Part: 413422895A *Qty: 1 PIPE $681.69
Location: 6 Prev | Next Part: 410422890A *Qty: 1 PIPE $49.53
Location: 7 Prev | Next Part: N10576802 *Qty: 4 SCREW $4.29
Location: 8 Prev | Next Part: N0122115 *Qty: 4 WASHER $0.90
Location: 9 Prev | Next Part: 410422761A *Qty: 1 U-BOLT $421.88
Location: 10 Prev | Next Part: 400422850 *Qty: 1 RUBBER SHIM $5.43
Location: 11 Prev | Next Part: 410419831 *Qty: 1 BOOT $108.96
Location: 12 Prev | Next Part: 4334555 *Qty: 1 BALL JOINT COUPLING $227.09
Location: 13 Prev | Next Part: WHT003310 *Qty: 2 SCREW $4.99
Location: 14 Prev | Next Part: 8410823 *Qty: 2 WASHER $0.90
Location: 15 Prev | Next Part: 410419515A *Qty: 1 JOINTED SHAFT $432.01
Location: 16 Prev | Next Part: N01100637 *Qty: 4 NUT $0.90
Location: 17 Prev | Next Part: 410422326 *Qty: 1 GASKET $158.21
Location: 18 Prev | Next Part: 410422867C *Qty: 1 PIPE (E-GEAR) $1,908.69
Location: 18 Prev | Next Part: 410422867 *Qty: 1 PIPE (MANUAL GEARBOX) $1,908.69
Location: 19 Prev | Next Part: 410422761 *Qty: 1 SUPPORT $222.55
Location: 20 Prev | Next Part: 410422127A *Qty: 4 1.0 MM ADJUSTMENT SHIM $12.41
Location: 22 Prev | Next Part: 410419831 *Qty: 1 BOOT $108.96
Location: 23 Prev | Next Part: 413422061C *Qty: 1 POWER STEERING RACK $5,026.51
Location: 24 Prev | Next Part: N0138492 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 410422874 *Qty: 1 U-BOLT $258.73
Location: 26 Prev | Next Part: 410422293B *Qty: 1 CONNECTOR $43.64
Location: 27 Prev | Next Part: 400422269A *Qty: 1 SCREW WITH HOLE $9.19
Location: 29 Prev | Next Part: N0102649 *Qty: 2 SCREW $1.08
Location: 30 Prev | Next Part: 410422078 *Qty: 1 SHEET $237.31
Location: 31 Prev | Next Part: 410422477A *Qty: 2 PLATE $17.47
Location: 32 Prev | Next Part: N10612001 *Qty: 2 WASHER $0.90
Location: 33 Prev | Next Part: N0211963 *Qty: 2 NUT M5 $0.90
Location: 34 Prev | Next Part: 410419548 *Qty: 1 BUSHING $81.01
Location: 35 Prev | Next Part: 410422479 *Qty: 1 PLATE $5.98
Location: 36 Prev | Next Part: N0115124 *Qty: 2 WASHER $2.28

* Quantity shown indicates the number of pieces used in the diagram.
