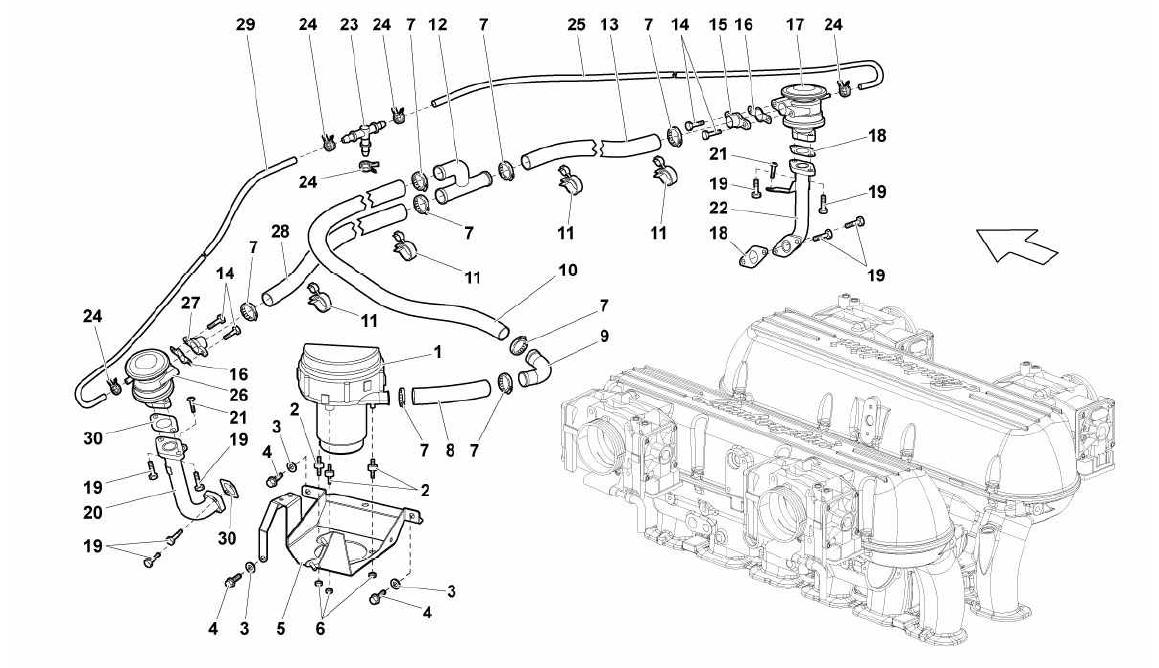

SECONDARY AIR SYSTEM

Go to Split View

SECONDARY AIR SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 78906601F *Qty: 1 PUMP $593.49
Location: 2 Prev | Next Part: 400972081A *Qty: 3 FLEXIBLE SUPPORT $8.80
Location: 3 Prev | Next Part: WHT002961 *Qty: 3 WASHER $0.90
Location: 4 Prev | Next Part: N10718801 *Qty: 3 SCREW $0.90
Location: 5 Prev | Next Part: 410906613B *Qty: 1 BRACKET $58.49
Location: 6 Prev | Next Part: N01508213 *Qty: 3 NUT $0.90
Location: 7 Prev | Next Part: N10255601 *Qty: 8 CLAMP $1.35
Location: 8 Prev | Next Part: 7M131371A *Qty: 1 PIPE $298.14
Location: 9 Prev | Next Part: 7M131163 *Qty: 1 CONNECTOR $30.01
Location: 10 Prev | Next Part: 7M131149B *Qty: 1 PIPE $347.67
Location: 11 Prev | Next Part: N10291602 *Qty: 4 CLAMP $4.67
Location: 12 Prev | Next Part: 7M131598 *Qty: 1 CONNECTOR $105.48
Location: 13 Prev | Next Part: 7M131611C *Qty: 1 PIPE (LEFT) $219.97
Location: 14 Prev | Next Part: N10338903 *Qty: 4 SCREW $0.90
Location: 15 Prev | Next Part: 7L131585 *Qty: 1 PIPE FITTING (LEFT) $68.64
Location: 16 Prev | Next Part: 7L131358 *Qty: 2 GASKET $32.76
Location: 17 Prev | Next Part: 78131102L *Qty: 1 PNEUMATIC VALVE (LEFT) $99.69
Location: 18 Prev | Next Part: 7M131354 *Qty: 2 GASKET (LEFT) $8.83
Location: 19 Prev | Next Part: N10338903 *Qty: 8 SCREW $0.90
Location: 20 Prev | Next Part: 7M131584A *Qty: 1 RH PIPE $118.17
Location: 21 Prev | Next Part: N90638102 *Qty: 2 SCREW $0.90
Location: 22 Prev | Next Part: 7M131583A *Qty: 1 LH PIPE $118.17
Location: 23 Prev | Next Part: 7L133579 *Qty: 1 CONNECTOR $0.98
Location: 24 Prev | Next Part: 400127217 *Qty: 5 CLAMP $0.90
Location: 25 Prev | Next Part: 7M131145A *Qty: 1 PIPE $18.51
Location: 26 Prev | Next Part: 78131102L *Qty: 1 PNEUMATIC VALVE (RIGHT-HAND) $99.69
Location: 27 Prev | Next Part: 7L131585 *Qty: 1 PIPE FITTING (RIGHT-HAND) $68.64
Location: 29 Prev | Next Part: 7M131145A *Qty: 1 PIPE $18.51
Location: 30 Prev | Next Part: 7M131354 *Qty: 2 GASKET (RIGHT-HAND) $8.83

* Quantity shown indicates the number of pieces used in the diagram.
