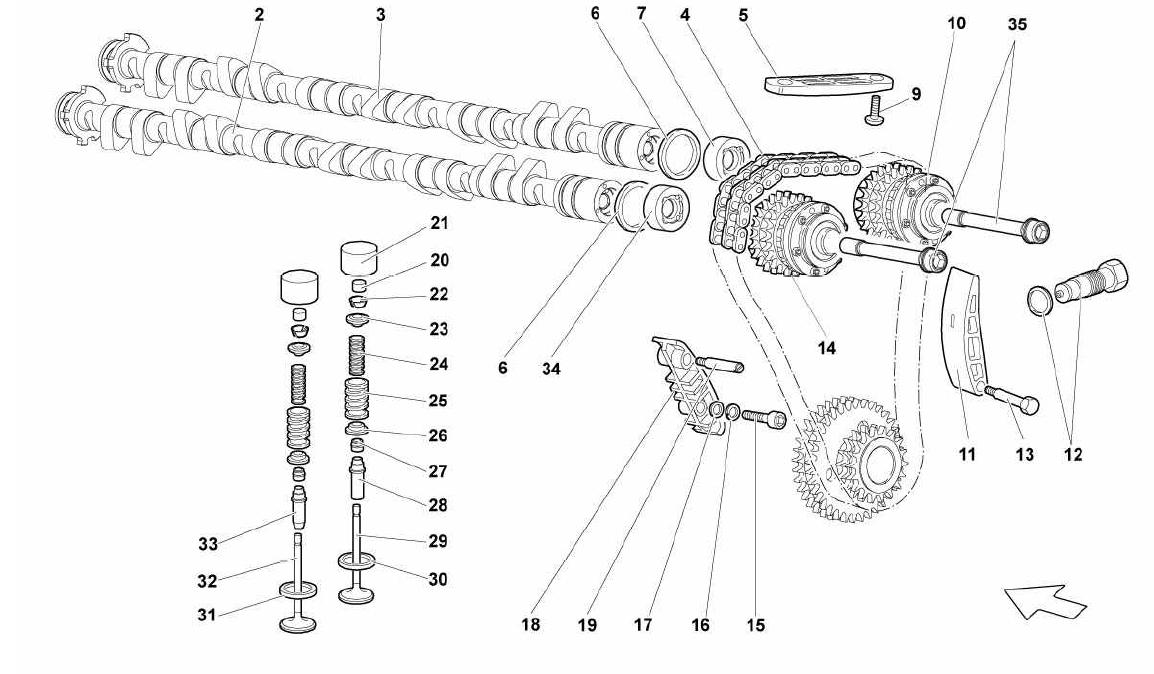

RIGHT HEAD TIMING SYSTEM

Go to Split View

RIGHT HEAD TIMING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 2 Prev | Next Part: 7M109306H *Qty: 1 RH EXHAUST CAMSHAFT (FROM ENGINE - 02485) $2,063.10
Location: 2 Prev | Next Part: 7M109306G *Qty: 1 RH EXHAUST CAMSHAFT (UP TO ENGINE - 02484) $2,035.22
Location: 3 Prev | Next Part: 7M109304K *Qty: 1 RH INTAKE CAMSHAFT (FROM ENGINE - 02485) $2,064.31
Location: 3 Prev | Next Part: 7M109304J *Qty: 1 RH INTAKE CAMSHAFT (UP TO ENGINE - 02484) $2,036.40
Location: 4 Prev | Next Part: 7M109231 *Qty: 1 UPPER TIMING CHAIN $126.68
Location: 5 Prev | Next Part: 7M109513 *Qty: 1 SHOE $37.96
Location: 6 Prev | Next Part: 7M109349 *Qty: 2 OIL SEAL $39.17
Location: 7 Prev | Next Part: 7M109423A *Qty: 1 SUPPORT $100.19
Location: 9 Prev | Next Part: N90638102 *Qty: 2 SCREW $0.90
Location: 10 Prev | Next Part: 7M109083C *Qty: 1 EXHAUST PHASE TRANSFORMER $1,919.16
Location: 11 Prev | Next Part: 7M109508 *Qty: 1 SHOE $29.71
Location: 12 Prev | Next Part: 7M109255 *Qty: 1 CHAIN TIGHTENER $106.49
Location: 13 Prev | Next Part: 7M109225A *Qty: 1 JOURNAL $40.79
Location: 14 Prev | Next Part: 7M109084D *Qty: 1 INTAKE PHASE TRANSFORMER $1,919.16
Location: 15 Prev | Next Part: WHT003071 *Qty: 1 SCREW $5.34
Location: 16 Prev | Next Part: WHT001397 *Qty: 1 WASHER $0.90
Location: 17 Prev | Next Part: WHT002962 *Qty: 1 WASHER $0.90
Location: 18 Prev | Next Part: 7M109469 *Qty: 1 SHOE $39.17
Location: 19 Prev | Next Part: 7M109224 *Qty: 1 JOURNAL $43.45
Location: 20 Prev | Next Part: 7M109320B *Qty: 24 ADJUSTMENT SHIM (2-55 MM) $42.50
Location: 20 Prev | Next Part: 7M109320A *Qty: 24 ADJUSTMENT SHIM (1-70 MM) $8.83
Location: 20 Prev | Next Part: 7M109320A *Qty: 24 ADJUSTMENT SHIM (1-75 MM) $8.83
Location: 20 Prev | Next Part: 7M109320A *Qty: 24 ADJUSTMENT SHIM (1-80 MM) $8.83
Location: 20 Prev | Next Part: 7M109320A *Qty: 24 ADJUSTMENT SHIM (1-85 MM) $8.83
Location: 20 Prev | Next Part: 7M109320A *Qty: 24 ADJUSTMENT SHIM (1-90 MM) $8.83
Location: 20 Prev | Next Part: 7M109320B *Qty: 24 ADJUSTMENT SHIM (1-95 MM) $42.50
Location: 20 Prev | Next Part: 7M109320B *Qty: 24 ADJUSTMENT SHIM (2-05 MM) $42.50
Location: 20 Prev | Next Part: 7M109320B *Qty: 24 ADJUSTMENT SHIM (2-10 MM) $42.50
Location: 20 Prev | Next Part: 7M109320B *Qty: 24 ADJUSTMENT SHIM (2-15 MM) $42.50
Location: 20 Prev | Next Part: 7M109320B *Qty: 24 ADJUSTMENT SHIM (2-20 MM) $42.50
Location: 20 Prev | Next Part: 7M109320B *Qty: 24 ADJUSTMENT SHIM (2-25 MM) $42.50
Location: 20 Prev | Next Part: 7M109320B *Qty: 24 ADJUSTMENT SHIM (2-30 MM) $42.50
Location: 20 Prev | Next Part: 7M109320B *Qty: 24 ADJUSTMENT SHIM (2-35 MM) $42.50
Location: 20 Prev | Next Part: 7M109320B *Qty: 24 ADJUSTMENT SHIM (2-40 MM) $42.50
Location: 20 Prev | Next Part: 7M109320B *Qty: 24 ADJUSTMENT SHIM (2-45 MM) $42.50
Location: 20 Prev | Next Part: 7M109320A *Qty: 24 ADJUSTMENT SHIM (1-60 MM) $8.83
Location: 20 Prev | Next Part: 7M109320B *Qty: 24 ADJUSTMENT SHIM (2-50 MM) $42.50
Location: 20 Prev | Next Part: 7M109320A *Qty: 24 ADJUSTMENT SHIM (1-65 MM) $8.83
Location: 21 Prev | Next Part: 7M109309A *Qty: 24 VALVE CONTROL TAPPET $363.77
Location: 22 Prev | Next Part: 36109651B *Qty: 48 VALVE COTTER $0.90
Location: 23 Prev | Next Part: 7M109641A *Qty: 24 TAPPET UPPER PLATE $38.31
Location: 24 Prev | Next Part: 7M109633B *Qty: 24 INNER SPRING $9.61
Location: 25 Prev | Next Part: 7M109623B *Qty: 24 OUTER SPRING $10.65
Location: 26 Prev | Next Part: 7M109642B *Qty: 24 TAPPET LOWER PLATE $27.83
Location: 27 Prev | Next Part: 57109675 *Qty: 24 SEAL RING $1.50
Location: 28 Prev | Next Part: 7M103416B *Qty: 12 INTAKE VALVE GUIDE $44.48
Location: 29 Prev | Next Part: 7M109601B *Qty: 24 INTAKE VALVE $80.89
Location: 30 Prev | Next Part: 7M103431A *Qty: 12 INTAKE VALVE SEAT $33.05
Location: 31 Prev | Next Part: 7M103441A *Qty: 12 EXHAUST VALVE SEAT $34.84
Location: 32 Prev | Next Part: 7M109611A *Qty: 24 EXHAUST VALVE $94.71
Location: 33 Prev | Next Part: 7M103416C *Qty: 12 EXHAUST VALVE GUIDE $47.34
Location: 34 Prev | Next Part: 7M109423A *Qty: 1 SUPPORT $100.19
Location: 35 Prev | Next Part: 7M109177B *Qty: 2 SCREW (UP TO ENGINE - 02484) $46.74
Location: 35 Prev | Next Part: 7M109177C *Qty: 2 SCREW (FROM ENGINE - 02485) $46.74

* Quantity shown indicates the number of pieces used in the diagram.
