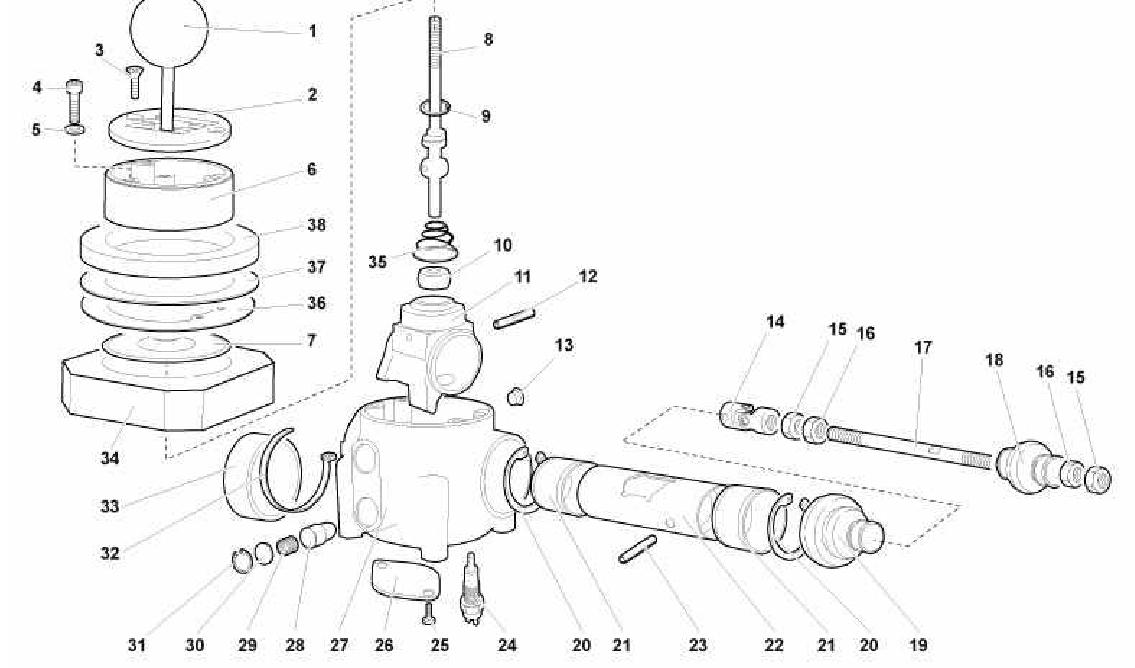

GEARBOX CONTROL TOWER

Go to Split View

GEARBOX CONTROL TOWER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 410711141 *Qty: 1 HANDLE $577.60
Location: 2 Prev | Next Part: 410713109 *Qty: 1 SELECTOR PLATE $1,244.17
Location: 3 Prev | Next Part: WHT003564 *Qty: 2 SCREW $9.33
Location: 4 Prev | Next Part: N10544302 *Qty: 4 SCREW $0.90
Location: 5 Prev | Next Part: N90247901 *Qty: 4 WASHER $0.90
Location: 6 Prev | Next Part: 410711795A *Qty: 1 SPACER $147.67
Location: 7 Prev | Next Part: 410711527A *Qty: 1 BOOT $169.88
Location: 8 Prev | Next Part: 410711123 *Qty: 1 LEVER $1,833.59
Location: 9 Prev | Next Part: N0124101 *Qty: 1 SEAL RING $0.90
Location: 10 Prev | Next Part: 410711189 *Qty: 1 BALL $182.48
Location: 11 Prev | Next Part: 410711111 *Qty: 1 SHIFT LEVER SEAT $495.71
Location: 12 Prev | Next Part: WHT003590 *Qty: 1 PIN $8.71
Location: 13 Prev | Next Part: 410711514 *Qty: 1 FAIRLEAD.DKF6-9-12-3 $0.90
Location: 14 Prev | Next Part: 410711613 *Qty: 1 LH JOINT $212.75
Location: 15 Prev | Next Part: WHT003615 *Qty: 2 RH NUT $0.90
Location: 16 Prev | Next Part: WHT003616 *Qty: 2 LH NUT $5.82
Location: 17 Prev | Next Part: 410711433A *Qty: 1 TIE ROD $86.35
Location: 18 Prev | Next Part: 410711423 *Qty: 1 BOOT $50.64
Location: 19 Prev | Next Part: 410711411 *Qty: 1 BOOT $140.29
Location: 20 Prev | Next Part: WHT003579 *Qty: 2 RETAINING RING $3.60
Location: 21 Prev | Next Part: 410711067 *Qty: 2 BUSHING $79.53
Location: 22 Prev | Next Part: 410711158 *Qty: 1 SHAFT $521.51
Location: 23 Prev | Next Part: N10738501 *Qty: 1 PIN $0.90
Location: 24 Prev | Next Part: 86941521A *Qty: 1 SWITCH $53.81
Location: 25 Prev | Next Part: N0102018 *Qty: 2 SCREW $0.90
Location: 26 Prev | Next Part: 410711599 *Qty: 1 PLATE $23.44
Location: 27 Prev | Next Part: 410711061 *Qty: 1 SHIFT LEVER SUPPORT $537.57
Location: 29 Prev | Next Part: 410711490 *Qty: 2 SPRING $31.48
Location: 30 Prev | Next Part: 410711217A *Qty: 2 DISK $19.42
Location: 31 Prev | Next Part: WHT003576 *Qty: 2 SEAL RING $0.90
Location: 32 Prev | Next Part: 8836302 *Qty: 2 CLAMP $11.57
Location: 33 Prev | Next Part: 410711213 *Qty: 1 BOOT $44.84
Location: 34 Prev | Next Part: 410711267 *Qty: 1 PROTECTION $24.46
Location: 35 Prev | Next Part: 410711369 *Qty: 1 SPRING $129.38
Location: 36 Prev | Next Part: 410711238 *Qty: 1 SPACER $22.61
Location: 37 Prev | Next Part: 410711353 *Qty: 1 INSULATION $2.26
Location: 38 Prev | Next Part: 410711296 *Qty: 1 INSULATION $73.84

* Quantity shown indicates the number of pieces used in the diagram.
