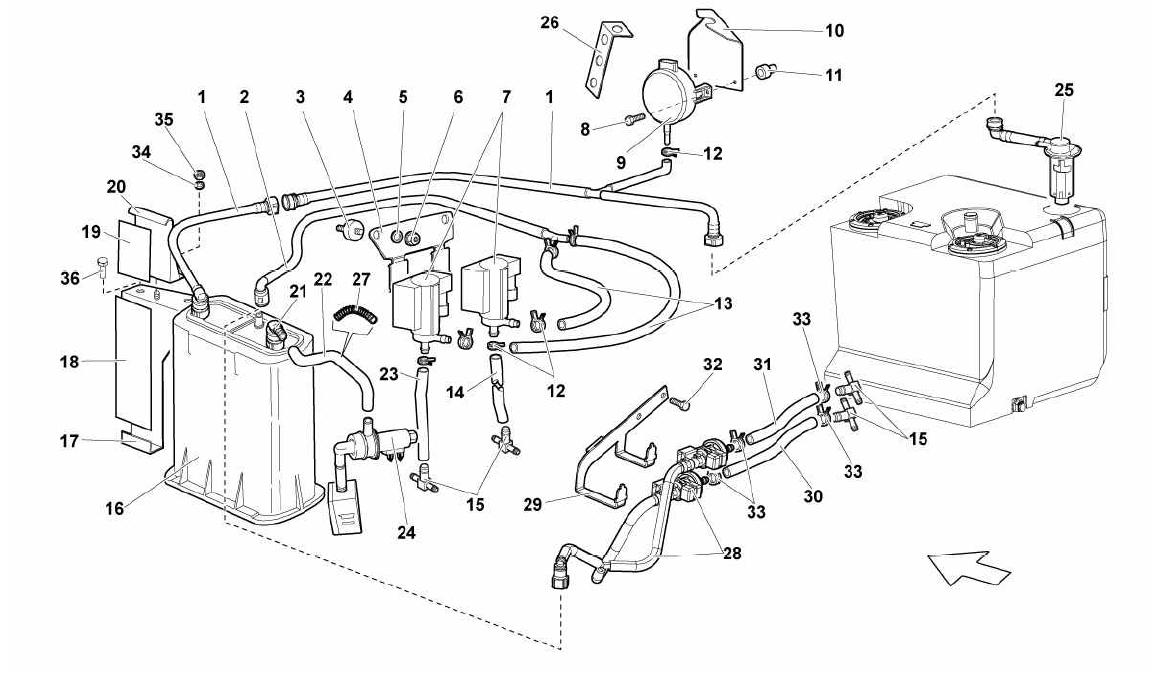

FUEL SYSTEM

Go to Split View

FUEL SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 410201163 *Qty: 1 PIPE $177.25
Location: 2 Prev | Next Part: *Qty: 0 Y-CONNECTOR/CANISTER PIPE ASSEMBLY (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 3 Prev | Next Part: *Qty: 0 FLEXIBLE SUPPORT (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 4 Prev | Next Part: *Qty: 0 SUPPORT (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 5 Prev | Next Part: *Qty: 0 WASHER (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 5 Prev | Next Part: N01152427 *Qty: 4 WASHER $0.90
Location: 6 Prev | Next Part: *Qty: 0 NUT (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 7 Prev | Next Part: *Qty: 0 SOLENOID VALVE (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 8 Prev | Next Part: WHT001389 *Qty: 2 SCREW M3X0-5X16 $0.90
Location: 9 Prev | Next Part: 400906206B *Qty: 1 EVAPORATIVE EMISSION CONTROL PRESSURE SENSOR $694.05
Location: 10 Prev | Next Part: 417906217 *Qty: 1 SUPPORT $49.60
Location: 11 Prev | Next Part: 400906310 *Qty: 2 PUFFER $1.47
Location: 12 Prev | Next Part: *Qty: 0 CLAMP (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 13 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 14 Prev | Next Part: *Qty: 0 PIPE 7-12 (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 15 Prev | Next Part: 410133381B *Qty: 2 CONNECTOR $22.42
Location: 16 Prev | Next Part: 400133563 *Qty: 1 VAPOR FILTER $375.16
Location: 17 Prev | Next Part: 410201898A *Qty: 1 SUPPORT $85.33
Location: 18 Prev | Next Part: 410201119 *Qty: 1 GASKET $1.43
Location: 19 Prev | Next Part: 410201309 *Qty: 1 GASKET $3.92
Location: 20 Prev | Next Part: 410201827A *Qty: 1 SUPPORT $80.17
Location: 21 Prev | Next Part: 410133022A *Qty: 1 CONNECTOR $30.91
Location: 22 Prev | Next Part: 410133739 *Qty: 1 PIPE $45.46
Location: 23 Prev | Next Part: *Qty: 0 PIPE 1-6 (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 24 Prev | Next Part: 400906311 *Qty: 1 CANISTER FILTER VALVE + WIRING HARNESS ASSEMBLY $102.54
Location: 25 Prev | Next Part: 410201521 *Qty: 1 FLOATING VALVE $490.43
Location: 27 Prev | Next Part: 410133524 *Qty: 1 SPRING $31.45
Location: 28 Prev | Next Part: 410133366A *Qty: 1 Y-CONNECTOR/CANISTER PIPE ASSEMBLY (UP TO VIN 7LA____ USE 410906285C) $155.44
Location: 29 Prev | Next Part: 410906285B *Qty: 1 SUPPORT (UP TO VIN 7LA____ USE 410133366A) $43.16
Location: 30 Prev | Next Part: 410133595B *Qty: 1 PIPE 7-12 $54.56
Location: 31 Prev | Next Part: 410133606C *Qty: 1 PIPE 1-6 $65.54
Location: 32 Prev | Next Part: N90833102 *Qty: 2 SCREW M6X10 $0.90
Location: 33 Prev | Next Part: N90686701 *Qty: 4 CLAMP $1.30
Location: 34 Prev | Next Part: N01152427 *Qty: 3 WASHER $0.90
Location: 35 Prev | Next Part: N01118312 *Qty: 1 NUT $0.90
Location: 36 Prev | Next Part: N10546402 *Qty: 2 SCREW M6X16 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
