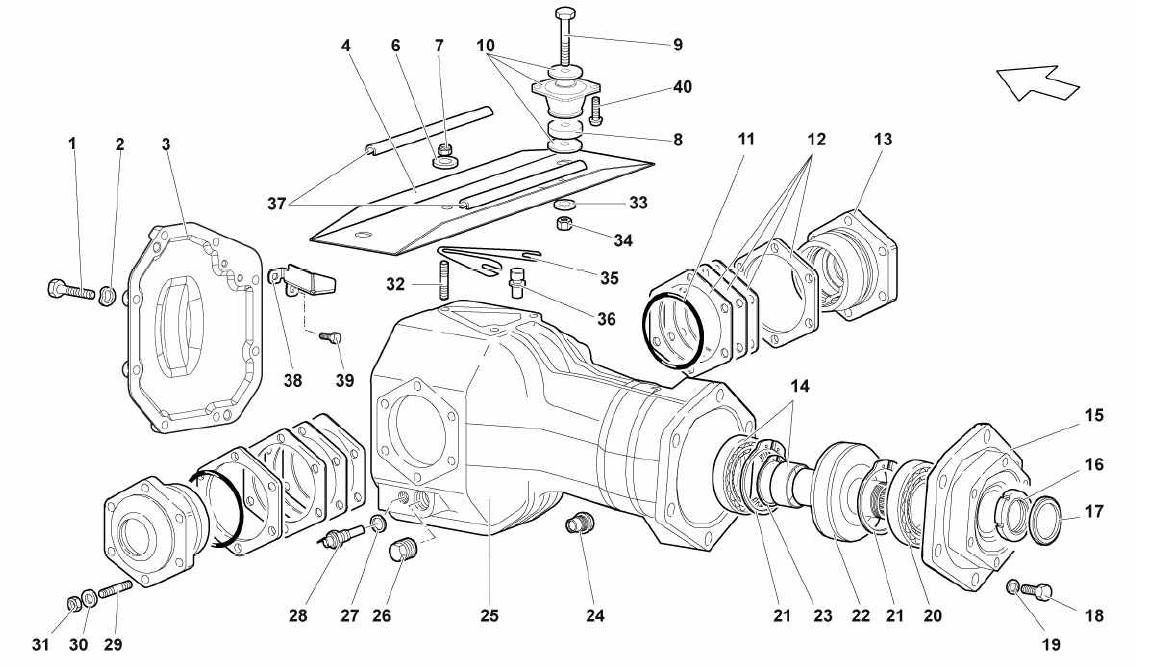

FRONT DIFFERENTIAL CASE

Go to Split View

FRONT DIFFERENTIAL CASE

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N10545402 *Qty: 8 SCREW M8X25.00-S1-N $1.00
Location: 2 Prev | Next Part: WHT001514 *Qty: 8 WASHER $6.16
Location: 3 Prev | Next Part: 1S409410B *Qty: 1 COVER $846.13
Location: 4 Prev | Next Part: 410805153 *Qty: 1 SUPPORT $36.27
Location: 6 Prev | Next Part: WHT001942 *Qty: 3 WASHER $0.90
Location: 7 Prev | Next Part: N01118410 *Qty: 3 NUT M8 $1.18
Location: 8 Prev | Next Part: 410801499 *Qty: 2 SPACER $48.53
Location: 9 Prev | Next Part: WHT002639 *Qty: 2 SCREW M12X1.25X70X30 $4.70
Location: 10 Prev | Next Part: 410805991 *Qty: 2 SUPPORT $115.51
Location: 11 Prev | Next Part: WHT002158 *Qty: 2 SEAL RING $14.24
Location: 12 Prev | Next Part: 1S409448D *Qty: 3 0.050 MM ADJUSTMENT SHIM $15.68
Location: 12 Prev | Next Part: 1S409448C *Qty: 3 0.075 MM ADJUSTMENT SHIM $23.89
Location: 12 Prev | Next Part: 1S409448G *Qty: 1 1.0 MM ADJUSTMENT SHIM $33.89
Location: 12 Prev | Next Part: 1S409448B *Qty: 2 2.0 MM ADJUSTMENT SHIM $51.69
Location: 12 Prev | Next Part: 1S409448H *Qty: 2 2.0 MM ADJUSTMENT SHIM $39.57
Location: 13 Prev | Next Part: 1S409828A *Qty: 2 FLANGE $596.27
Location: 14 Prev | Next Part: 1S409770 *Qty: 1 BEARING $239.83
Location: 15 Prev | Next Part: 1S409129A *Qty: 1 FLANGE $808.44
Location: 16 Prev | Next Part: 1S409761 *Qty: 1 RING NUT $146.52
Location: 17 Prev | Next Part: 1S409887 *Qty: 1 SEAL RING $33.76
Location: 18 Prev | Next Part: N10545402 *Qty: 6 SCREW M8X25.00-S1-N $1.00
Location: 19 Prev | Next Part: WHT001514 *Qty: 6 WASHER $6.16
Location: 20 Prev | Next Part: 1S409561 *Qty: 1 BEARING $38.56
Location: 21 Prev | Next Part: N0123501 *Qty: 2 RETAINING RING $5.43
Location: 22 Prev | Next Part: 1S409435B *Qty: 1 VISCOUS COUPLING $4,308.44
Location: 23 Prev | Next Part: 1S409297 *Qty: 1 SEAL RING $12.85
Location: 24 Prev | Next Part: 1S409965 *Qty: 1 MAGNETIC PLUG $13.91
Location: 26 Prev | Next Part: 86301141A *Qty: 1 PLUG $28.37
Location: 27 Prev | Next Part: N0138492 *Qty: 1 WASHER $0.90
Location: 28 Prev | Next Part: 1S919529 *Qty: 1 SENSOR $190.58
Location: 29 Prev | Next Part: WHT003164 *Qty: 12 STUD BOLT M8X35 $14.94
Location: 30 Prev | Next Part: WHT001514 *Qty: 12 WASHER $6.16
Location: 31 Prev | Next Part: N01100845 *Qty: 12 NUT M8X1-25X6-5 $0.90
Location: 32 Prev | Next Part: WHT003164 *Qty: 3 STUD BOLT M8X35 $14.94
Location: 33 Prev | Next Part: N90840802 *Qty: 2 WASHER $0.90
Location: 34 Prev | Next Part: WHT003355 *Qty: 2 NUT M12X1.25 $4.55
Location: 35 Prev | Next Part: 1S409267F *Qty: 4 SPACER $28.83
Location: 36 Prev | Next Part: 86301047D *Qty: 1 OIL BREATHER PIPE $9.84
Location: 37 Prev | Next Part: 400133338 *Qty: 2 GASKET $31.48
Location: 38 Prev | Next Part: 1S409194 *Qty: 1 BULKHEAD $182.12
Location: 39 Prev | Next Part: N90305304 *Qty: 2 SCREW M6X10.0 $0.90
Location: 40 Prev | Next Part: N90929202 *Qty: 4 SCREW M10X20.0 $2.60

* Quantity shown indicates the number of pieces used in the diagram.
