DASHBOARD AIR PIPE

in cart
Go to Split View

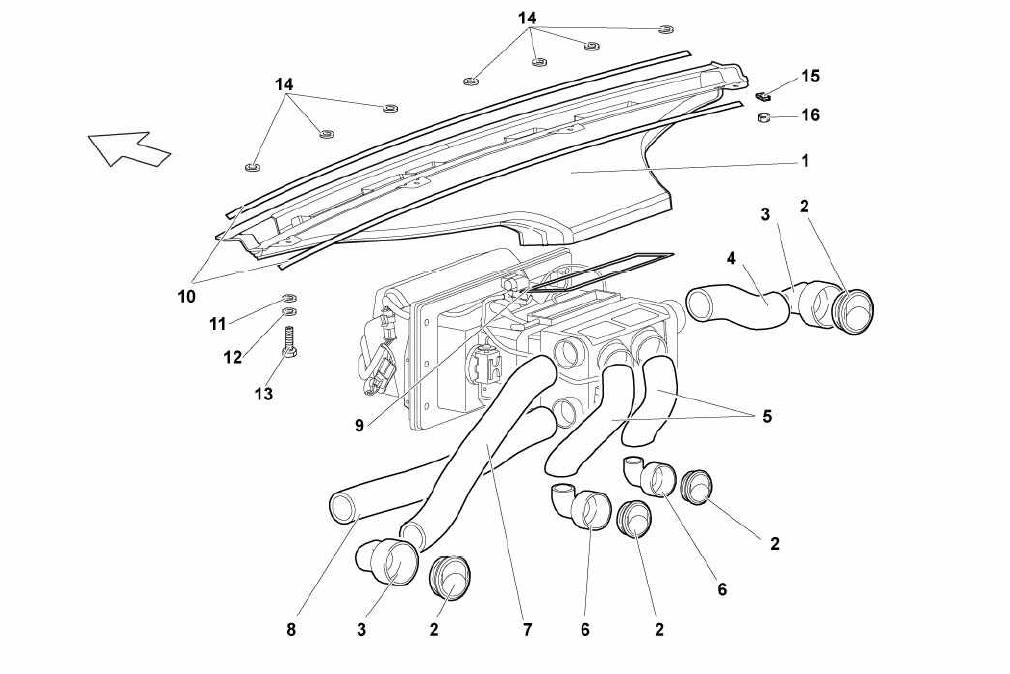

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 413819203 *Qty: 1 DEFROSTER AIR CONVEYOR ASSEMBLY $601.68
Location: 2 Prev | Next Part: 400820901 *Qty: 4 AIR VENT (UNTIL THE VIN 7LA02238) $189.84
Location: 2 Prev | Next Part: 400820901B *Qty: 4 AIR VENT $70.38
Location: 3 Prev | Next Part: 410819077 *Qty: 3 SUPPORT $11.47
Location: 4 Prev | Next Part: 410819320A *Qty: 1 PIPE (400 MM) $32.39
Location: 5 Prev | Next Part: 410819196A *Qty: 2 PIPE $34.20
Location: 6 Prev | Next Part: 410819119 *Qty: 2 CONNECTOR $18.15
Location: 7 Prev | Next Part: 410819318A *Qty: 1 PIPE (600 MM) $44.91
Location: 8 Prev | Next Part: 410819324 *Qty: 1 PIPE $3.29
Location: 9 Prev | Next Part: 410819226 *Qty: 1 GASKET $8.27
Location: 10 Prev | Next Part: 410819018 *Qty: 2 GASKET $5.36
Location: 11 Prev | Next Part: N0115484 *Qty: 2 WASHER $3.00
Location: 12 Prev | Next Part: 8400614 *Qty: 2 WASHER $0.90
Location: 13 Prev | Next Part: N90986803 *Qty: 2 SCREW $0.90
Location: 14 Prev | Next Part: N91109201 *Qty: 7 WASHER $4.80
Location: 15 Prev | Next Part: WHT000916A *Qty: 2 CLIP $10.49
Location: 16 Prev | Next Part: WHT000760 *Qty: 7 NUT M5 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
