AUXILIARY FRAME

Go to Split View

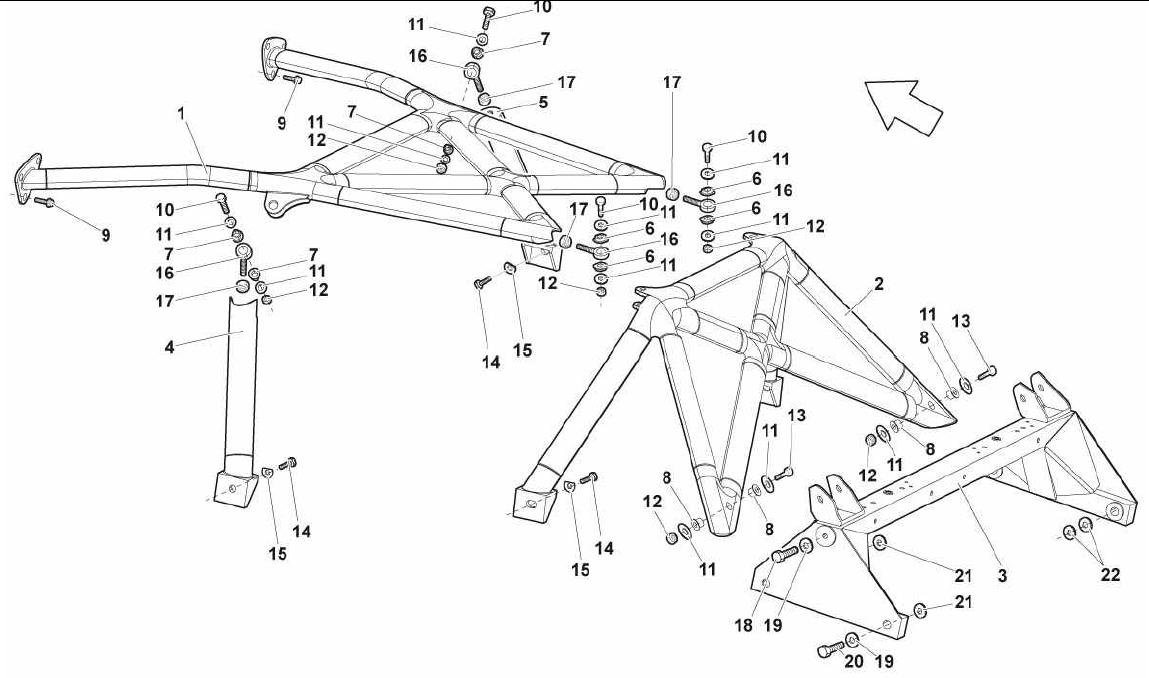

AUXILIARY FRAME

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 417825349A *Qty: 1 STEEL FRAME UPPER ELEMENT $1,187.86
Location: 1 Prev | Next Part: 417825349B *Qty: 1 UPPER ELEMENT OF CARBON FRAME $12,676.60
Location: 2 Prev | Next Part: 417825350B *Qty: 1 REAR ELEMENT OF CARBON FRAME $12,405.81
Location: 2 Prev | Next Part: 417825350A *Qty: 1 STEEL FRAME LOWER ELEMENT $1,438.06
Location: 3 Prev | Next Part: 417813235 *Qty: 1 MOBILE REAR CROSS MEMBER $513.62
Location: 4 Prev | Next Part: 417825431A *Qty: 1 LEFT ARM OF STEEL FRAME $113.71
Location: 4 Prev | Next Part: 417825431B *Qty: 1 LEFT ARM OF CARBON FRAME $2,490.32
Location: 5 Prev | Next Part: 417825432B *Qty: 1 RIGHT ARM OF CARBON FRAME $2,490.32
Location: 5 Prev | Next Part: 417825432A *Qty: 1 RIGHT ARM OF STEEL FRAME $113.71
Location: 6 Prev | Next Part: 417810250 *Qty: 4 BUSHING (FOR CARBON FRAME) $46.42
Location: 7 Prev | Next Part: 417810249 *Qty: 4 BUSHING (FOR CARBON FRAME) $43.28
Location: 8 Prev | Next Part: 417813455 *Qty: 4 BUSHING (FOR CARBON FRAME) $43.28
Location: 9 Prev | Next Part: N10049308 *Qty: 6 SCREW M8X20 $1.00
Location: 10 Prev | Next Part: 41016910 *Qty: 4 SCREW M10X45 $0.90
Location: 11 Prev | Next Part: 41016912 *Qty: 12 WASHER 10.5X24X2 $0.90
Location: 12 Prev | Next Part: 41017007 *Qty: 6 NUT M10 $2.09
Location: 13 Prev | Next Part: 41016975 *Qty: 2 SCREW M10X1.5X50 $0.90
Location: 14 Prev | Next Part: N90166803 *Qty: 4 SCREW M8X28 $0.90
Location: 15 Prev | Next Part: 410810368 *Qty: 4 WASHER (FOR CARBON FRAME) $20.91
Location: 16 Prev | Next Part: 417801931A *Qty: 4 BALL JOINT $116.95
Location: 17 Prev | Next Part: 8201035 *Qty: 4 NUT M10 $1.33
Location: 18 Prev | Next Part: N0147519 *Qty: 2 SCREW $8.78
Location: 19 Prev | Next Part: N90840802 *Qty: 6 WASHER $0.90
Location: 20 Prev | Next Part: N01034510 *Qty: 4 SCREW $1.32
Location: 21 Prev | Next Part: WHT001397 *Qty: 6 WASHER $0.90
Location: 22 Prev | Next Part: 400407749 *Qty: 24 0.5 MM SHIM $2.18
Location: 22 Prev | Next Part: 400407739 *Qty: 24 1.0 MM SHIM $2.45
Location: 22 Prev | Next Part: 400407742 *Qty: 24 2.0 MM SHIM $3.17

* Quantity shown indicates the number of pieces used in the diagram.
