WATER PUMP

in cart
Go to Split View

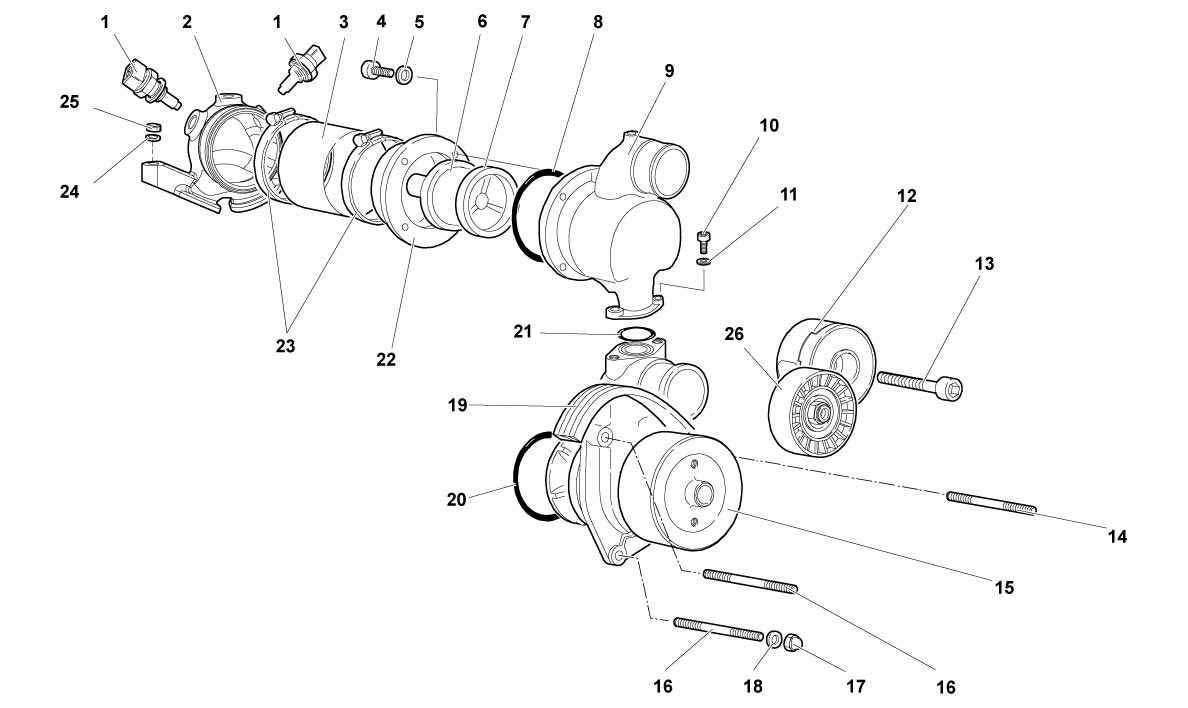

Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L919501A *Qty: 2 WATER TEMPERATURE SENSOR $125.25
Location: 2 Prev | Next Part: 7M121121 *Qty: 1 WATER COLLECTING BODY FROM HEADS $444.36
Location: 3 Prev | Next Part: 7M121118 *Qty: 1 SLEEVE $45.46
Location: 4 Prev | Next Part: 8700614 *Qty: 4 SCREW $0.90
Location: 5 Prev | Next Part: WHT001197 *Qty: 4 WASHER $0.90
Location: 6 Prev | Next Part: 7M121113 *Qty: 1 WATER THERMOSTAT $193.64
Location: 7 Prev | Next Part: 7M121041 *Qty: 1 RING $35.83
Location: 8 Prev | Next Part: 8607502 *Qty: 1 SEAL RING $3.53
Location: 9 Prev | Next Part: 7M121115 *Qty: 1 WATER THERMOSTAT BODY $497.68
Location: 10 Prev | Next Part: 8100601 *Qty: 2 SCREW $0.90
Location: 11 Prev | Next Part: WHT001197 *Qty: 2 WASHER $0.90
Location: 12 Prev | Next Part: 7M109485 *Qty: 1 AUTOMATIC TIGHTENER (DAYCO) $559.18
Location: 13 Prev | Next Part: 8701008 *Qty: 1 SCREW $3.28
Location: 14 Prev | Next Part: 8300833 *Qty: 1 STUD BOLT $6.15
Location: 15 Prev | Next Part: 7M121011 *Qty: 1 WATER PUMP $4,595.67
Location: 16 Prev | Next Part: 8300809 *Qty: 2 STUD BOLT $8.50
Location: 17 Prev | Next Part: 8200809 *Qty: 3 NUT $1.91
Location: 18 Prev | Next Part: 8400816 *Qty: 3 WASHER $0.90
Location: 19 Prev | Next Part: 7M903137 *Qty: 1 BELT $139.30
Location: 20 Prev | Next Part: WHT003018 *Qty: 1 SEAL RING $13.44
Location: 21 Prev | Next Part: WHT003062 *Qty: 1 SEAL RING $3.00
Location: 22 Prev | Next Part: 7M121147 *Qty: 1 CONNECTOR $353.90
Location: 23 Prev | Next Part: 8836001 *Qty: 2 CLAMP $7.29
Location: 24 Prev | Next Part: WHT001197 *Qty: 2 WASHER $0.90
Location: 25 Prev | Next Part: 8200612 *Qty: 2 NUT $1.05
Location: 26 Prev | Next Part: 7M109477 *Qty: 1 GUIDE PULLEY $284.45

* Quantity shown indicates the number of pieces used in the diagram.
