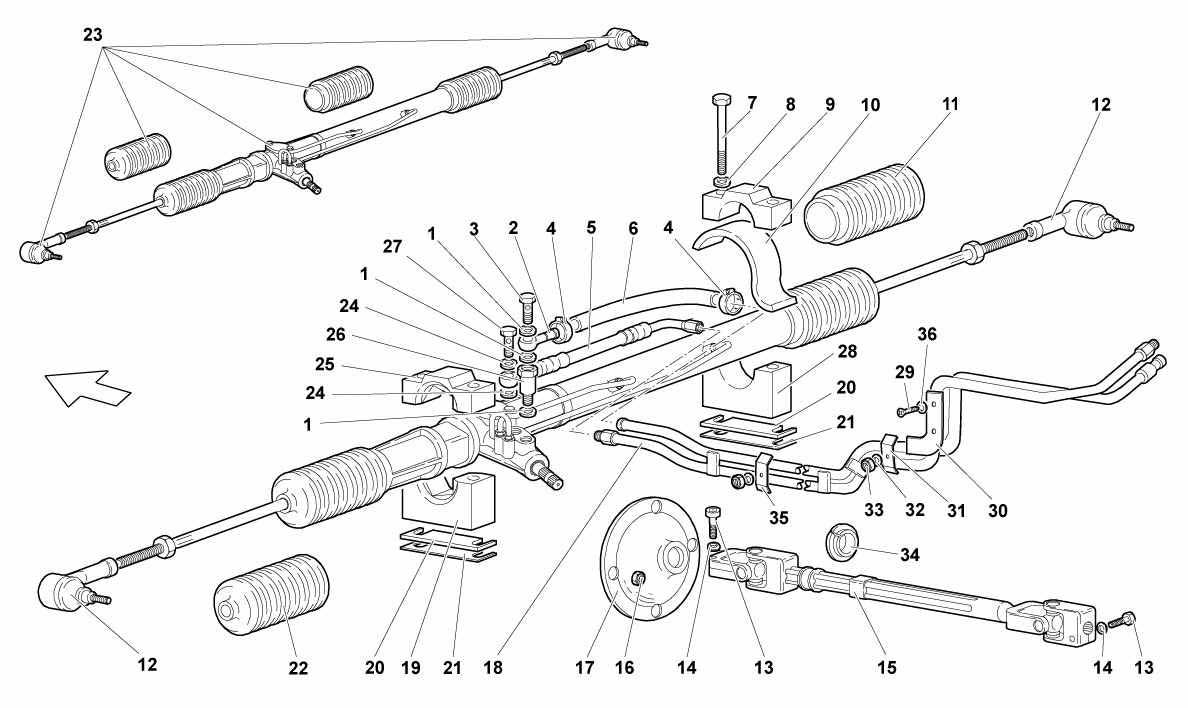

STEERING

Go to Split View

STEERING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: N0138481 *Qty: 3 WASHER Unavailable
Location: 2 Prev | Next Part: 413422247A *Qty: 1 CONNECTOR Unavailable
Location: 3 Prev | Next Part: 400422279A *Qty: 1 SCREW WITH HOLE Unavailable
Location: 4 Prev | Next Part: N0245097 *Qty: 2 CLAMP Unavailable
Location: 5 Prev | Next Part: 413422895A *Qty: 1 PIPE Unavailable
Location: 6 Prev | Next Part: 413422898 *Qty: 1 PIPE Unavailable
Location: 7 Prev | Next Part: 8101076 *Qty: 4 SCREW Unavailable
Location: 8 Prev | Next Part: N0122115 *Qty: 4 WASHER Unavailable
Location: 9 Prev | Next Part: 4333518 *Qty: 1 U-BOLT Unavailable
Location: 10 Prev | Next Part: 400422850 *Qty: 1 RUBBER SHIM Unavailable
Location: 11 Prev | Next Part: 4335023 *Qty: 1 BOOT Unavailable
Location: 12 Prev | Next Part: 4334555 *Qty: 1 BALL JOINT COUPLING Superseded
Location: 13 Prev | Next Part: 8700843 *Qty: 2 SCREW Unavailable
Location: 15 Prev | Next Part: 410419515 *Qty: 1 JOINTED SHAFT Unavailable
Location: 16 Prev | Next Part: 8200604 *Qty: 4 NUT Unavailable
Location: 17 Prev | Next Part: 410422326 *Qty: 1 GASKET Unavailable
Location: 18 Prev | Next Part: 40008605 *Qty: 1 PIPE (MANUAL GEARBOX) Unavailable
Location: 18 Prev | Next Part: 413422867C *Qty: 1 PIPE (E-GEAR) Unavailable
Location: 19 Prev | Next Part: 4333656 *Qty: 1 SUPPORT Unavailable
Location: 20 Prev | Next Part: 4333658 *Qty: 11 1.0 MM ADJUSTMENT SHIM Unavailable
Location: 21 Prev | Next Part: 4333657 *Qty: 4 0.5 MM ADJUSTMENT SHIM Unavailable
Location: 22 Prev | Next Part: 4335023 *Qty: 1 BOOT Unavailable
Location: 23 Prev | Next Part: 413422061B *Qty: 1 POWER STEERING RACK Unavailable
Location: 23 Prev | Next Part: 43004834 *Qty: 1 POWER STEERING RACK Unavailable
Location: 24 Prev | Next Part: N0138492 *Qty: 2 WASHER Unavailable
Location: 25 Prev | Next Part: 4331582 *Qty: 1 U-BOLT Unavailable
Location: 26 Prev | Next Part: 410422293 *Qty: 1 CONNECTOR Unavailable
Location: 27 Prev | Next Part: 400422269A *Qty: 1 SCREW WITH HOLE Unavailable
Location: 28 Prev | Next Part: 4333655 *Qty: 1 SUPPORT Unavailable
Location: 29 Prev | Next Part: 8100505 *Qty: 2 SCREW Unavailable
Location: 30 Prev | Next Part: 410422078 *Qty: 1 SHEET Unavailable
Location: 31 Prev | Next Part: 410422477 *Qty: 1 PLATE Unavailable
Location: 32 Prev | Next Part: N10612001 *Qty: 2 WASHER Unavailable
Location: 33 Prev | Next Part: 8200503 *Qty: 2 NUT Unavailable
Location: 34 Prev | Next Part: 410419548 *Qty: 1 BUSHING Unavailable
Location: 35 Prev | Next Part: 410422479 *Qty: 1 PLATE Unavailable
Location: 36 Prev | Next Part: 8400509 *Qty: 2 WASHER Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
