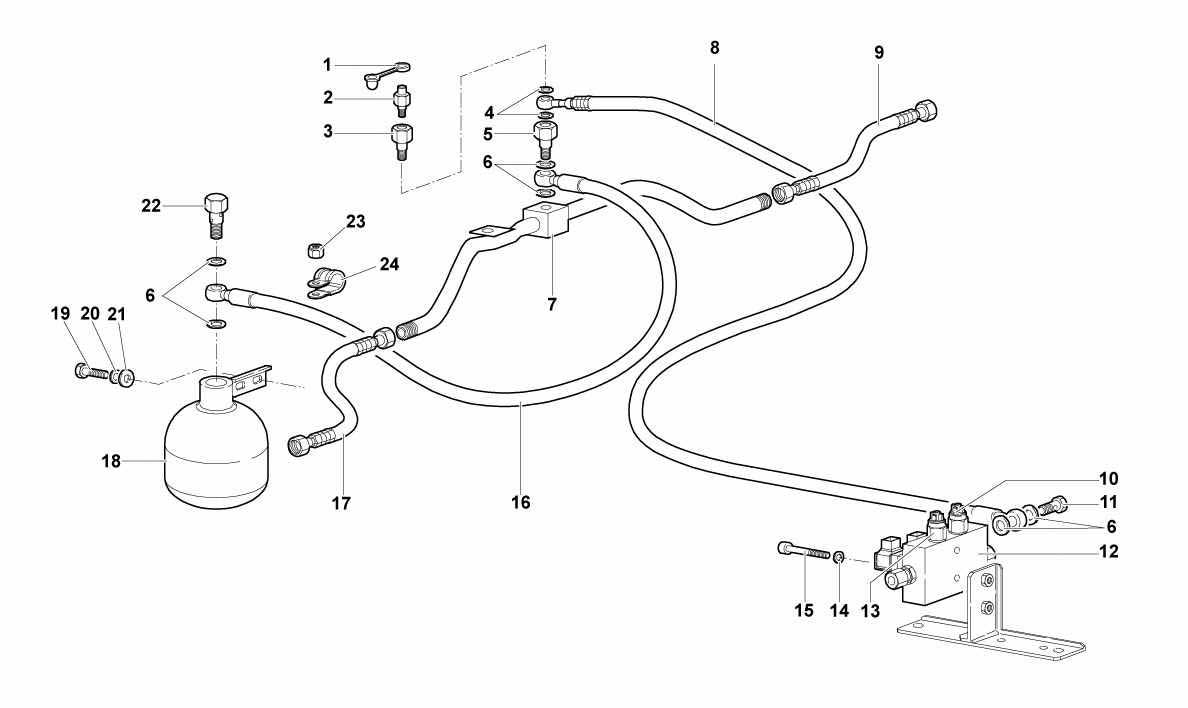

LIFTING SYSTEM

Go to Split View

LIFTING SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 5136498 *Qty: 1 PLUG Unavailable
Location: 2 Prev | Next Part: 5136497 *Qty: 1 BLEEDER SCWEW Unavailable
Location: 3 Prev | Next Part: 5136496 *Qty: 1 CONNECTOR Unavailable
Location: 4 Prev | Next Part: 400616817A *Qty: 2 WASHER Unavailable
Location: 5 Prev | Next Part: 51006838 *Qty: 1 SCREW WITH HOLE Unavailable
Location: 6 Prev | Next Part: 51006839 *Qty: 2 WASHER Unavailable
Location: 7 Prev | Next Part: 51006832 *Qty: 1 PIPE Unavailable
Location: 8 Prev | Next Part: 51010654 *Qty: 1 PIPE Unavailable
Location: 9 Prev | Next Part: 51006813 *Qty: 1 RH PIPE Unavailable
Location: 10 Prev | Next Part: 51009364 *Qty: 1 MAXIMUM PRESSURE GAUGE Unavailable
Location: 11 Prev | Next Part: 5133245 *Qty: 1 SCREW WITH HOLE Unavailable
Location: 12 Prev | Next Part: 5134571 *Qty: 1 SOLENOID VALVE Unavailable
Location: 13 Prev | Next Part: 51014806 *Qty: 1 MINIMUM PRESSURE GAUGE Unavailable
Location: 14 Prev | Next Part: 8400607 *Qty: 2 WASHER Unavailable
Location: 15 Prev | Next Part: 8100618 *Qty: 2 SCREW Unavailable
Location: 16 Prev | Next Part: 51006814 *Qty: 1 PIPE Unavailable
Location: 17 Prev | Next Part: 51006831 *Qty: 1 PIPE Unavailable
Location: 18 Prev | Next Part: 51006837 *Qty: 1 TANK Unavailable
Location: 19 Prev | Next Part: 8100618 *Qty: 2 SCREW Unavailable
Location: 20 Prev | Next Part: 8410601 *Qty: 2 WASHER Unavailable
Location: 21 Prev | Next Part: 8400607 *Qty: 2 WASHER Unavailable
Location: 22 Prev | Next Part: 400422269A *Qty: 1 SCREW WITH HOLE Unavailable
Location: 23 Prev | Next Part: N01118312 *Qty: 1 NUT M6 Unavailable
Location: 24 Prev | Next Part: 8831515 *Qty: 1 CLAMP Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
